Technical Data

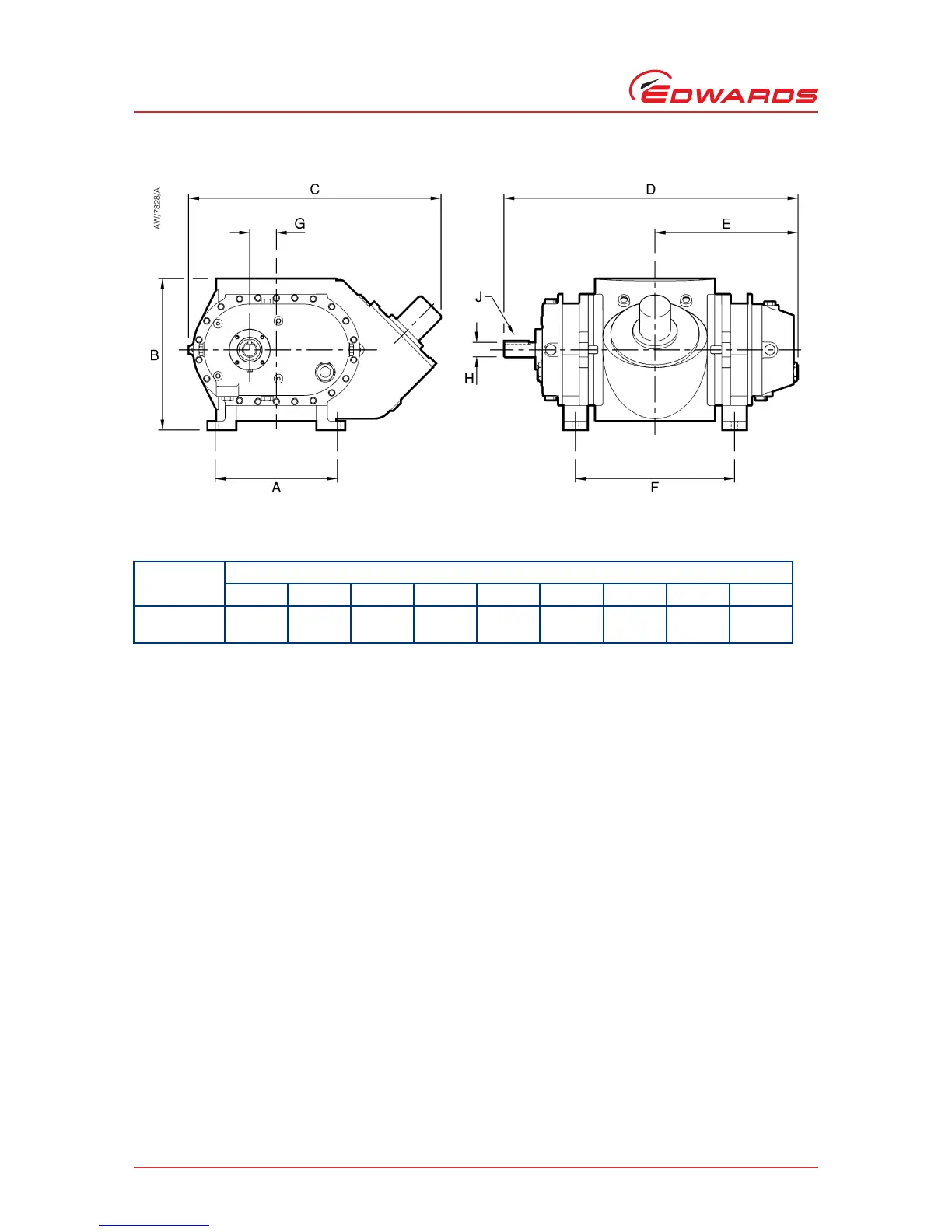

Figure 11 - Bareshaft V (vertical) booster pump with bypass valve dimensions
Pump
Dimensions: mm (inch)
ABCDEFGHJ
900-61B-MVR 350
(13.8)
431
(17.0)
718
(28.3)
843
(33.2)
411
(16.2)
454
(17.9)
76
(3.0)
43
(1.7)
*
