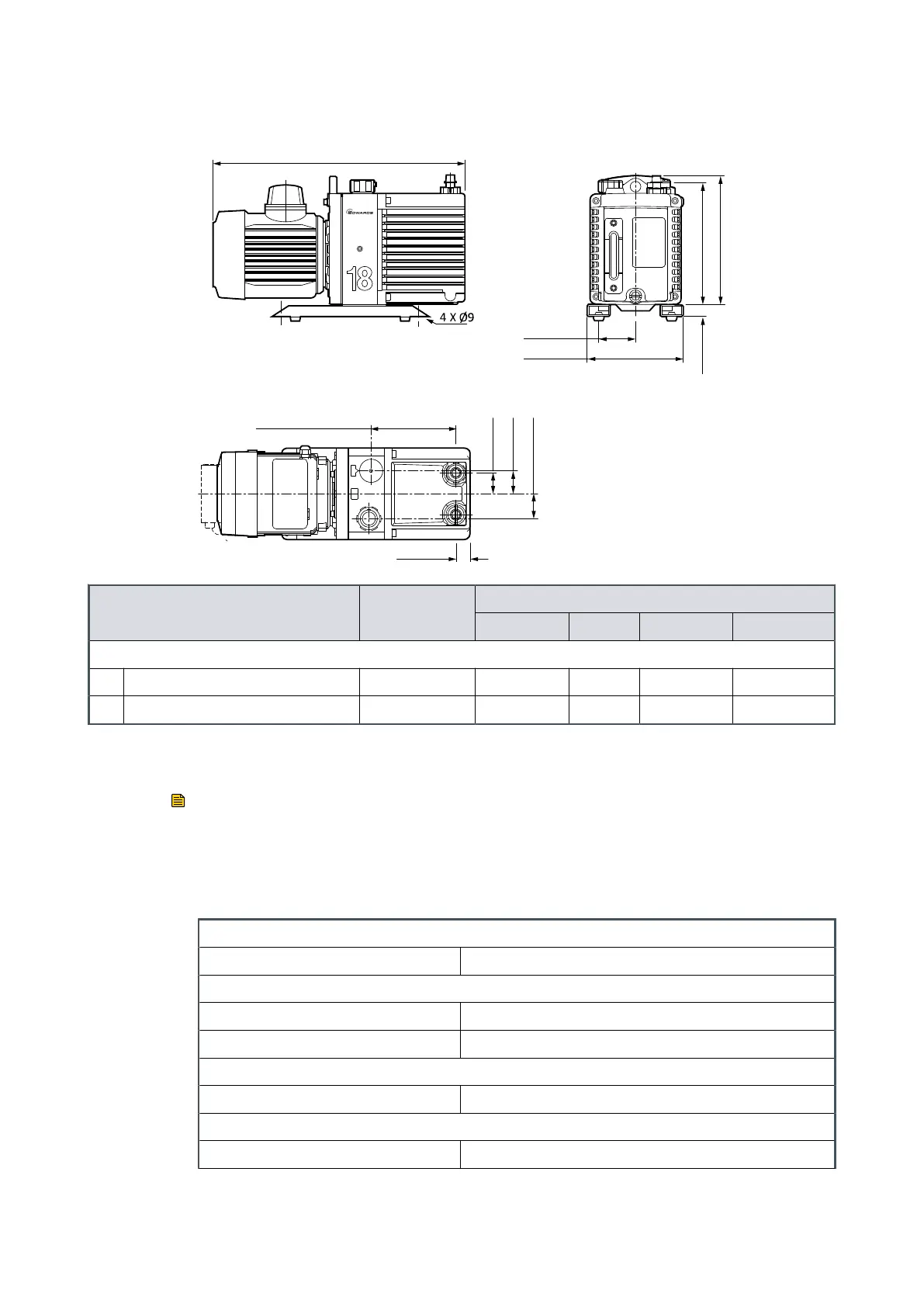

Figure 3 Three-phase motors: Dimensions mm (inches)
162 (6.38)
75 (2.95)
172 (6.77)
20 (0.79)
227 (8.94)
A
159 (6.26) - E1M18
207 (8.15) - E2M18
27 (1.06)
39 (1.54)
43 (1.69)
47 (1.85)
Pump item number
Hz
Dimensions (mm)
A B C D
Three-phase motors
A34310940 50/60 474 - - -
A36310940 50/60 520 - - -
3.4 Lubricaon data
Note:
Manufacturers Material Safety Data Sheets for the oils specied below are available
upon request.
Table 4
Lubricaon data
Hydrocarbon pumps:
Recommended oil* Ultragrade 19
Maximum oil capacity
E1M18 1.4 litres
E2M18 1.05 litres
PFPE-prepared EM pumps:
Recommended oil Krytox 1506 or Fomblin 06/6
Maximum oil capacity
E1M18 1.4 litres
Page 16
A34310880_T - Technical data
