INTRODUCTION

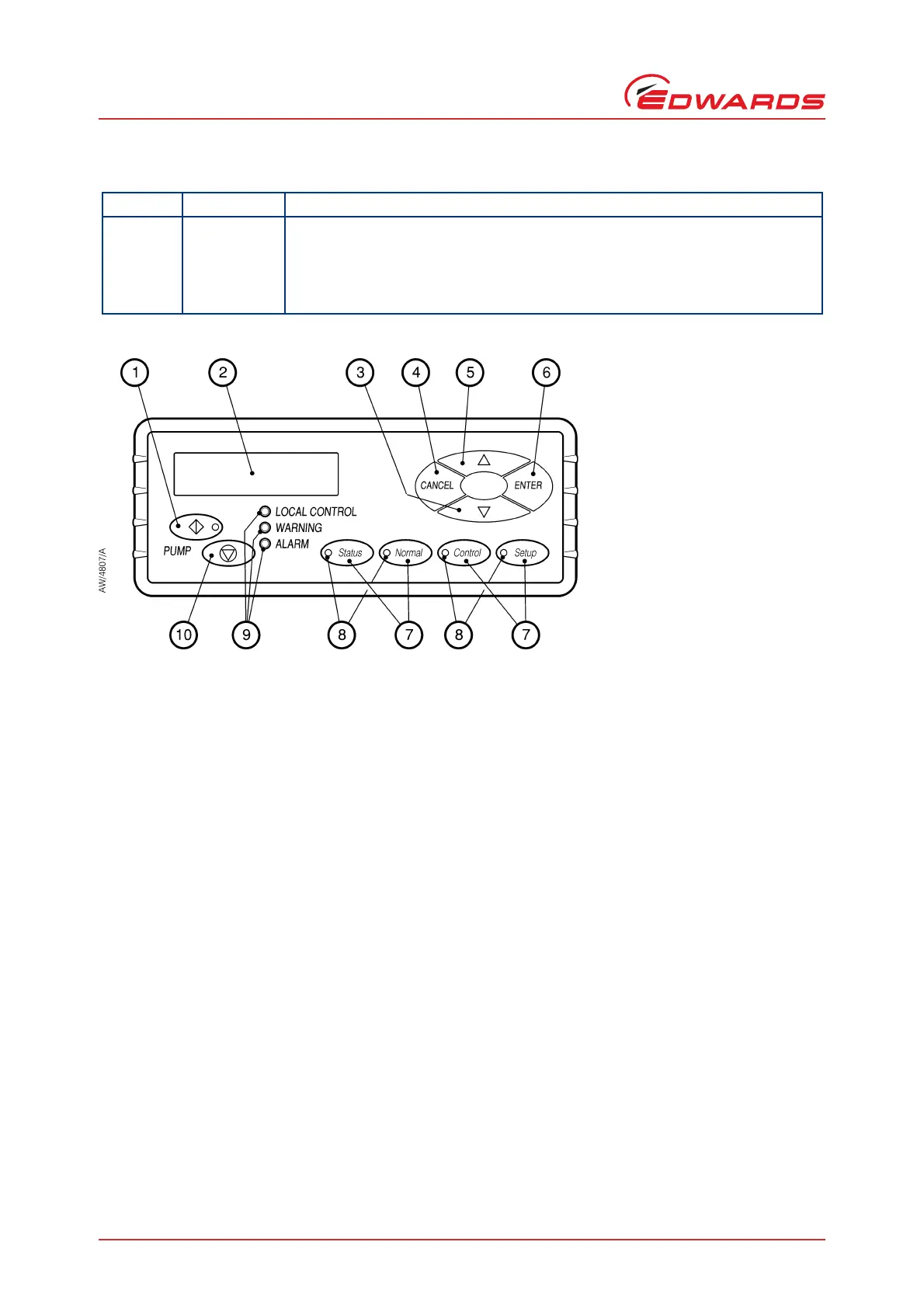

Figure 7 - Controls and indicatorss on the PDT
Table 3 - Explanation of LED’s
LED LED Colour Meaning
ALARM Red This LED shows when an alarm condition exists.
WARNING Amber This LED shows when a warning condition exists.
LOCAL
CONTROL
Green This LED is on when the Pump Display Terminal has control of the iF system.
1. On button
2. Display
3. Down button
4. CANCEL button
5. Up button
6. ENTER button
7. Menu buttons
8. Menu selected LEDs
9. Status LEDs
10.Off button
