INSTALLATION

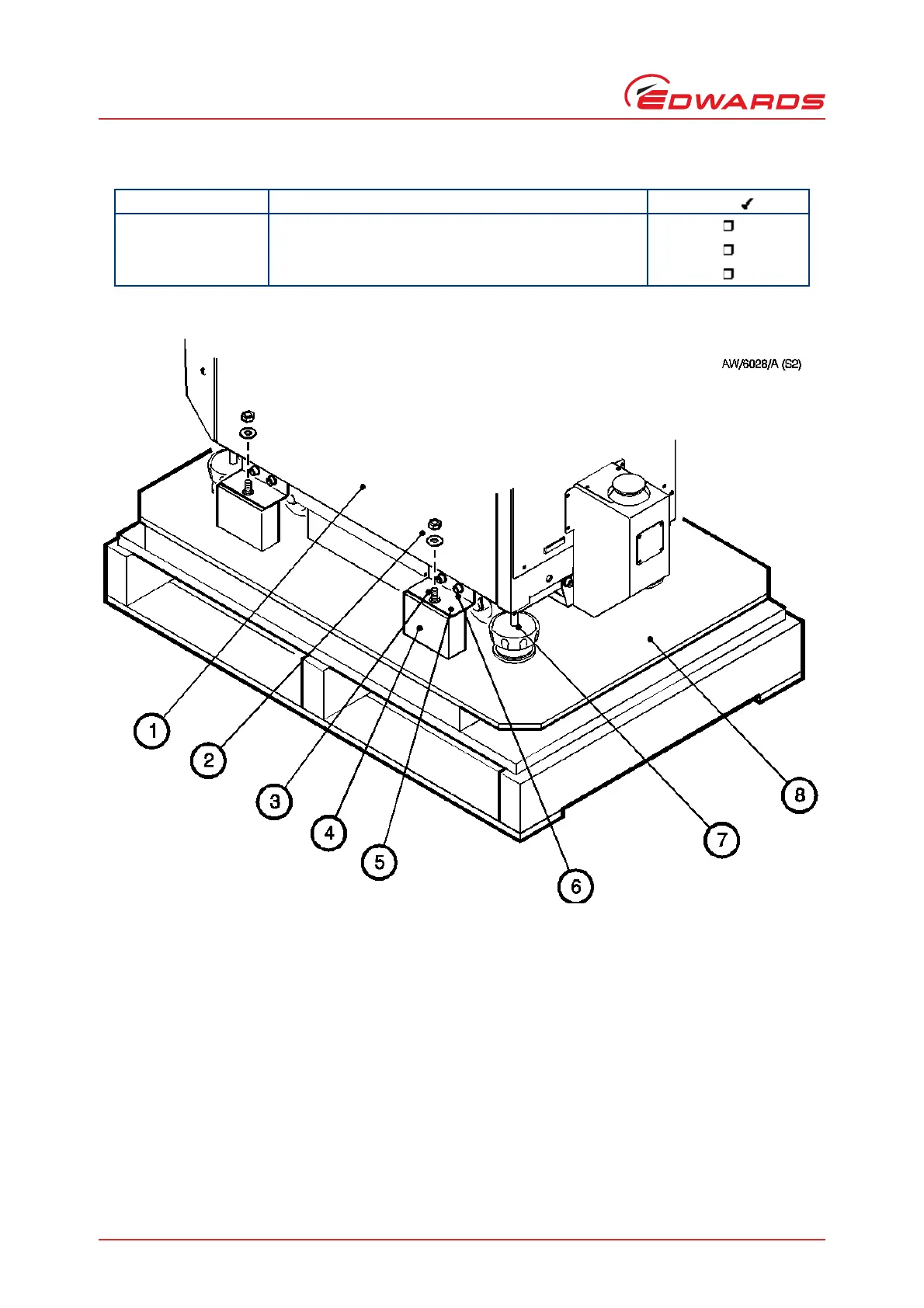

Figure 14 - Remove the iF system from the pallet
1Nw40 clamp
1 Nitrogen pipeline fitting
1 Module connector terminator plug
Table 12 - Checklist of components
Quantity Description Check( )
1. iF system
2. Nut and washer
3. Stud
4. Block (4)
5. Anchor bracket (4)
6. Cap-head screw and washer
7. Levelling foot
8. Pallet
