Technical data
2.3 Loading

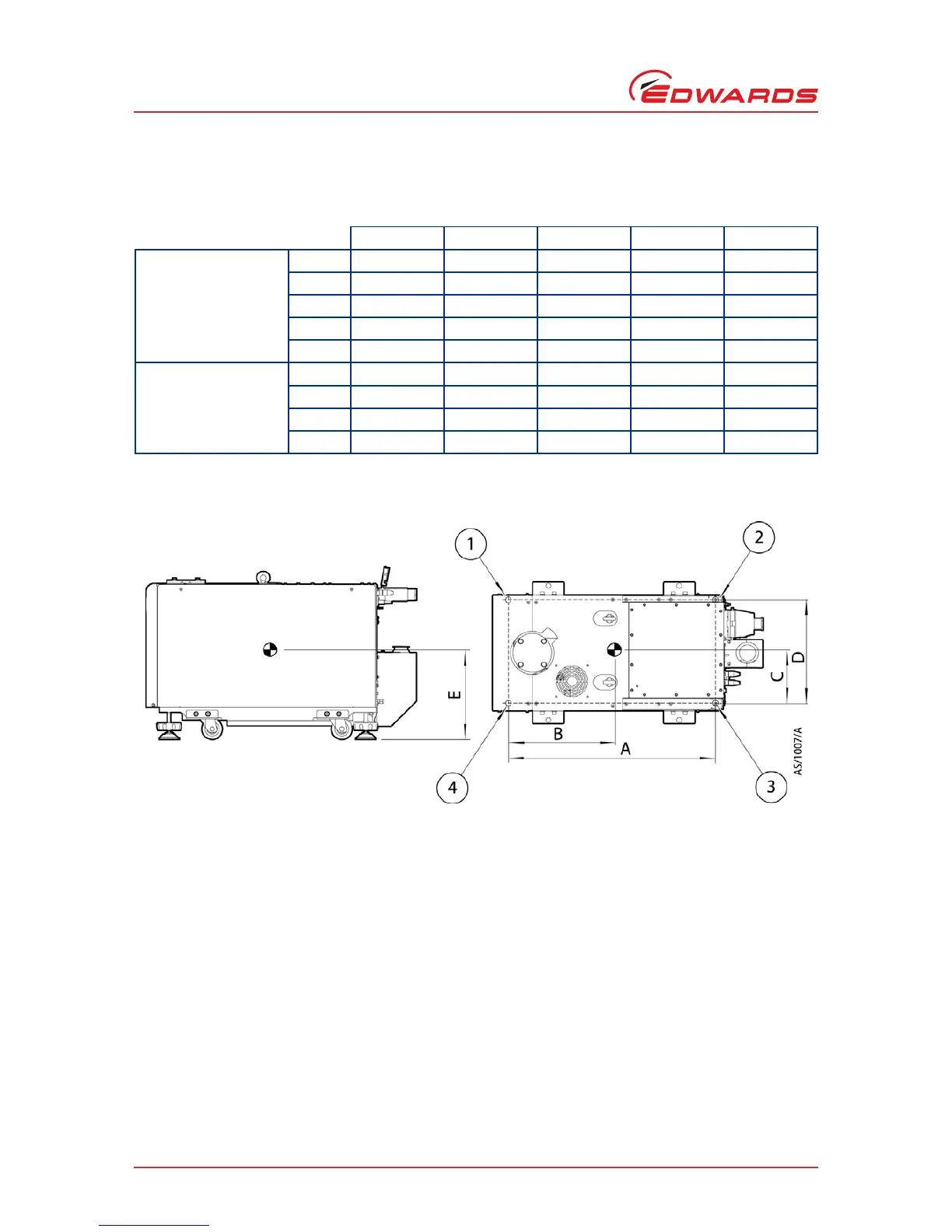

Figure 7 - Centre of gravity and levelling foot loads
Table 4 - Centre of gravity and levelling foot loads (Refer to Figure 7)
iH80 iH600 iH1000 iH160 iH1800
Centre of gravity A 661 661 661 661 661
B 322 309 314 304 325
C 159 163 163 163 198
D 302 302 302 302 382
E 293 466 481 364 528
Levelling loads 1 75 103 118 70 133
26611911565125
351759050113
44811810760132
