A590-00-880 I
ssue D
Page 20
© Edwards Limi
ted 2008. All r
ights reserve
d.
Edwards and the Edward
s logo a
re trademarks of Edwards Limited.
Installation

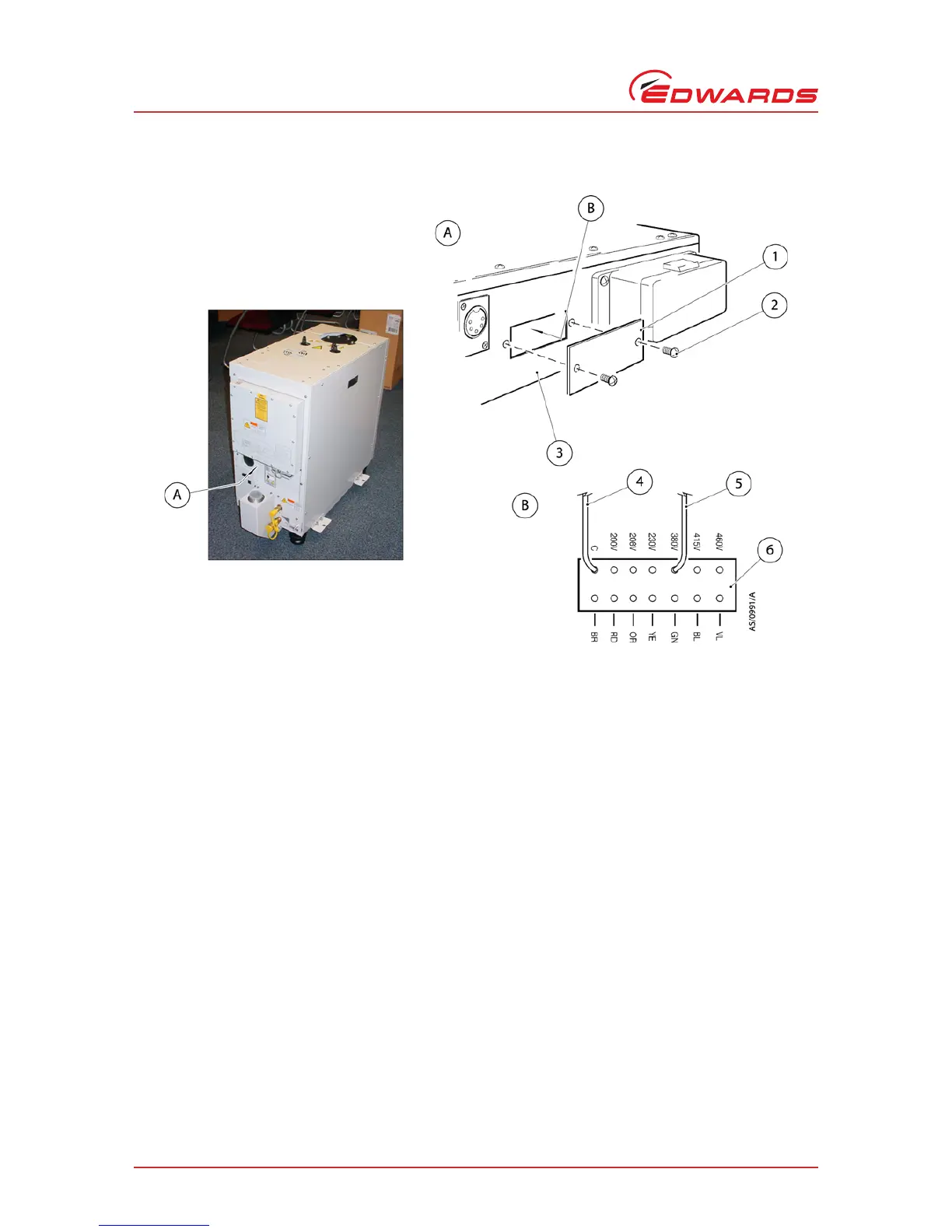

Figure 9 - Reconfigure the iH sy
stem for your electrical supply
1.
Cover
2.
Screw (2 off)
3.
Electrics box
4.
Common cable
5.
V
oltage select cable
6.
T
erminal block
25
27
Table of Contents
Default Chapter
5
Table of Contents
5
Introduction
7
Scope and Definitions
7
Applications
8
Ih Applications Chart
8
Description
9
The Ih HTX System
9
The Ih NRV Systems
9
Priority of Control
9
The Controls/Connectors on Rear of Pump
10
The Controls/Connectors on Electrics Box
10
Top View of Pump
11
The Front Panel Controls
11
Technical Data
13
General Technical Data
13
Electrical Data
15
Loading
16
Centre of Gravity and Levelling Foot Loads
16
Connections
17
General Data
18
Installation
19
Locate the Dry Pumping System
20
System Arrangement to Reduce Effective Footprint (if Required)
20
Lubrication
21
Connect the Dry Pumping System to Your Vacuum/Exhaust System
21
Connect the Ih1800Htx Exhaust TMS
22
Connect to Your Factory Extraction System (Optional)
22
Connect the Nitrogen Supply
23
Flammable/Pyrophoric Materials
23
Gas Purges
24
Leak-Test the System
24
Electrical Supply
24
Reconfigure the Ih System for Your Electrical Supply (if Necessary)
25
Reconfigure the Ih System for Your Electrical Supply (Ih80/600 Only)
25
Reconfigure the Ih System for Your Electrical Supply
25
Reconfigure the Ih System for Your Electrical Supply
26
Connect the Electrical Supply
27
Reconfigure the Pump-Motor Terminal-Boxes (Ih80/Ih600 Only)
27
Connect an Additional RF Earth (Ground) (Optional)
29
Connect to Your Emergency Stop Circuit
29
Connect the Electrical Supply Cable to the Connector Mating-Half
29
Connect the Cooling-Water Hoses
30
Accessories
30
Commission the System
31
Install Additional Safety Equipment
32
Operation
33
Start-Up
33
Status Indicators
34
Manual Shut-Down
34
Automatic Shut-Down
35
Unplanned Shutdown and Alarms
35
Emergency Stop
36
Restart the Pump after an Emergency Stop or Automatic Shut-Down
36
Single Equipment Monitor (SEM)
36
Maintenance
37
Safety and Maintenance Frequency
37
Relocate the System for Maintenance
38
Cleaning the Pump
39
General Maintenance
39
Replace a Fuse
40
Inspect the Connections, Pipelines, Cables and Fittings
40
Transportation, Storage and Disposal
41
Transportation
41
Storage
41
Disposal
41
Service, Spares and Accessories
43
Introduction
43
Service
43
Ordering Accessories
43
Accessories
43
