✓ Switch on all circuit breakers and residual current devices in the Charging Station:
CE MARKED UNITS
Circuit breakers: Q1
Q6 (heating protection)
Q2/ Q4 (for 2
nd
output) - only for 16A outputs
Q3/ Q5 (for 2
nd
output) - only for 32A outputs
Q7 (for 3
rd
output, only 2,3kVA)/ Q8 (for 4
th
output, only 2,3kVA)
Residual current devices: S2/ S3 (for 2
nd
output)

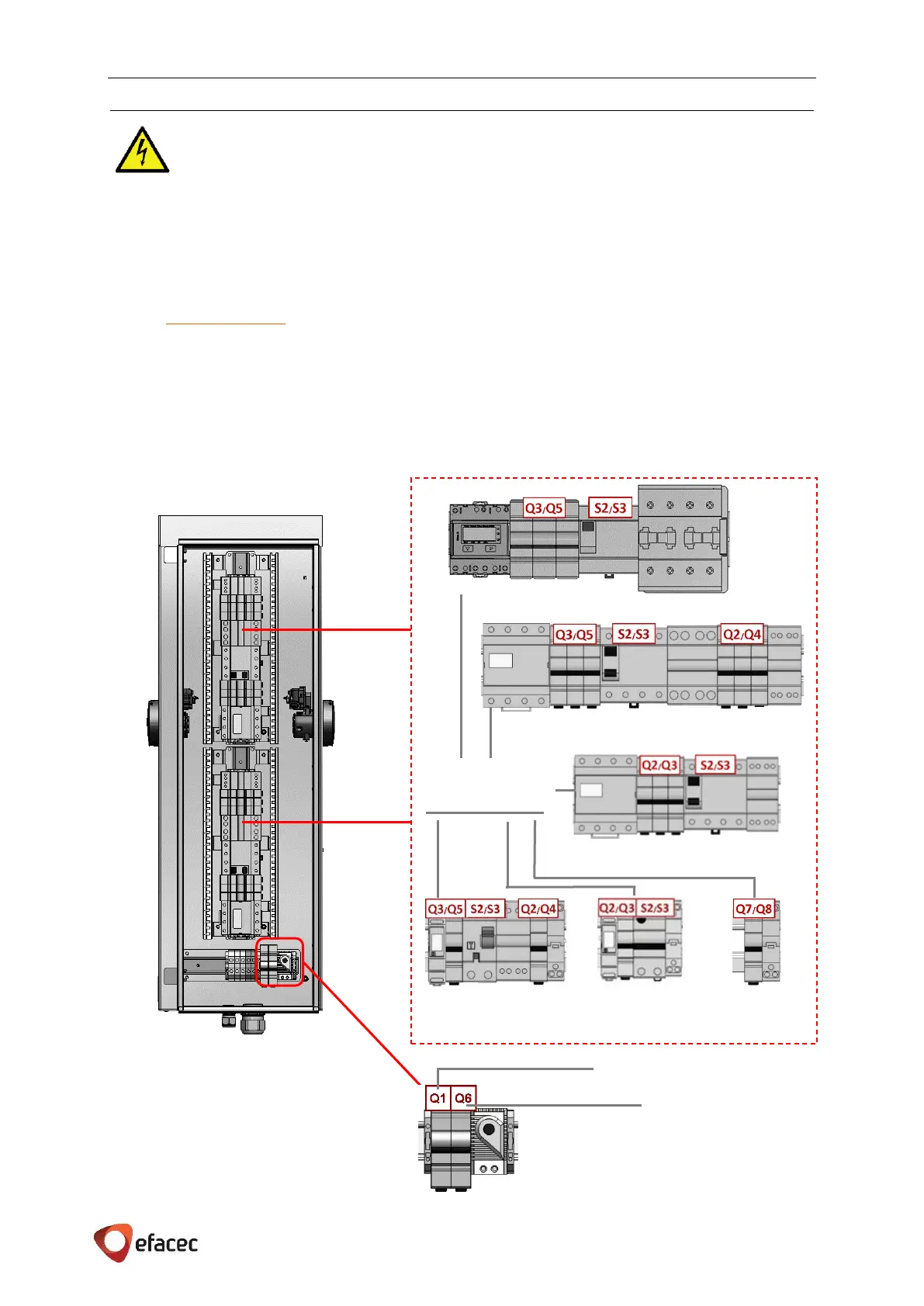

Figure 20 - Central Unit CE - Interior front
view
AC outputs
Figure 26 – input rail
Electronics Power Supply
Heating Protection
2
nd
output
1
st
output
Figure 23 – 7,4kVA output rail
Figure 24 – 3,7kVA
output rail
Figure 25 –
Additional 2,3kVA
output rail
Figure 22 – 11kVA output rail
Figure 21 – 22kVA output rail
AC output –
Power main input
Figure 19 – 43kVA output rail
