E F A P O W E R E V - PC - I N S T A L L A T I O N A N D U S E R M A N U A L
23 | 37
GB MARKED UNITS
Circuit breakers: Q1
Q6 (heating protection)
Q2/ Q4 (for 2
nd
output)
Q3/ Q5 (for 2
nd
output) - only for 32A outputs
Residual current devices: S2/ S3 (for 2
nd
output)

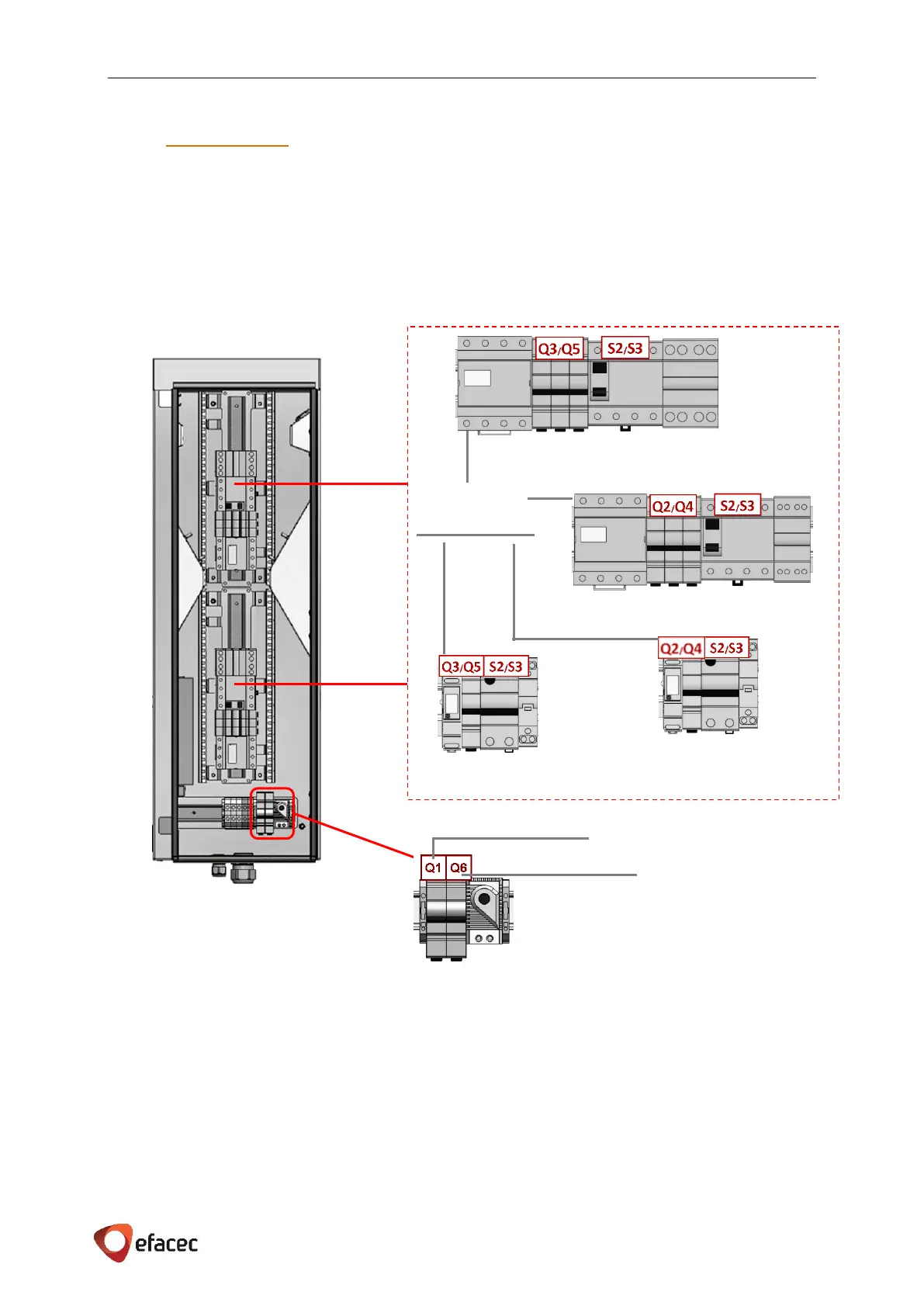

Figure 27 - Central Unit GB - Interior
front view
Figure 28 – 22kVA output rail
Figure 29 – 11kVA output rail
Figure 30 – 7,4kVA
output rail
Figure 31 – 3,7kVA
output rail
Figure 32 – input rail
Electronics Power Supply
Heating Protection
AC output –
Power main input
AC outputs
2
nd
output
1
st
output
