E F A P O W E R E V - PC - I N S T A L L A T I O N A N D U S E R M A N U A L
24 | 37
ETL MARKED UNITS
Circuit breakers: Q1
Q6 (heating protection)
Q3/ Q5 (for 2
nd
output)
Circuit Interrupting Device: S4/ S5 (for 2
nd
output)

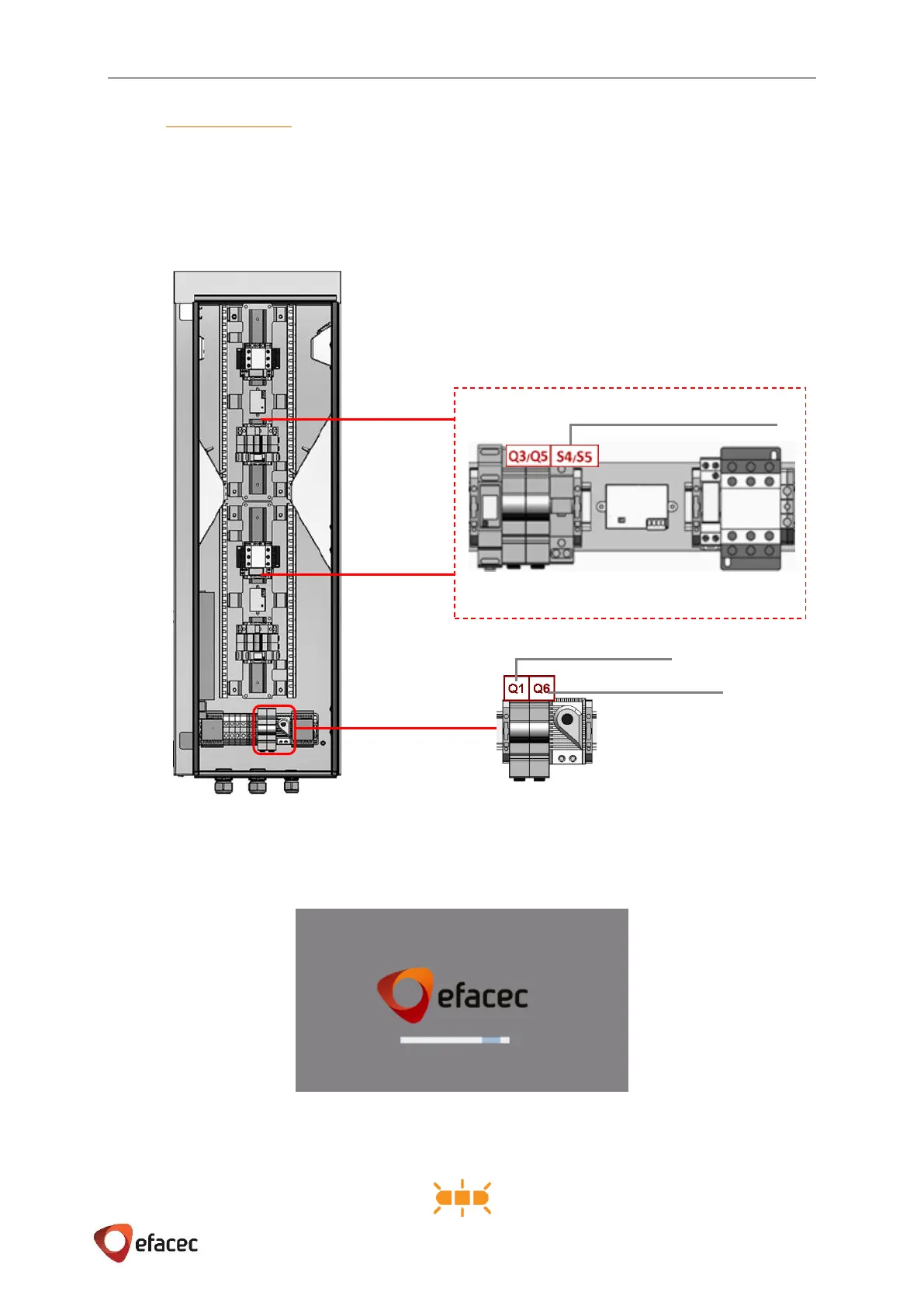

Figure 34 - 7,2 kVA output rail
After connecting the charging station for the first time, the HMI display should show the following message:
… and the LED(s) shall start blinking amber:
Figure 33 - Central Unit UL - Interior
front view
2
nd
output
1
st
output
AC output – Power main input
Figure 35 – input rail
Electronics Power Supply
Heating Protection
