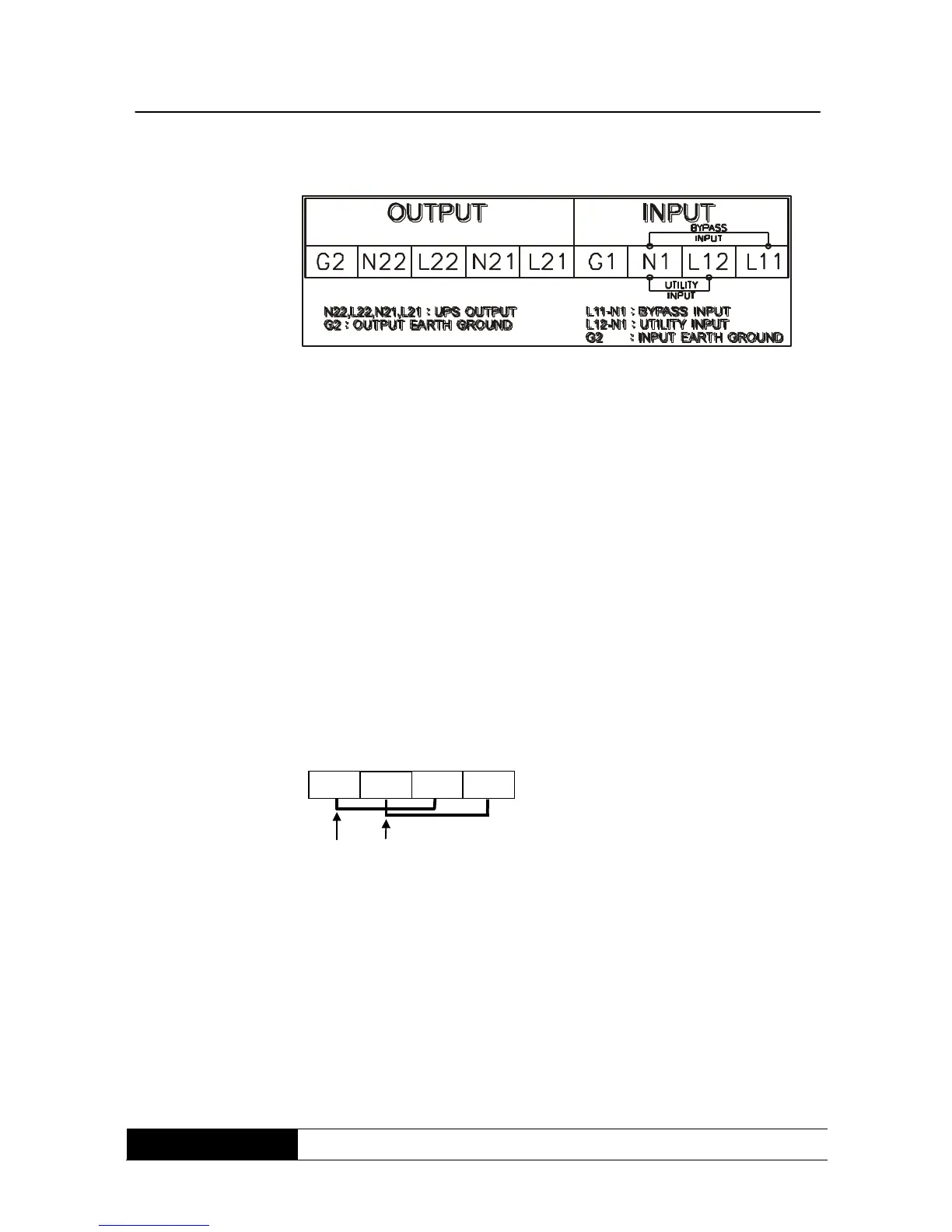

L11-N1: input terminal blocks bypass supply
L12-N1: input terminal block main supply
G1: protective terminal block input
L21、N21、L22、N22: UPS output terminal block.
G2: protective terminal block output
Notes:
1. If the main and bypass supply is identical, the terminal blocks L11 and
L12 will be bridged. (jumper is included in delivery)
2. If an isolating transformer is not installed, the UPS terminal blocks L22-
N22 have to be used.
3. When the transformer is installed:
AC-systems 100/110/115/120 V, you can connect as follows.
