8.3 Connection of the UPS

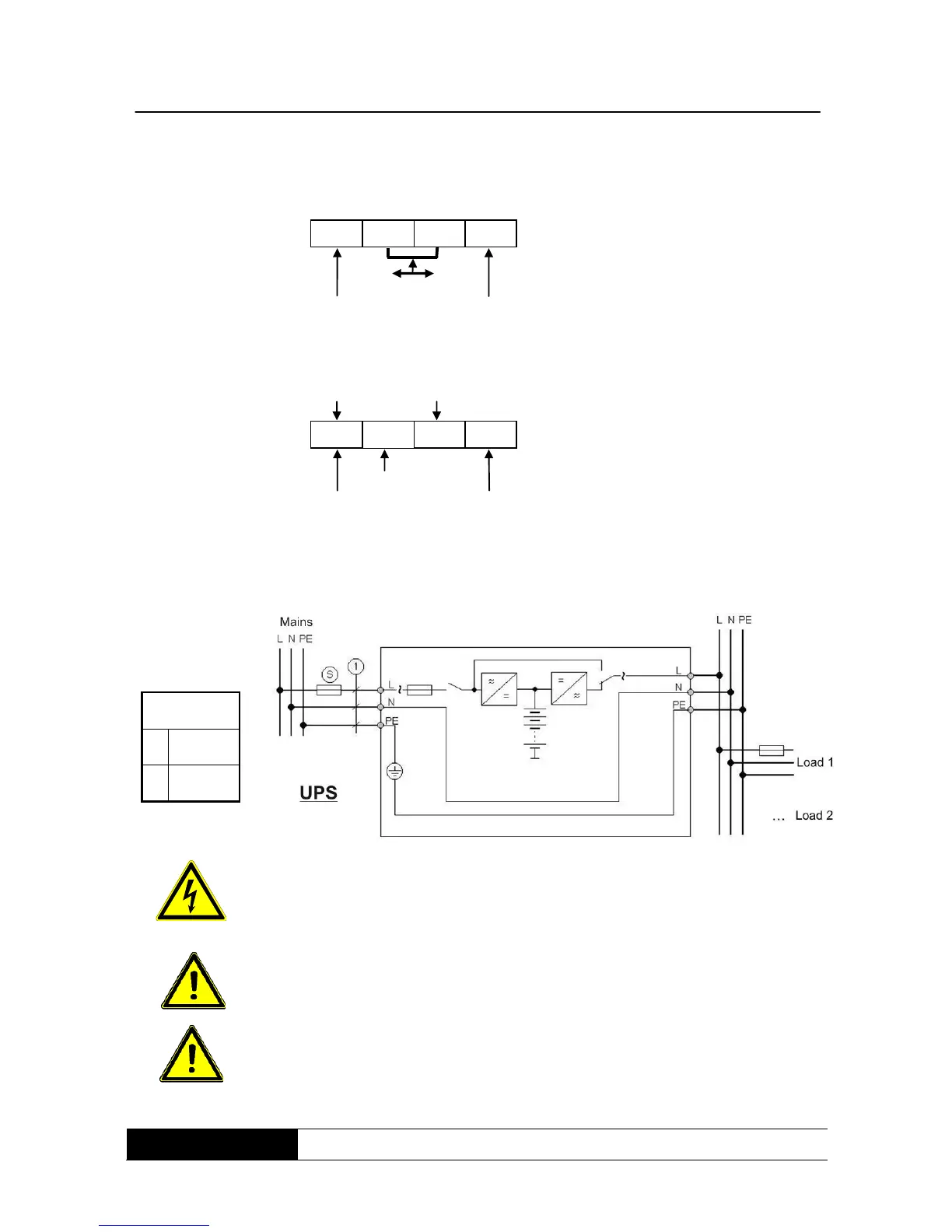

Follow the following instructions and the fig. 5 when connecting the UPS:
Fig. 5: connection
of the UPS
MH6000
S:
40A
1:
6mm²
Warning
The UPS unit has got components with high voltage and amperage. Incorrect
handling can result in electronic accidents with possible fatal consequences or
damages.
Warning
The PE (protective earthing conductor) must be connected! If not so, the
connected machines are also not grounded.
Warning
The above mentioned fig. 5 is just valid if:
o the loop-resistance until the last connected machine is respected;
