UPS: MKD 700 – 3000 VA RT (XL) Installation and Connection

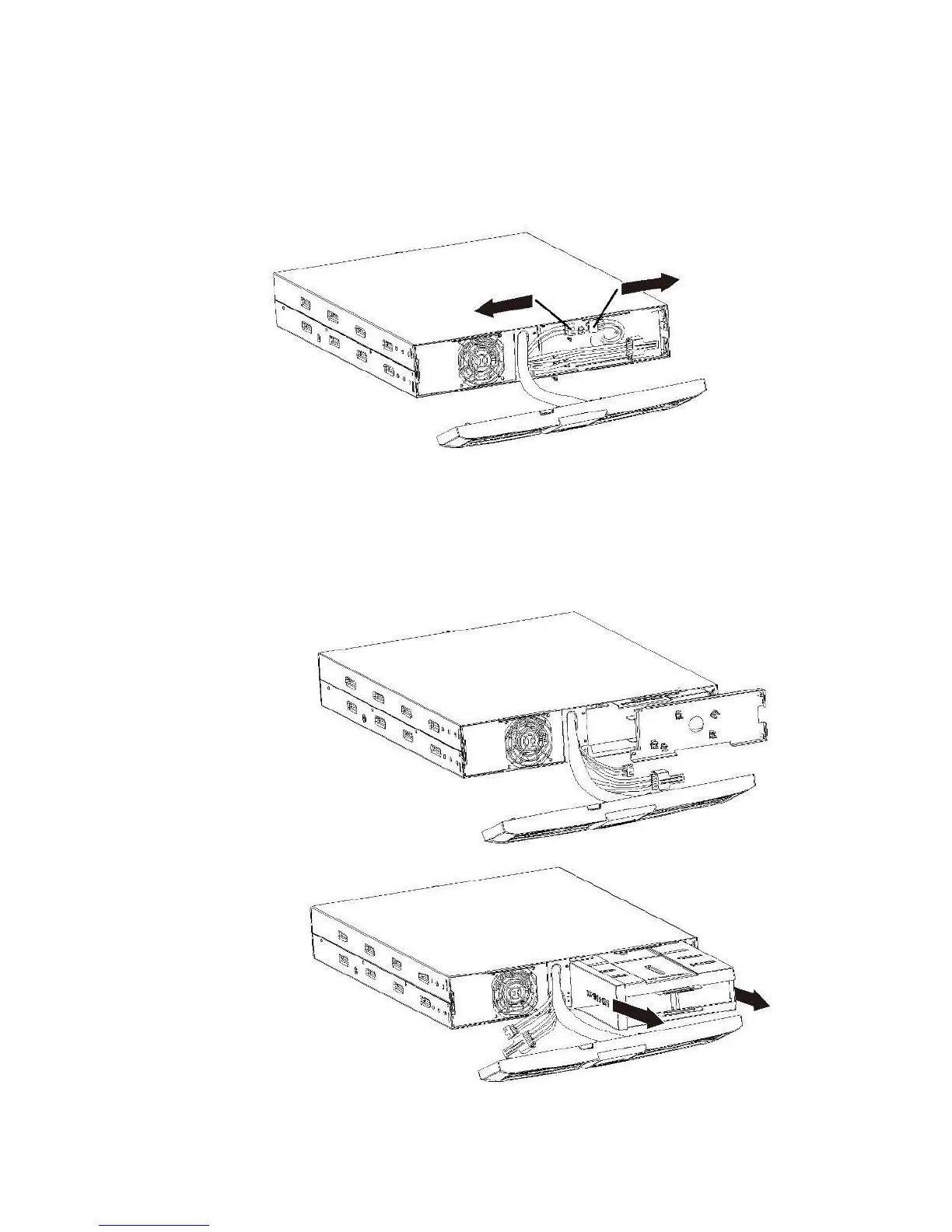

Step 2: Now disengage the battery pack connection from the UPS.
Fig. 5-2 Disengage the battery bank connection from the MKD 700-3000 RT
(XL).
Step 3: Remove the safety cover from the UPS and extract the battery pack
according to the following illustration.
Fig. 5-3 Extracting the battery pack MKD 700-3000 RT (XL).
