eSteer10 User Manual
4 Common functions
4.1 RZ function
To reset the AB Line and align it with the current position of the vehicle, follow these steps:
1. Click on the button located on the top-right corner of the screen.
2. Select the "RZ" option from the menu that appears.
3. This action will reset the AB Line and move it to the current position of the vehicle.
Note: It is important to align the vehicle's direction as closely as possible with the AB Line before
performing the zeroing operation.

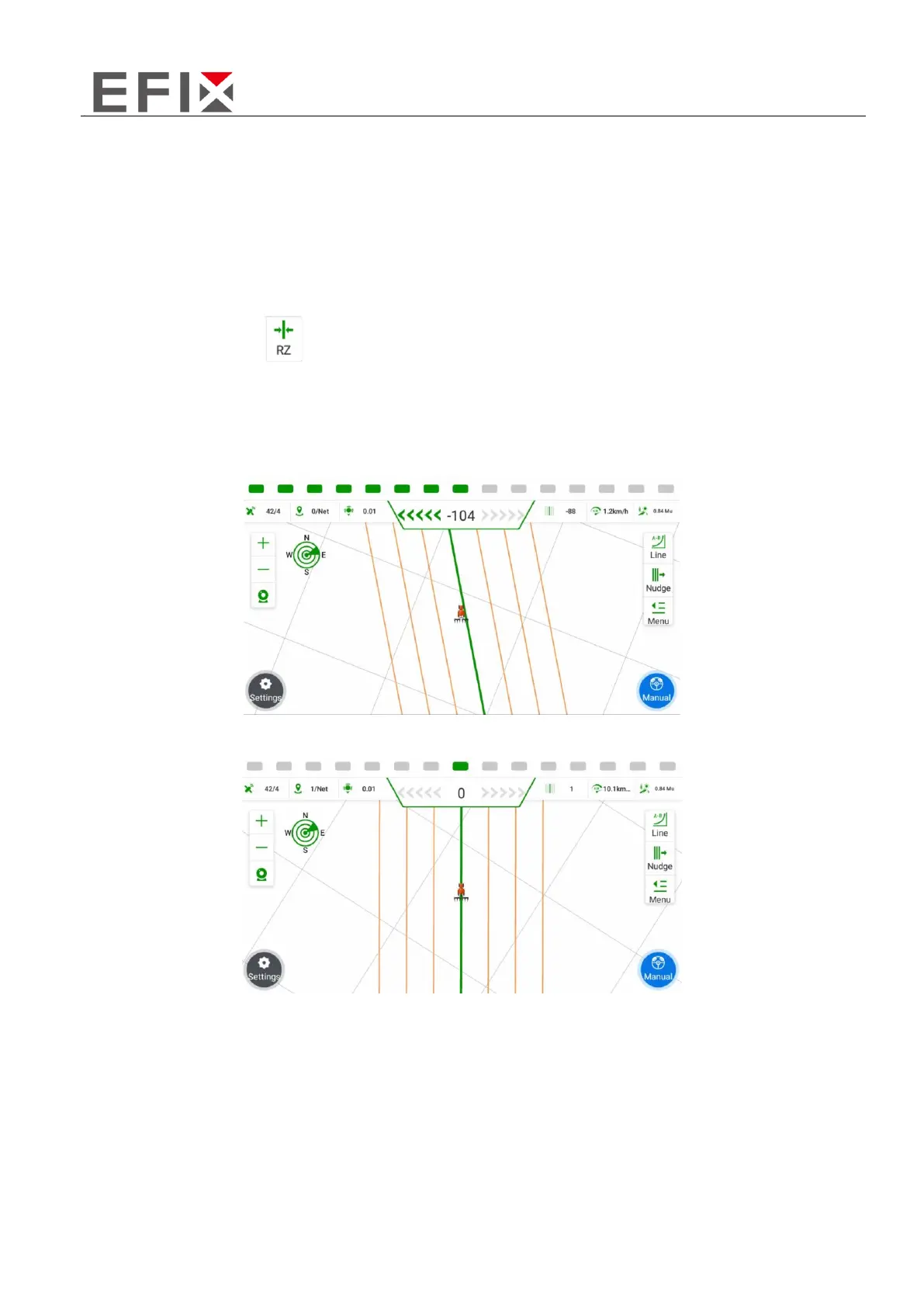

Before RZ
After RZ
