4 Installation
4.1 Installation space requirements
Installation should be carried out by trained personnel.
Ensure that there is sufficient unoccupied space behind the installation
area before you drill or saw any openings. Please also observe the safety
information provided by the tool manufacturers.
CAUTION!
Solvents may emit fumes during sealing. Ensure that there is sufficient
ventilation and follow the instructions for using the sealing compound.
When choosing a location in which to install the fuel cell, please remem-
ber that the permitted operating temperature range for the device is
-20°C to +50°C/-4°F to +122°F.
CAUTION!
The device requires an air supply and generates off-heat and exhaust
gases. The off-heat and exhaust gases must be released into the open air.

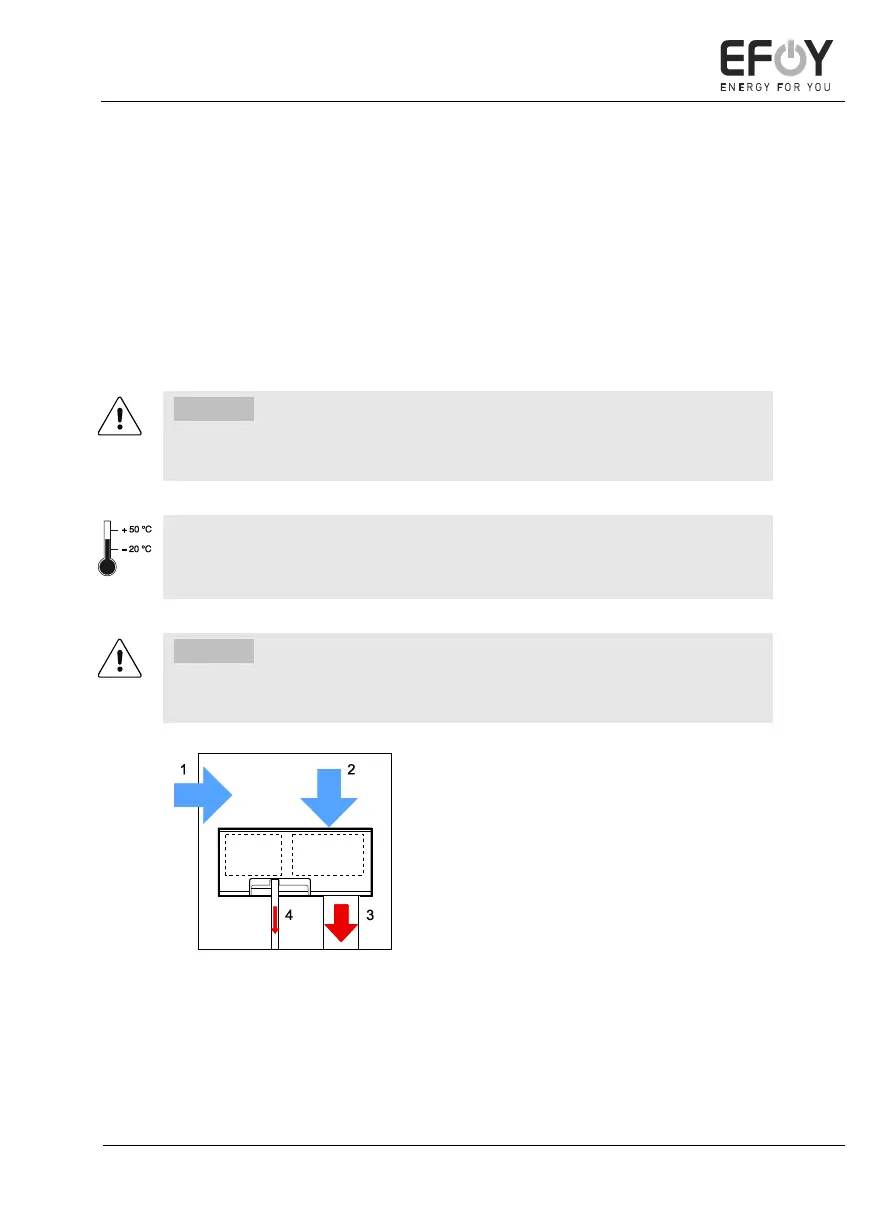

1. Opening for air supply for installation
space
2. Air supply for heat exchanger and for
stack
3. Off-heat from heat exchanger
(see chapter 4.3 "Connecting the off-heat
duct" on page 23)
4. Process exhaust air from stack
(see chapter 4.4 "Connecting the exhaust
hose" on page 25)
