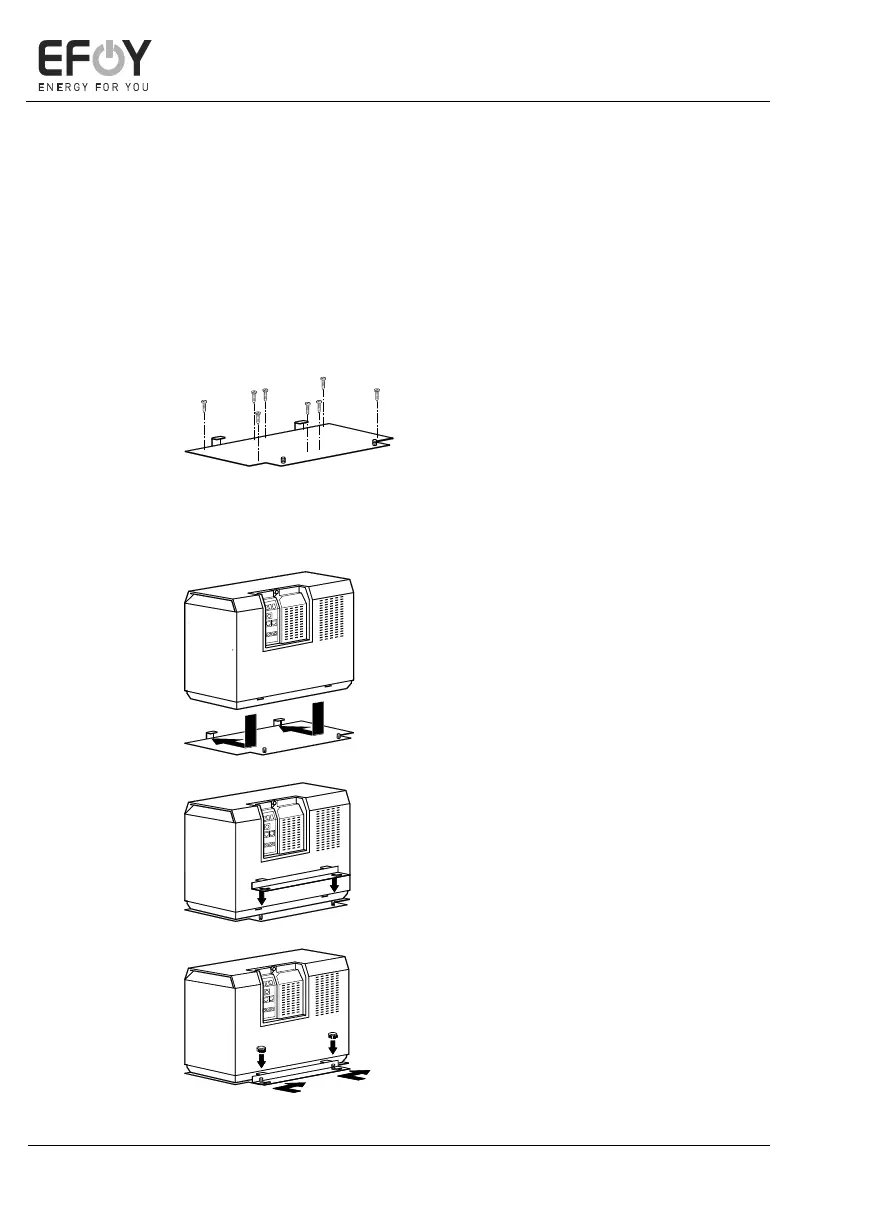

4.2 Mounting the fuel cell
1. Select a suitable location for instal-
lation as described in chapter 4.1
"Installation space requirements" on
page 19.
Observe the dimensions in chapter
3.3 "Specifications" on page 16.
2. Secure the mounting plate tightly at
the desired location. Use suitable
screws and dowels, if necessary, to
ensure that the mounting plate will
remain in place even if significant
force is applied to it, for example, in
the event of an accident.
3. Place the device onto the mounting
plate. The connections can be at the
back, or as shown in the figure, at
the front.
4. Place the mounting bar on the pegs
on the mounting plate.
5. Slide the mounting bar onto the de-
vice and then to the right to lock it.
Secure the bar using the two mount-
ing nuts.
