Power line
Sense line
The charge line comprises four lines.
The two power lines charge the battery
with electricity. The two sense lines
measure the battery voltage.
The following cable cross-sections are
recommended to minimize ohmic drops
in the charge line, if the battery charge
line supplied is not long enough:
Length [m]
Minimum cable cross-
section
< 5 m/16.4 ft
2.5 mm²/0.004 sq in
5 – 10 m/
16.4 – 32.8 ft
4 mm²/0.006 sq in
10 – 15 m/
32.8 – 49.2 ft
6 mm²/0.009 sq in
Optional accessories
Extension sense line 8 m/26.2 ft (Art. No.: 151 906 005)
Extension power line 8 m/26.2 ft (Art. No: 151 906 006)

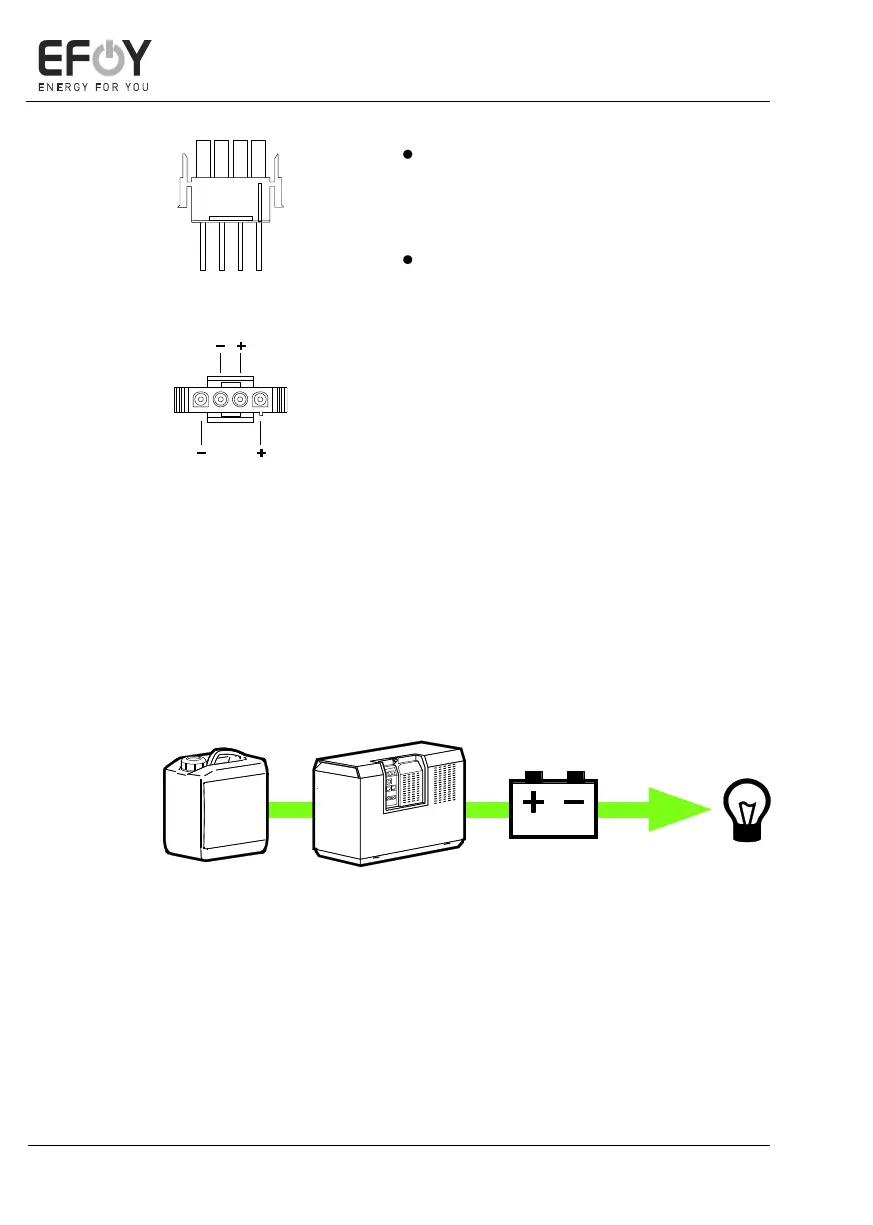

Connection diagram
EFOY fuel cartridge EFOY Pro Series Battery Load
