product operating instruction
E.G.O. Germany (E.G.O. Elektro-Gerätebau GmbH)
document id.: 90.60160.286-001-04-A / state: 230 - released
designation: Induction Gx
page
20
of
43
5 Wrong alignment
2. Turn in the screws for fixing the mounting plate and tighten them with 1.5 Nm + 0.2 Nm.
Use screws with technical characteristics of 98.302.04.
Use an aluminum sheet with a thickness of 1.5 mm.
6 Screw for fixation of the mounting plate
3. Align the mounting plate with the screw holes of the generator for earth connection.

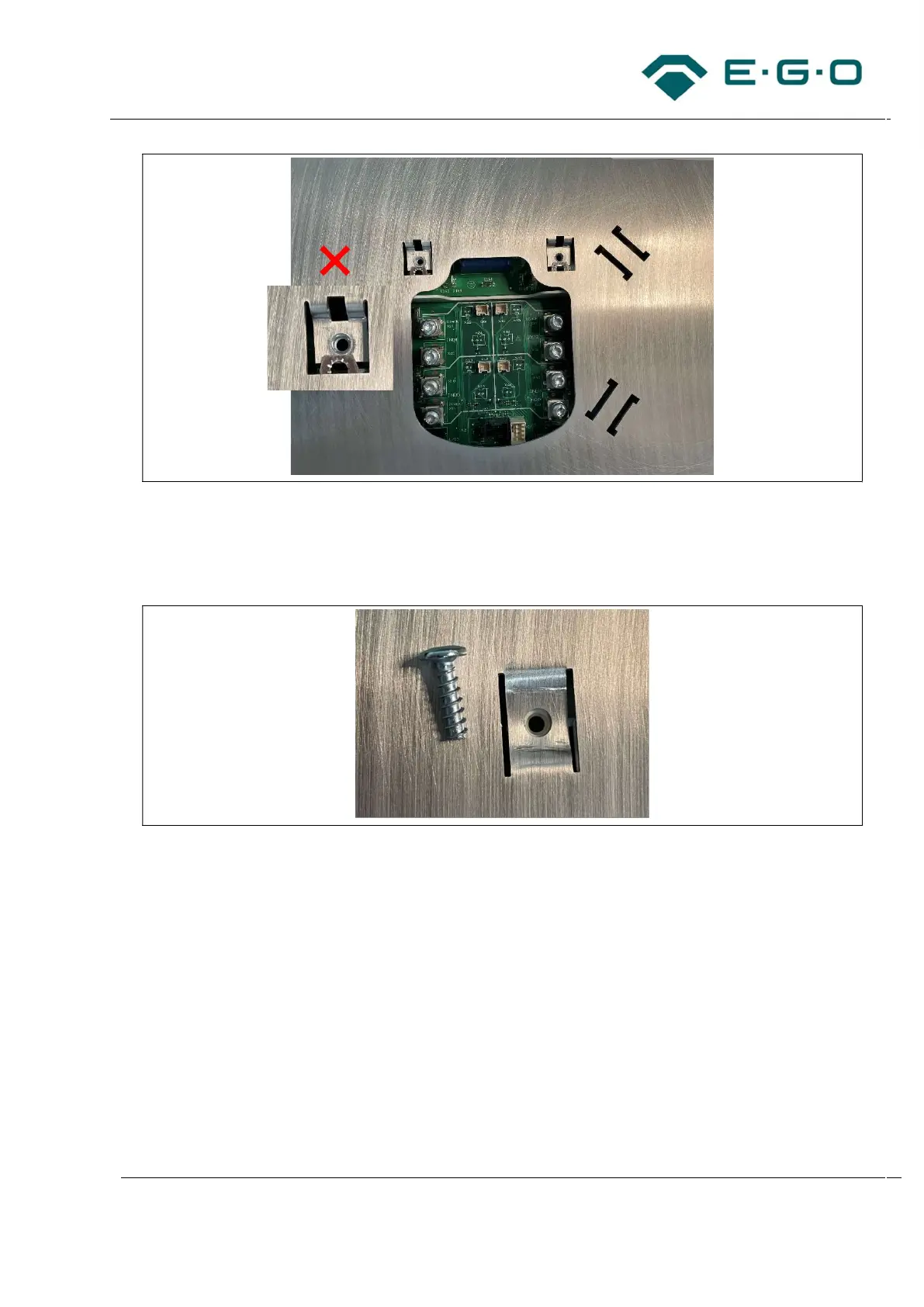

Consider all correct alignment positions as shown in the following illustration.
