designation: Induction Gx

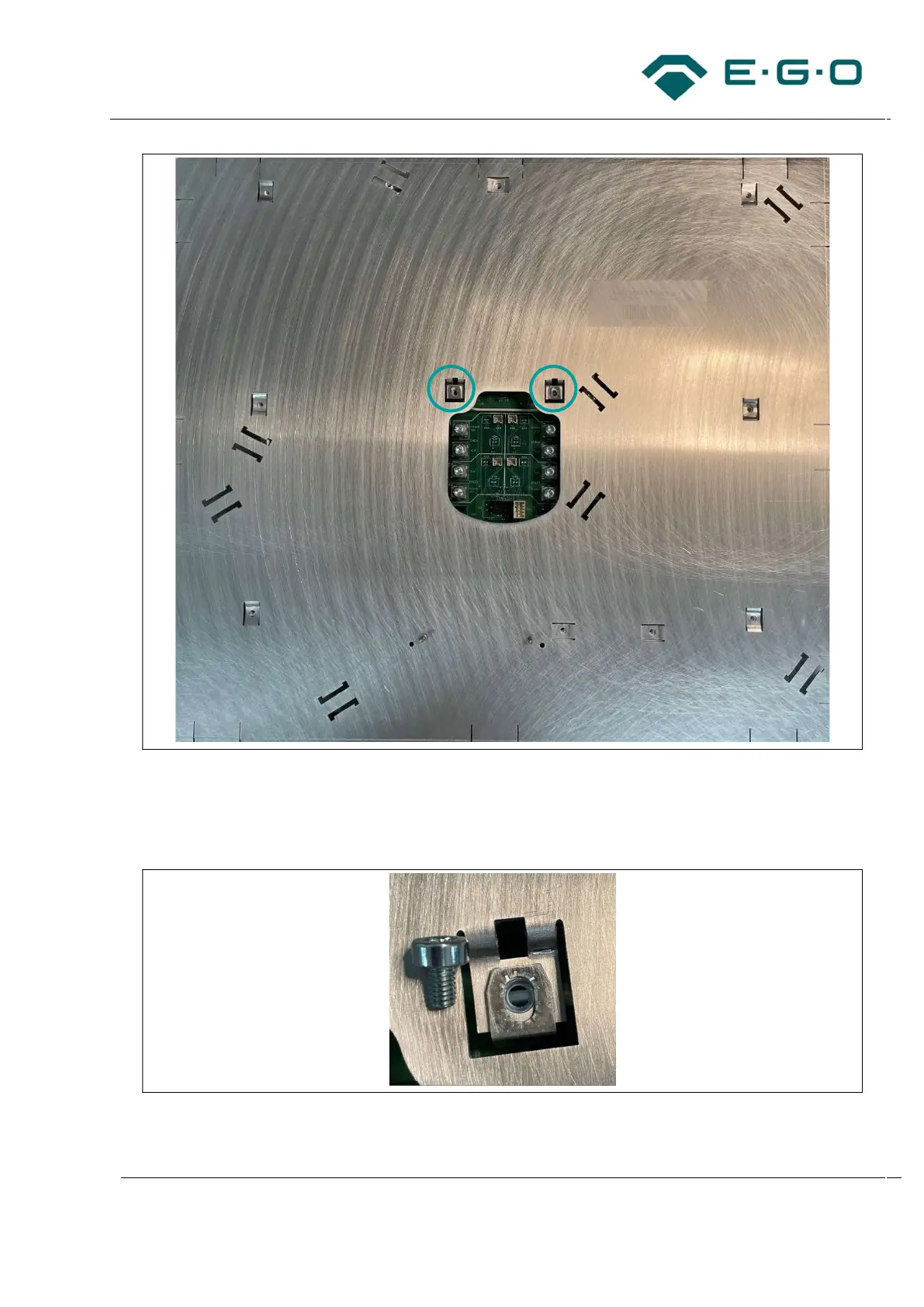

7 Positions for assembling the generator to the mounting plate for earth connection
4. Turn in both screws with technical characteristics of 967.279 for earth connection and tighten them
with 1.5 Nm + 0.2 Nm. This step is very important for electrical safety and EMC. The appliance and
consequently the screw must fulfil the standard IEC60335-1 chapter 27 and 28. If this screw will be
designed by own, it must be paid particular attention to this.
8 Screw for earth connection
The mounting plate and the induction generator are fixed.
To Next Page
