product operating instruction
E.G.O. Germany (E.G.O. Elektro-Gerätebau GmbH)
document id.: 90.60160.286-001-04-A / state: 230 - released
designation: Induction Gx
page
22
of
43
Next step is the assembly of the inductor on the mounting plate.
Preconditions
Cleanliness requirements:
The surfaces of the mounting plate must be clean (e.g., free of dust and grease), dry and free of
condensed moisture, which must be ensured by the supplier of the mounting plate, the
appliance producer or the qualified electrician. This is important to ensure a secure bond of
inductors and obtain a good performance of the induction heating system afterwards.
A surface tension from the top of the mounting plate of at minimum 35 mN/m is recommended.
Application temperature:
The application temperature must be between 10 °C and 38 °C.
The following steps must be considered for the fixation of the inductors on the mounting plate.
1. Flip the inductor to the backside.
2. Peel off the protective film.

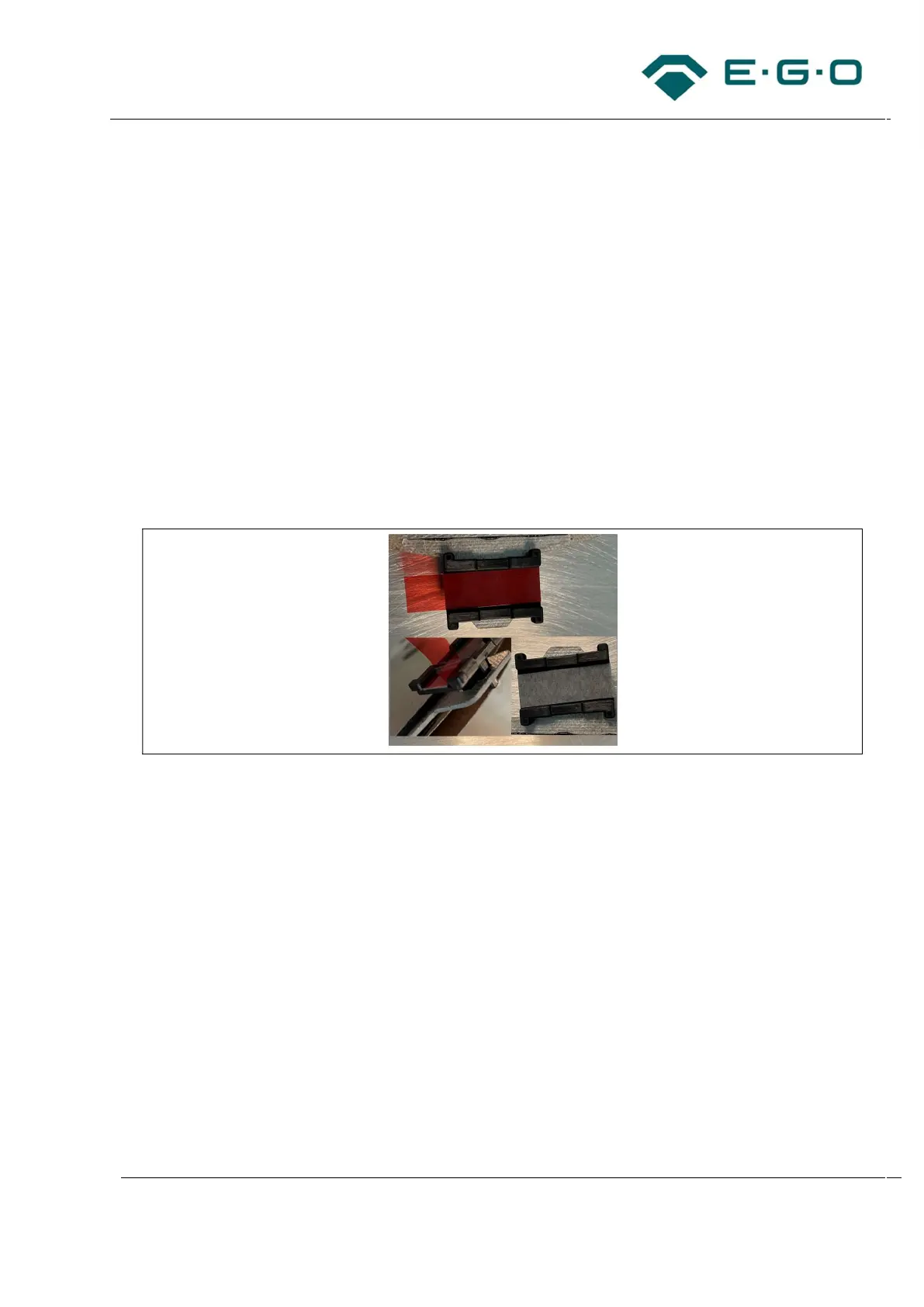

9 Protective film on the glue area of the inductor
3. Flip the inductor to the frontside and assemble it on the related slots (picture 10) on the mounting
plate as shown in the following illustration. The clip must be pressed with a minimal force of 40 N
(minimum pressure is 20 N/cm²), when applying the adhesive tape of one clip. The applying force is
around one second.
