Eizo CuratOR EX3242-3D User Manual

16
Chapter 2Chapter Installation / Connection
2-2. Installing the Product
This product should be installed using an arm or stand.
Attention
• When installing, do so by carefully following the information in the User's Manual about the arm or stand.
• Ensure the following and select components that comply with the VESA standards.
- Clearance between the screw holes: 100 mm x 100 mm, 200 mm x 200 mm
- Strong enough to support the weight of the monitor unit (excluding the stand) and attachments such as cables.
• Use the supplied screws (M4 screws for 100 mm x 100 mm, M6 screws for 200 mm x 200 mm) when installing.
• Please follow the specications for the screw tightening torque. If the tightening is not performed correctly, the
attached part may be damaged, which may result in injury or equipment damage.
• When using an arm or stand, attach it to achieve the following tilt angles of the monitor.
- Up 45˚, down 45˚
• Connect the cables after attaching an arm or stand.
• The monitor and other attached parts are heavy. Dropping them may result in injury or damage to equipment.
• Periodically check the tightness of the screws. If not su󰀩ciently tight, the monitor may detach from the arm, which
may result in injury or equipment damage.

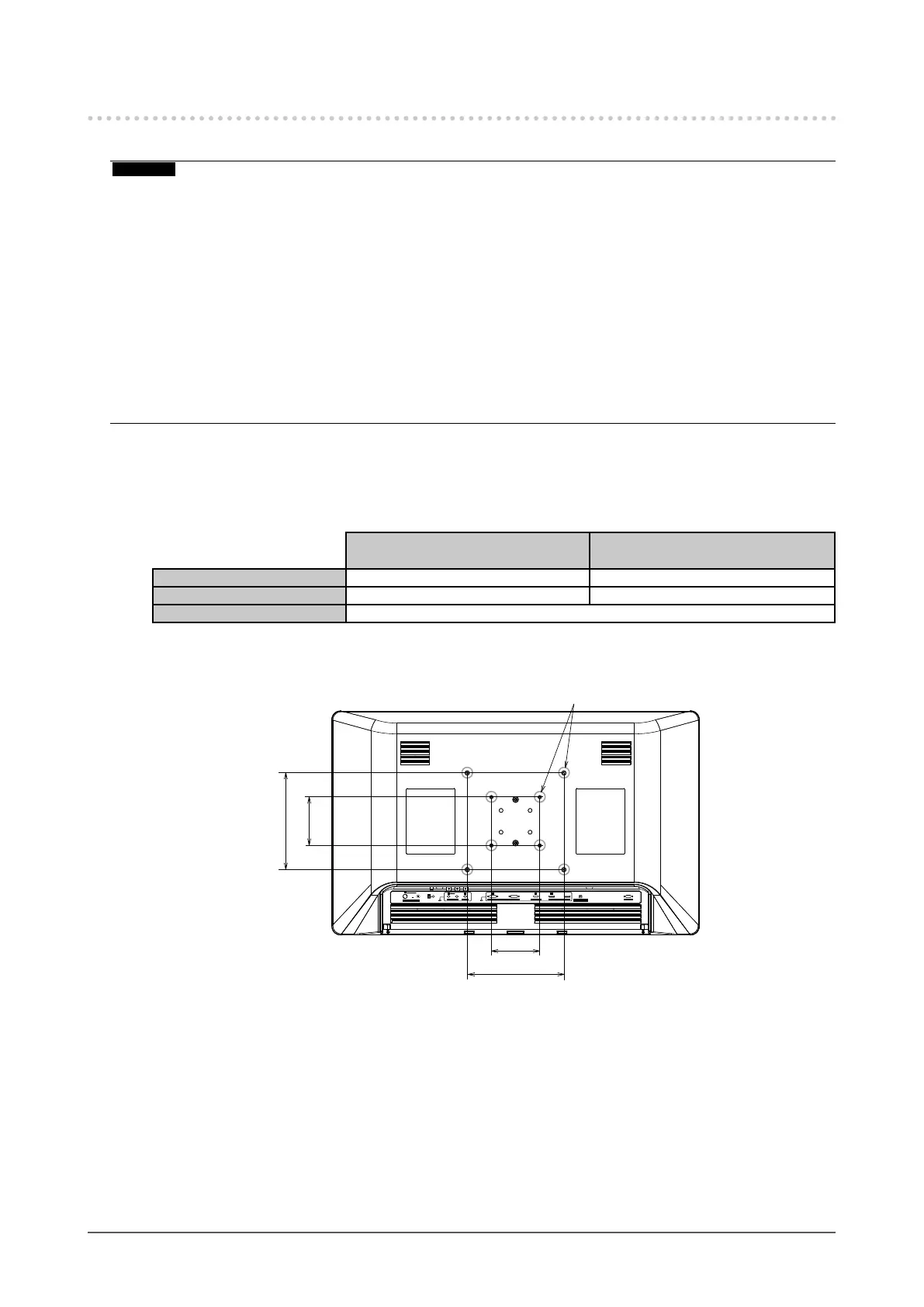

1.
Attach the arm or stand to the back of the monitor by aligning the four screw
holes and secure the arm or stand using the screws supplied with the monitor.
The type of screw and the tightening torque vary depending on the screw hole.
Screw hole with 100 mm pitch
(interior) x 4 places
Screw hole with 200 mm pitch
(exterior) x 4 places
Screw type
M4 screws M6 screws
Screw tightening torque
1.0 N·m to 1.4 N·m 1.5 N·m to 2.0 N·m
Required tools
Phillips-head screwdriver (No. 2)
Rear
Screw holes
USB
OUT
DisplayPort
IN
DC
IN OUT
5V 2A
OUTIN
DVI
IN INOUT
RS-232C
HDMI
IN
12G-SDI 12G-SDI
(Maintenance only)
100 200
200
100
Unit: mm
