2-5. Installing the Cable Cover
1.
Align the cable cover on the back of the monitor in such a way that the cables
can go through the cable outlet port.
2.
Insert the cable cover tabs into the grooves in the monitor.
3.
Tighten the screws at the left and right-hand holes on the bottom side of the
monitor.

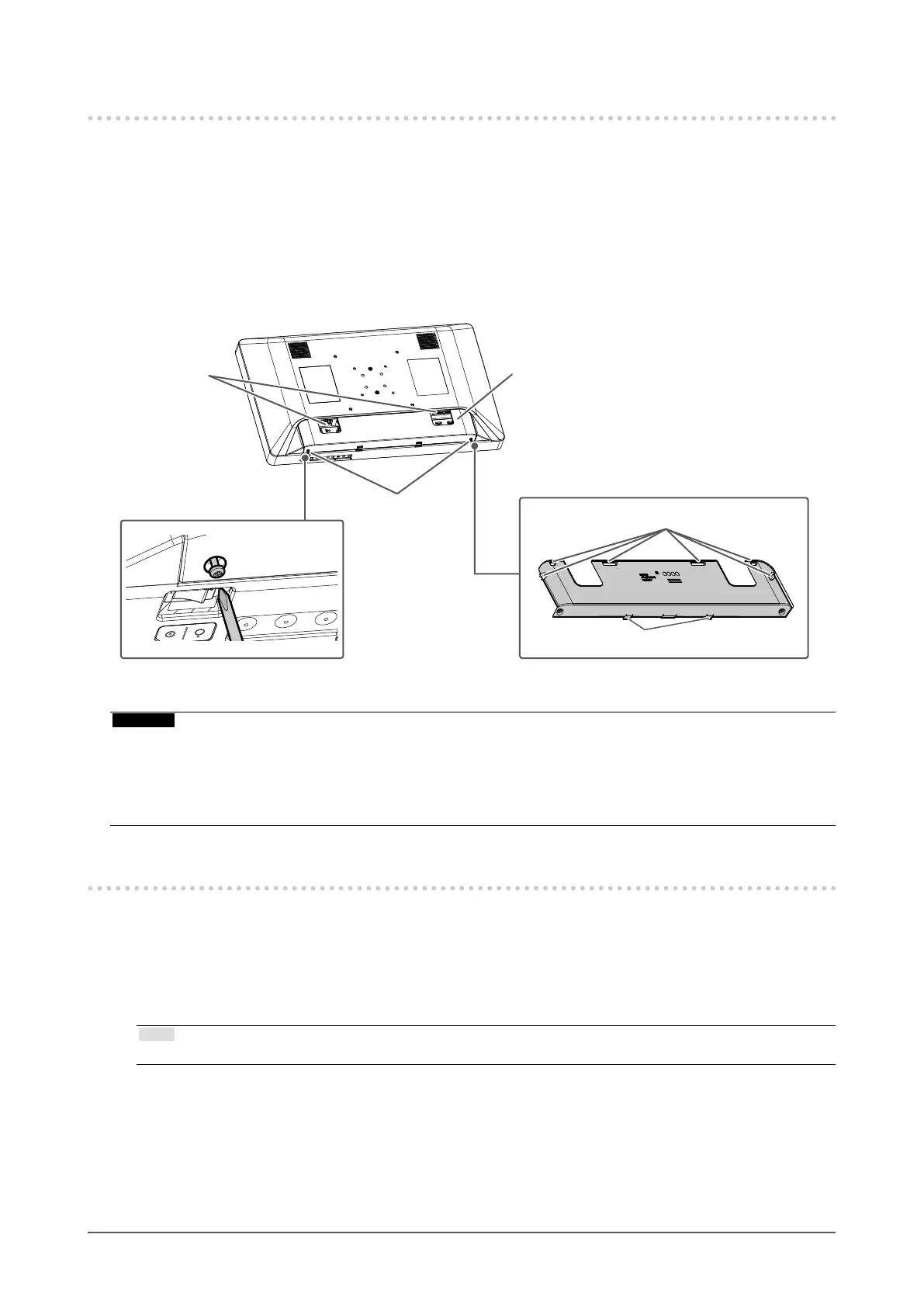

Screw holes
Cable cover
Cable outlet port
Tabs
Tabs
Cable cover reverse view
Attention
• Ensure that cables are not pinched between the cable cover and the monitor.
• Securely tighten the screws in the two locations. (Tightening torque: 0.4 Nm to 0.7 Nm, Tool used: Phillips-head
screwdriver (No. 2))
• Avoid subjecting the terminal and cable to stress.
• Do not pack or transport with the cable cover attached.
2-6. Turning On the Power
1.
Turn on the power switch on the bottom of the monitor, and then turn on the
monitor.
The power indicator on the front of the monitor lights up green.
If the indicator does not light up, see “"Chapter 3 If No Image Is Displayed" (page 21).
Note
• If the power switch on the bottom of the monitor is turned o, the monitor is turned o.
