INSTALLATION
NP-DK50 2V 50, 2x2V 110-A-5_06-2020-MD 28 06/2020

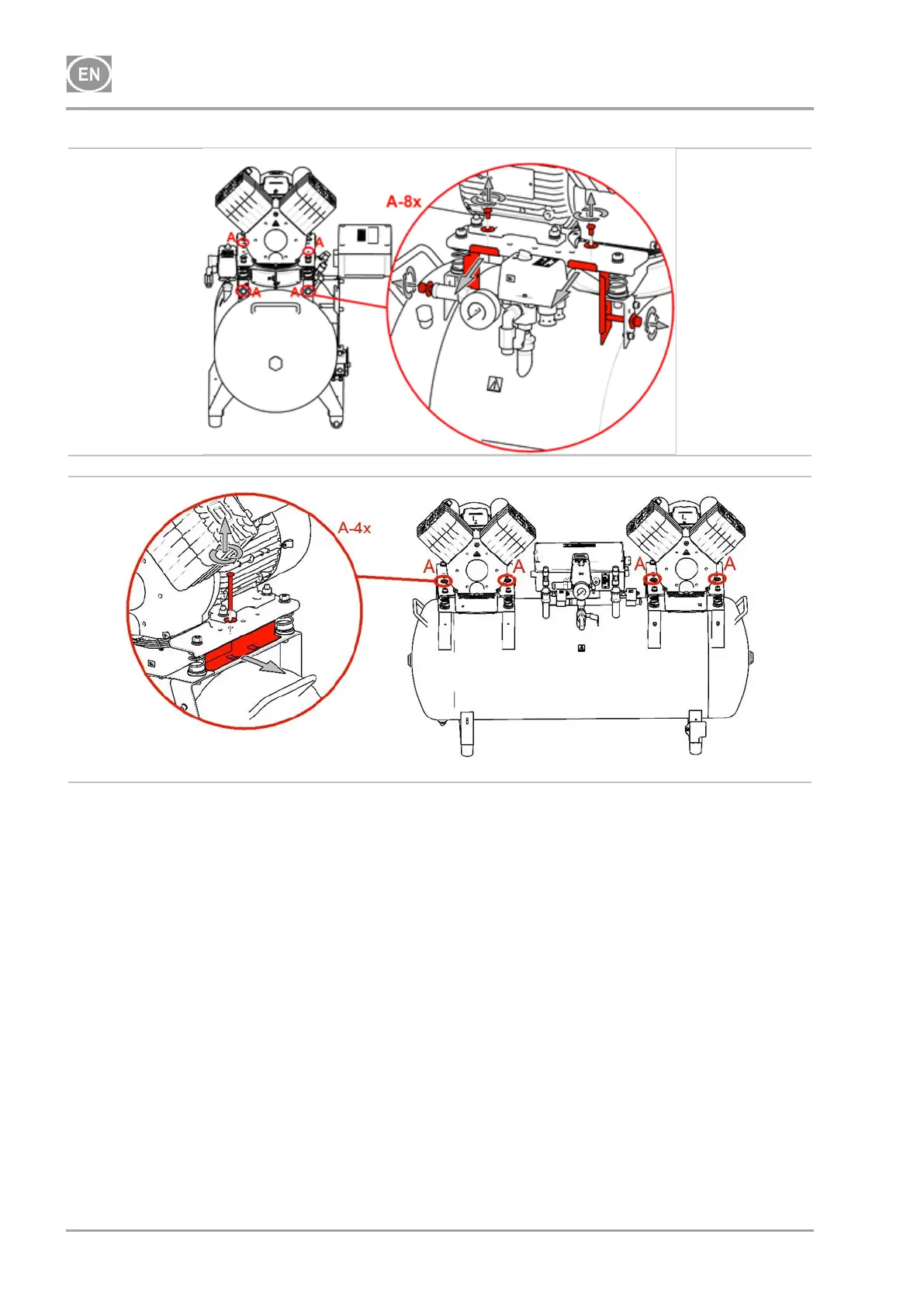

Fig. 5: Releasing the pump
10.2. Placement of the compressor in the cabinet
Disassembly cabinet door (DK50 2V/50 - Fig. 3)
Remove the door held by 2 screws and disconnect the grounding lead.
Compressor placement
Remove the connecting strip (33) in front of the cabinet.
Before placing the compressor without the dryer (DK50 2V/50) into the cabinet, please follow
Chapter 12.3 to add sound insulation foam into the cabinet.
Insert the compressor into the cabinet using the positioning truck (35), place the connecting
strip in front of the cabinet and adjust the position of the compressor so that the two “V”
notches on the connecting strip align with the compressor legs.
. This puts the compressor in the right position for the cabinet. Insert the compressor into the
cabinet only so far as to be able to install the connecting strip and so the compressor doesn’t
obstruct its installation.
Insert the compressor with a dryer into the cabinet so that the dryer fan fits into the cooling
tunnel opening in the cabinet. WARNING, do not insert the compressor down to the stop. For
