EKOM DK50 2V/50 - Page 42

INSTALLATION
NP-DK50 2V 50, 2x2V 110-A-5_06-2020-MD 42 06/2020
Compressor cabinet
8 – 10 bar
ELEKTRICTRICAL OBJECT OF 1st. CAT.
DK50 2V/50S
DK50 2x2V/110S

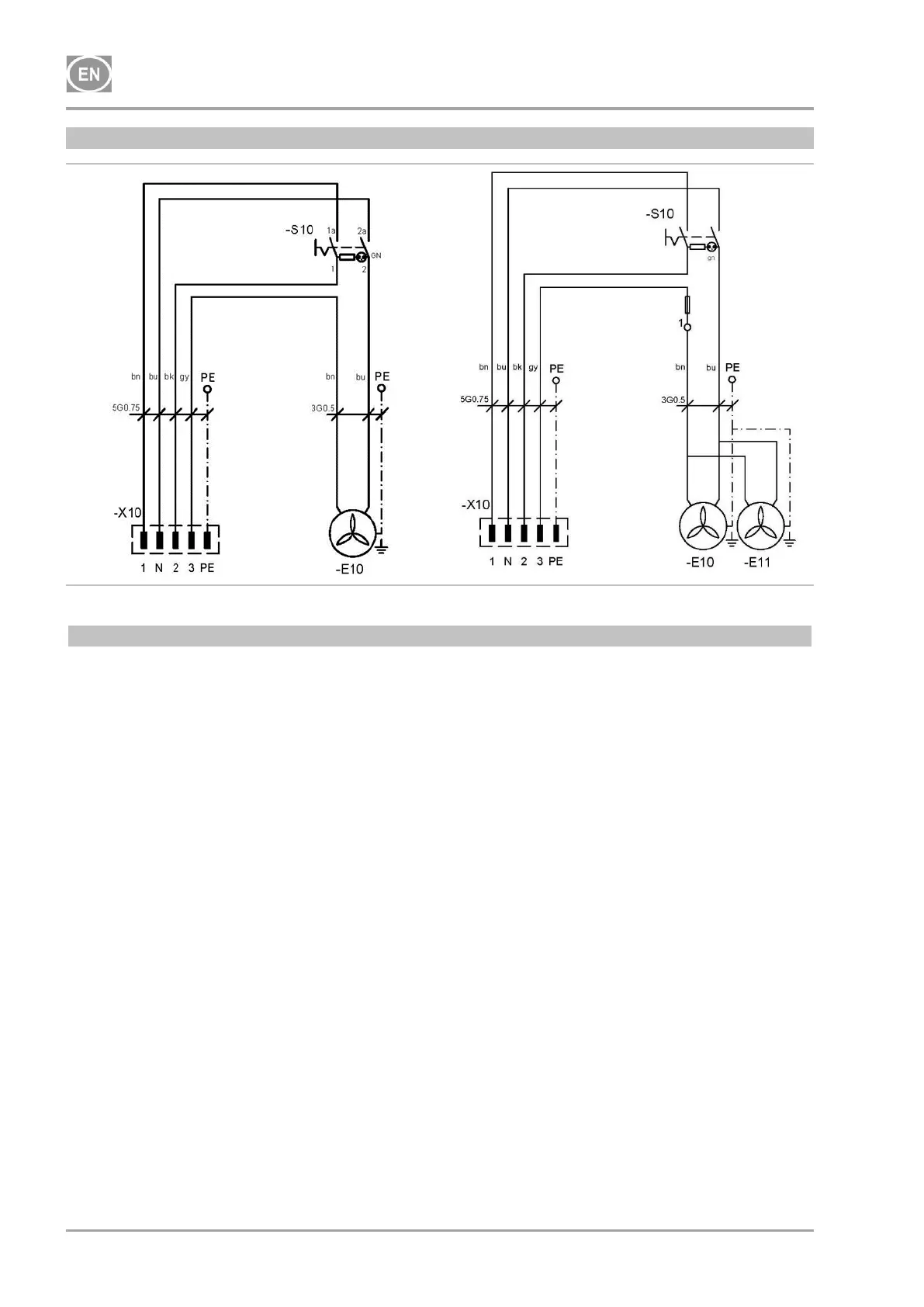

Legend for electrical diagram
M1,M2 Compressor motor
E1,E2 Compressor fan
E3 Dryer fan
M10,M20 Relief valve
B2 Temperature switch
E10,E11 Cabinet fan
X10 Connector
X2 Socket
B1 Pressure switch
X1 Terminal strip
M4 Condensate drain valve
P1* Hour meter
S10 Switch
K1 Timer relay
F1,2 Breaker
F3 Fuse
Q11,12 Contactor
Note:
 J** - Only connect the jumper for compressors without cabinet (see chapter 17.10)
 P1* - Hour meter installed only for the 8-10bar compressor model
