OPERATION
SM-DK50 DS-EN-20_02-2016 13

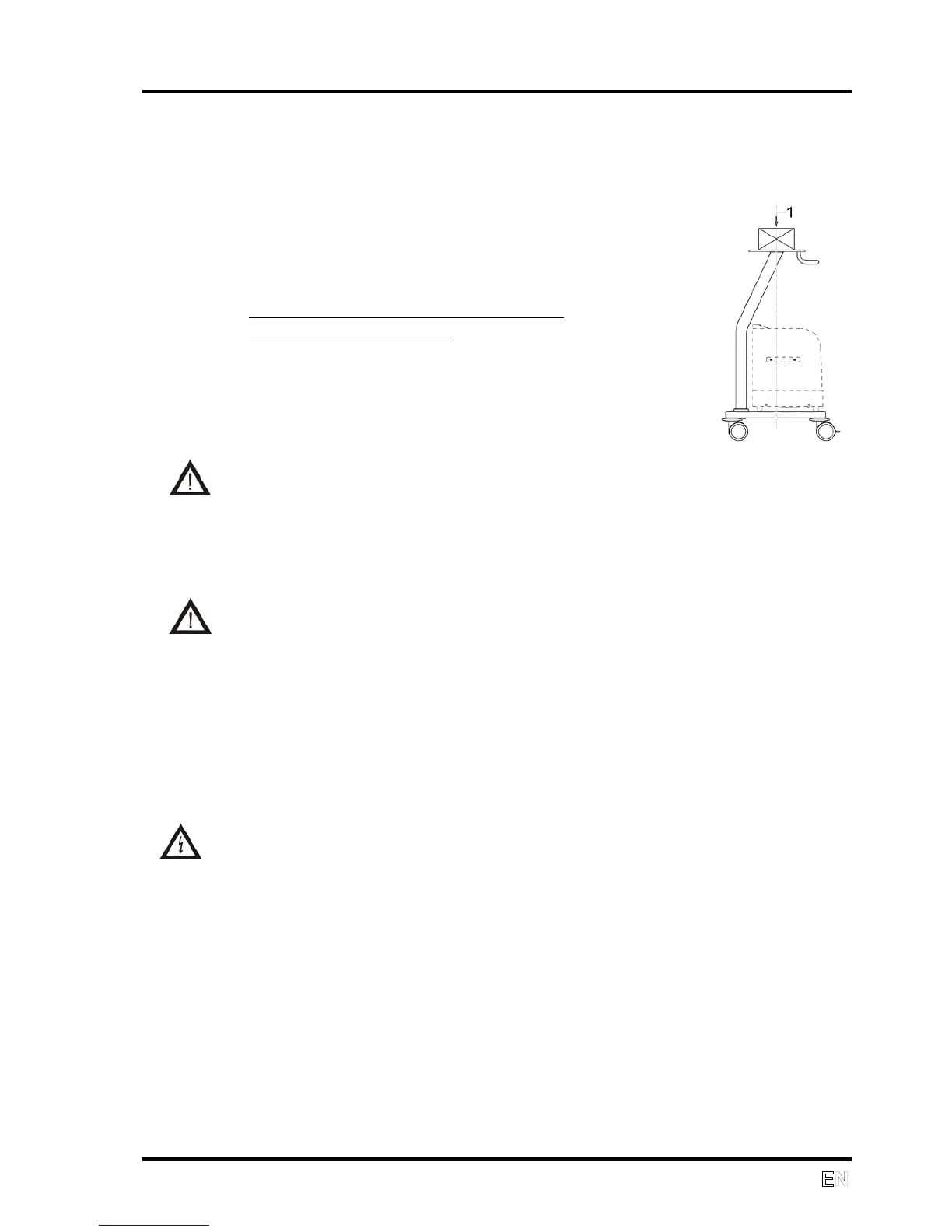

The trolley accommodates the compressor, a fan and a humidifier. Large
casters allow for mobility and braking, guided by means of an ergonomic
handle. A wide base ensures the stability of the entire assembly.
Specifications
Supply No.: 602021222
Dimensions: 535x575x1070
Maximal load-carrying capacity with load
in the upper plate axis (1):
Trolley without compressor - 25kg
Trolley with compressor - 30kg
The manufacturer is not liable for any damage
resulting from excessive loads on the equipment!
The supplier is obliged to ensure the acceptability of a load delivered
by a supplied accessory.
It is forbidden to lean or press against an installed accessory for
support!
The equipment must be lifted when travelling over an obstacle!
Supporting equipment must be disassemble before transport!
The maximum load on the upper trolley plate is 30 kg!
Humidifier holder (25)
This clamp is used to attach the Fischer & Paykel humidifier to the trolley in
its proper position.
Supply No. 604031175
PERSONNEL
In case of emergency, switch the equipment off at the switch and pull
out the main power plug.
Switching the compressor on
The compressor is switched on at the main power switch (11) by putting it in
position "I". Switching on is signaled by the green indicator (8).
Running the compressor
The green indicator POWER (8) is lit up during operation. The display shows
the value of outlet pressure with accuracy ± 5% in BAR or PSI units. An
indicator is lit on the display next to the relevant unit. Ask the service staff
member to change the units that are shown if necessary.
