Conversion of Physical Units bar – psi
The control electronics has the feature for the conversion of display of output
pressure from physical units “bar” to “psi”. Conversion is to be carried out

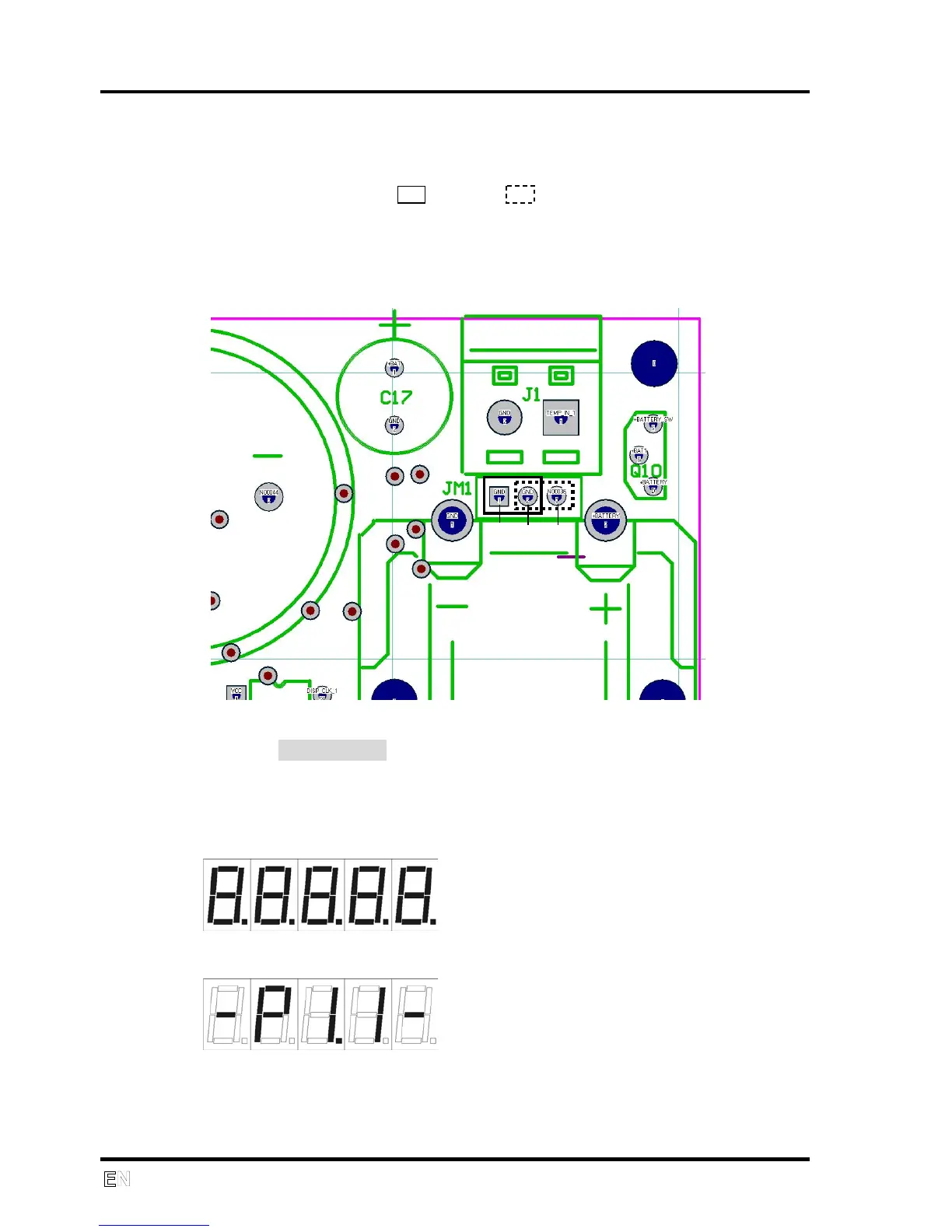

using “JM1” jumper (bar - 1,2) (psi - 2,3) that is set by manufacturer in
“bar” position. Indication of setup is displayed on the display as follows:
Bar – horizontal line on top
Psi – horizontal line in the centre
Control electronics - 230V version
Equipment function in operating mode
All the segments and the LEDs will light after power is connected; also the
buzzer will chirp.
The program version will be displayed shortly thereafter.
The display will then show the outlet pressure in the units defined by the
"Display PSI" jumper. The jumper position is clear from the positioning of
