MAINTENANCE
SM-DK50 DS-EN-20_02-2016 19
26
Check the condition of the filter. With regular operation, condensate from
the filter (19) drains automatically. Verify this function by comparing the
level of condensate in the bottle to the scale line indicating the maximum
level. If the level of condensate is above the scale line, replace the faulty
parts.
Examine the pump for:
- Defects in the crankcase
- Free movement of the crank shaft
If necessary, replace any faulty parts.

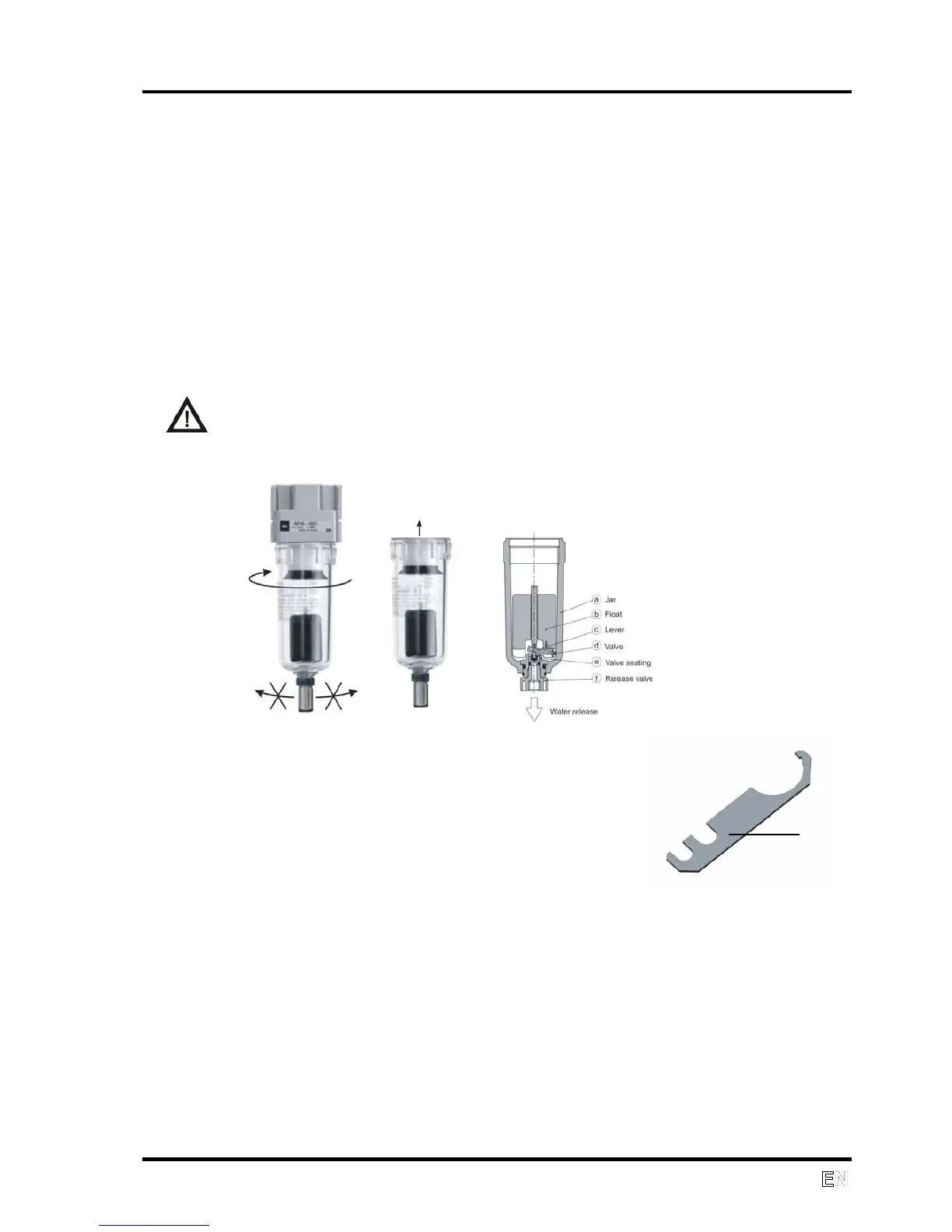

Replacing filters elements
Before beginning, evacuate all compressed air from the tank, reducing
the tank pressure to zero and disconnect the equipment from the power
mains.
Unscrew the cover and pull it out using the enclosed wrench (26).
Unscrew the filter holder.
Replace the filter and screw the filter holder
into place.
Screw the cover back in place.
Spare filtration pads:
Bronze (40 μm) (19a) AF20P-060S-7-40B Item 025200142
Plastic (5 μm) (19b) AF20P-060S Item 025200113
If the water release system becomes clogged, disassemble the release valve
(f), clean the outlet, remove the float (b) with a lever mechanism (c, d, and e)
from the tank, clean all components with a soap solution and then
reassemble.
