EKOM DK50 DS - Pneumatic Diagram

ELECTRIC AND PNEUMATIC DIAGRAMS
32 SM-DK50 DS-EN-20_02-2016

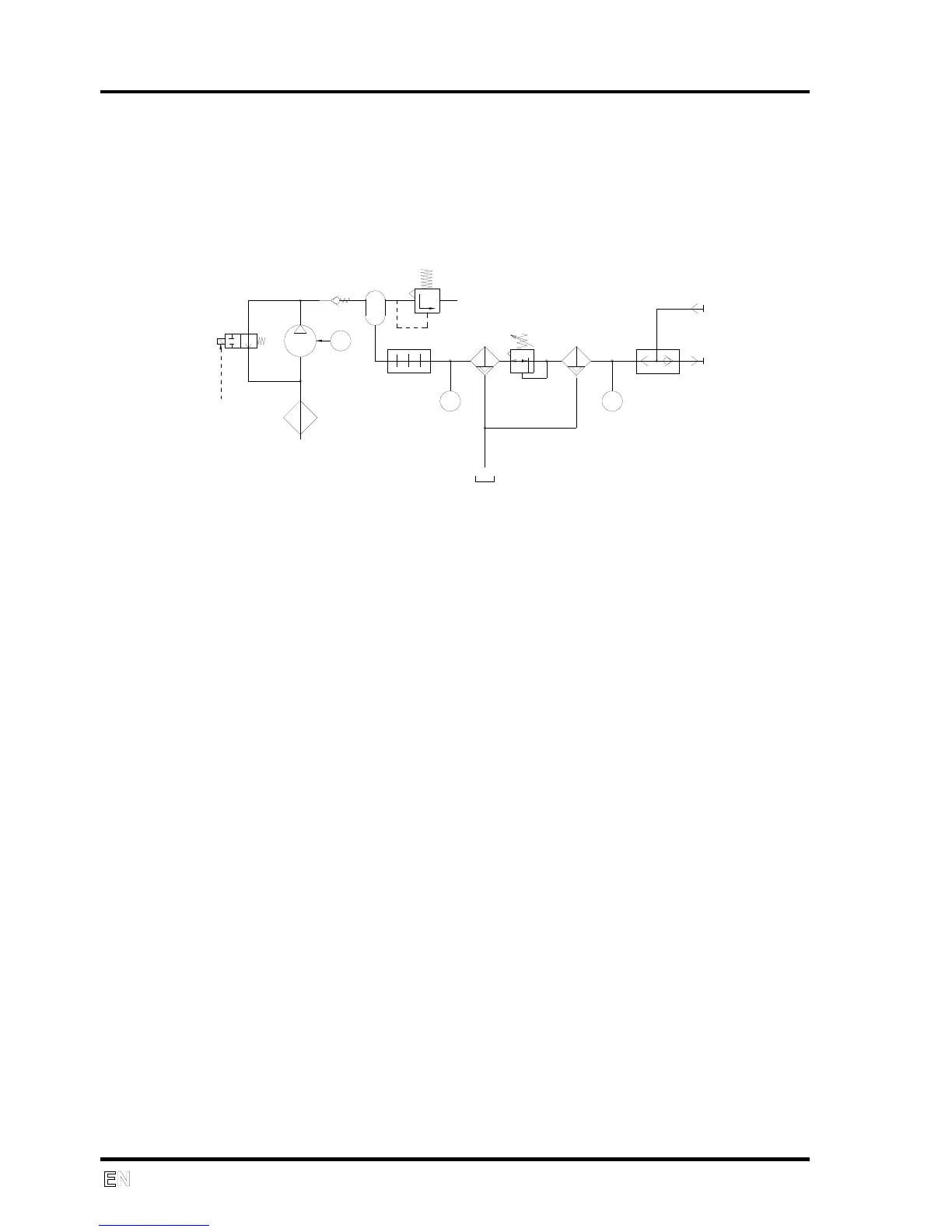

PNEUMATIC DIAGRAM
OUT
WALL
T1
P1
1
23
4
5
6
7
12
9
10 11
8
P2
6
1. Suction filter
2. Compressor
3. Solenoid valve
4. Return valve
5. Cooler
6. Filter with water trap
7. Pressure regulator
8. Air outlet
9. Air inlet
10. Air tank
11. Safety valve
12. Shuttle valve
