MAINTENANCE
SM-DK50 DS-EN-20_02-2016 17
Service interval signalization
Once 4000 operating hours have been reached, the value “4000” starts to
appear as the outlet pressure from the equipment, alternating with the actual
outlet pressure value. They alternate about every 2 seconds. Once this
information appears, the operator is obliged to secure service work for the
equipment.
After completing the service work, the service technician will zero out this
counter as follows:
115V version -
- Switch off the equipment (switching from I → 0 or by disconnecting the
power)
- Moving the jumper for the bar – psi outlet pressure into a different position
(the procedure is shown in the page 23)
- Switch on the equipment (switching from 0 → I or by connecting the power)
- Switch off the equipment (switching from I → 0 or by disconnecting the
power)
- Moving the jumper for the bar – psi outlet pressure back into its original
position
- Switch on the equipment (switching from 0 → I or by connecting the power)
This operation resets the internal service interval counter to zero.
230V version -
The shorted “Service Display” jumper can be used to zero-out the service
hours. After the shorted “Display PSI” jumper is inserted and removed or
removed and inserted, the service hour counter is set to zero. Use the same
method for setting the motor hours if the service hour counter needs to be set
(the procedure is shown in the page 26).

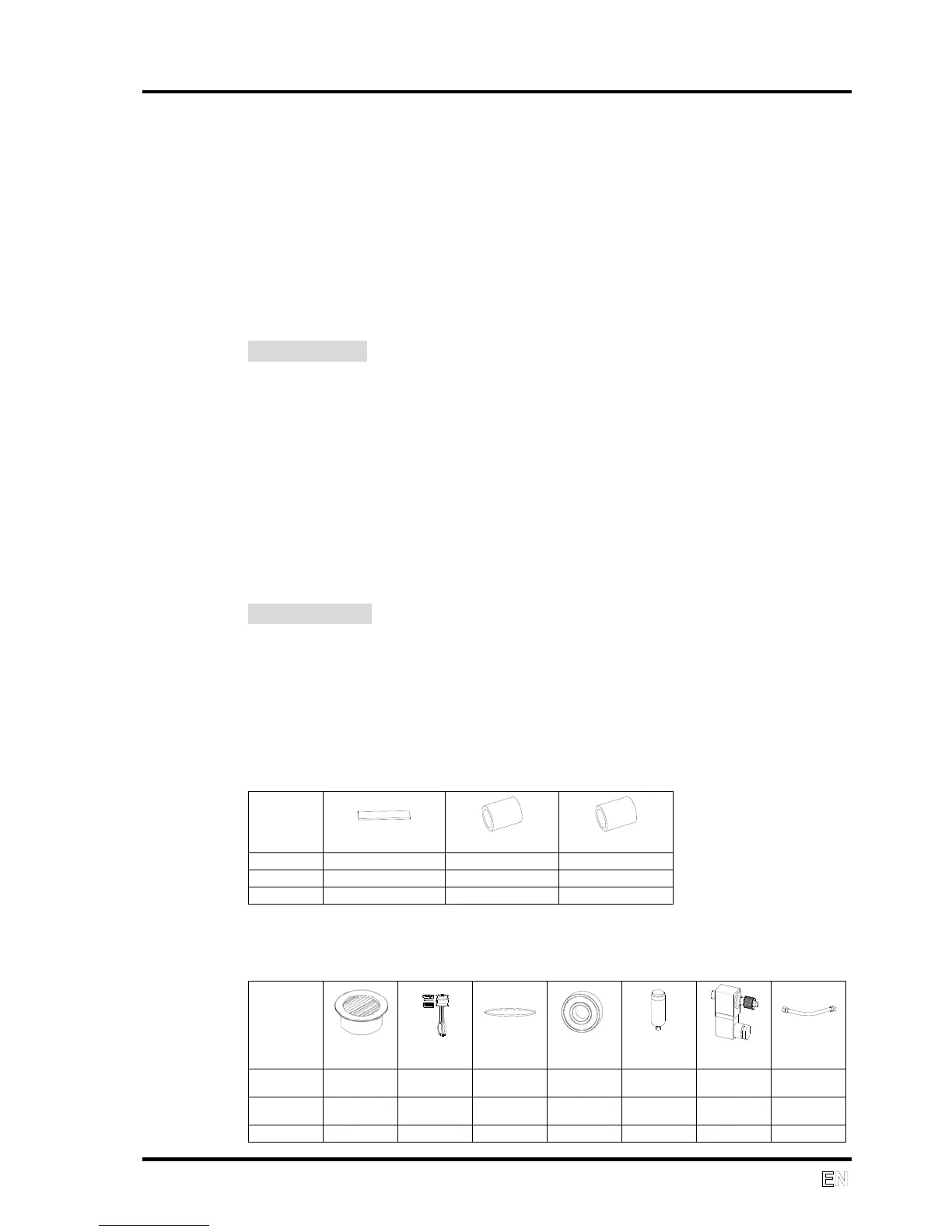

Service kit
Type DK50 DS Part No. 604041077-000
A
4000 hrs. Input filter Filter Filter
Type 4KC-500 40 µm 5 µm
Number 025000018-000 025200142-000 025200113-000
pc 1 1 1
typ DK50 DS basic, standard 230V Part No. 604041078-000
typ DK50 DS basic, standard 100-120V Part No. 604041079-000
typ DK50 DS advanced 230V/ 50Hz Part No. 604041091-000
typ DK50 DS advanced 100-120V Part No. 604041092-000
B
8000 hrs . Suction filter
Piston with
rod
O-ring Bearing
Filter cover Solenoid
complete
Hose
Type 05W
according to
model
D50x2 6204 2RS
bubble to
AF20,AW20
according to
model
DN8x400
Number
025200194
-000
073000109
-000
024000881-
000
025900018-
000
072000009-
000
pc 1 1 2 1 2 1 1
