MAINTENANCE
SM-DK50 DS-EN-20_02-2016 25

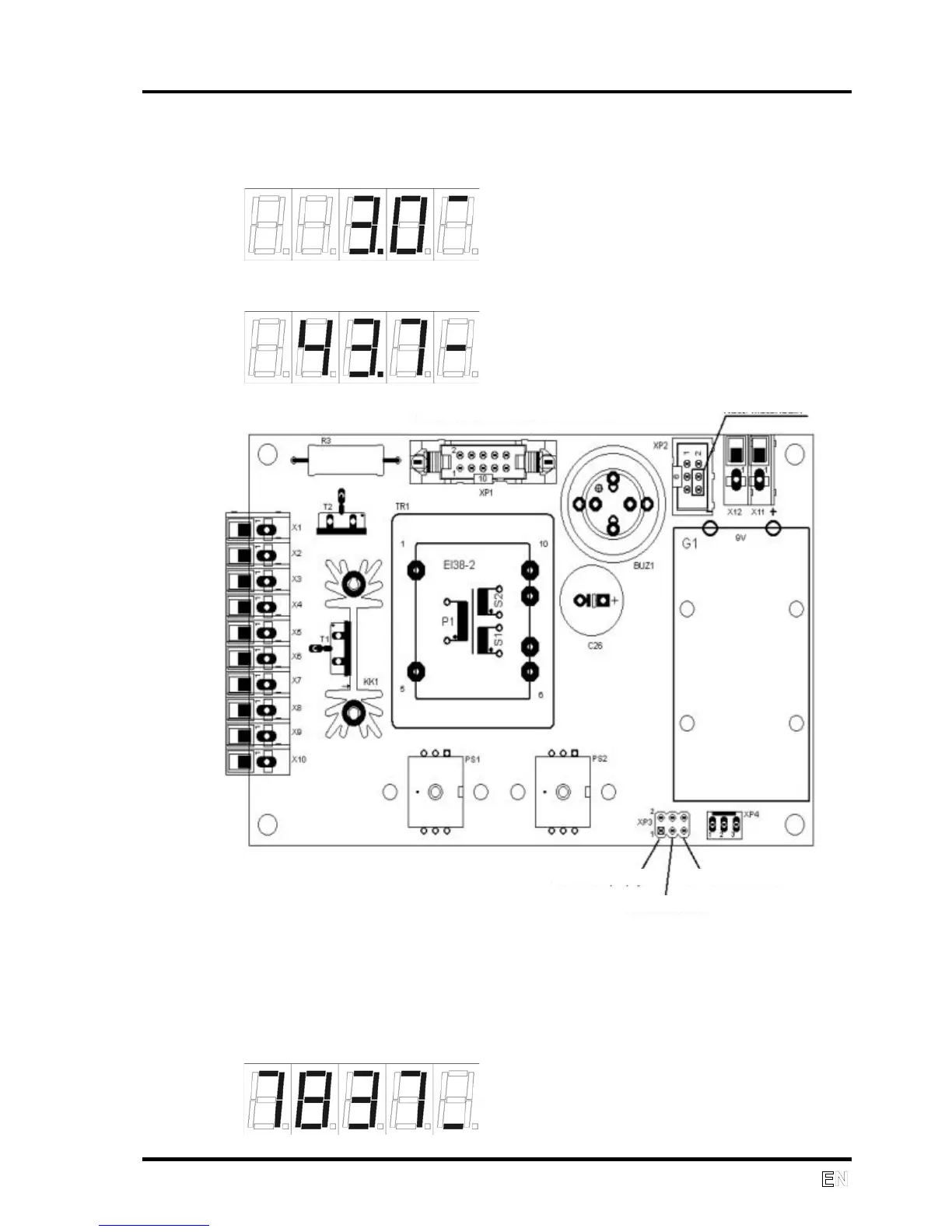

RSK10 layout – component side
Motor hour set up
Calibration jumper
Display PSI
Service Display
RSK10 components in Fig. 1. The “Service Display” and “Calibration Jumper”
jumpers are disconnected.
Outlet pressure in bar (“PSI” jumper disconnected)
Outlet pressure in PSI (“PSI” jumper shorted)
Fig. 1 – Positioning of RSK10 components
If the number of compressor motor hours since the previous service work
exceeds 4000, the value “4000” will alternate with the outlet pressure on the
screen at a 2 second interval. This indicates the need for a service inspection
of the compressor.
The display will show the hours on the compressor motor once pressed.
