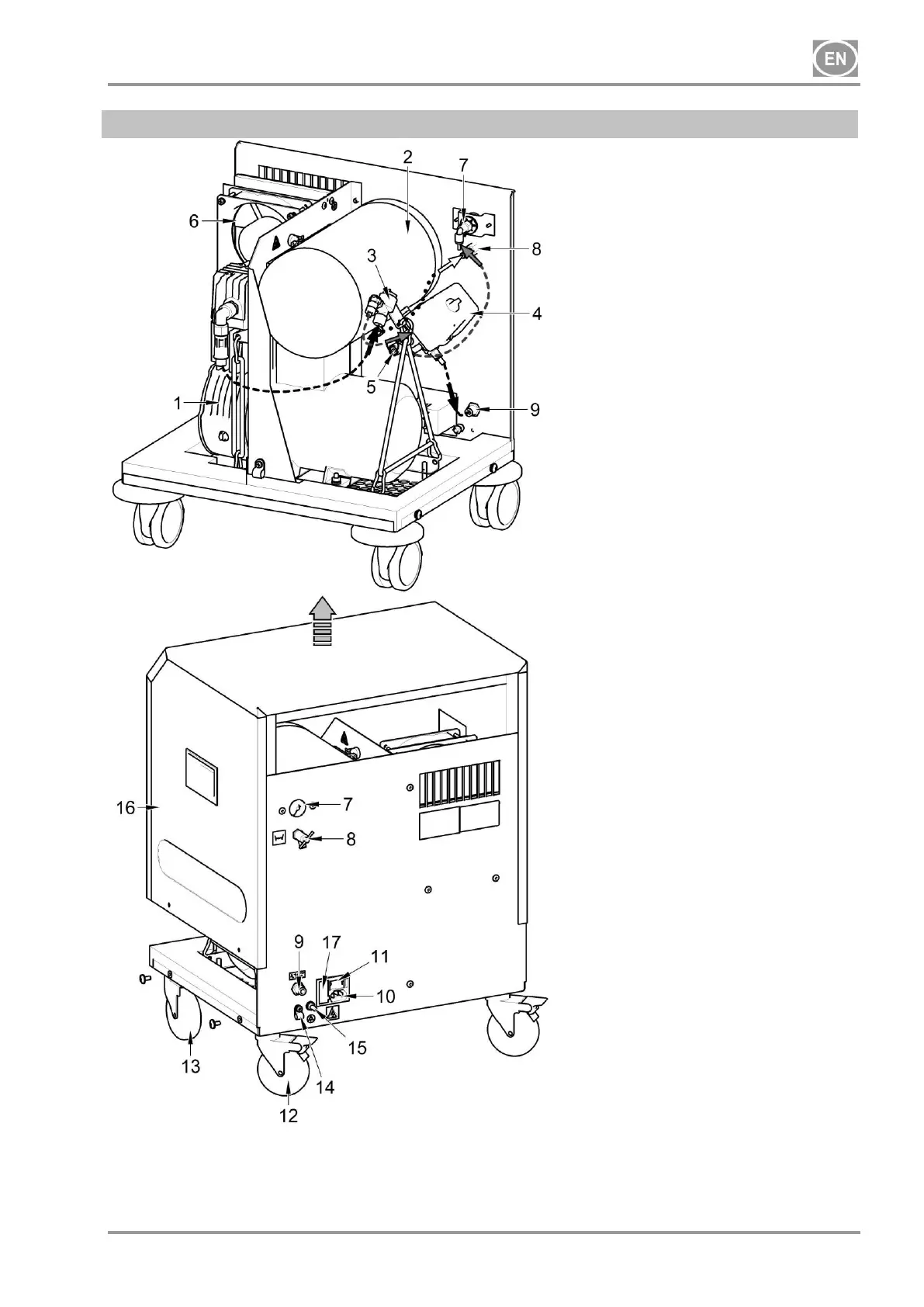

Fig. 1: Compressor
Description for Figures::
1 Compressor motor
2 Air tank
3 Check valve
4 Pressure switch
5 Safety valve
6 Fan
7 Manometer
8 Drain valve
9 Pressurized air output
10 Connector
11 Switch
12 Caster
13 Baraked caster
14 Fastener of power cord
15 Equipotential (ground) pin
16 Compressor cover
17 Fuse housing with fuses
