DK50
NP-DK50 simple s DE-4_06-2020 - 46 - 06/2020

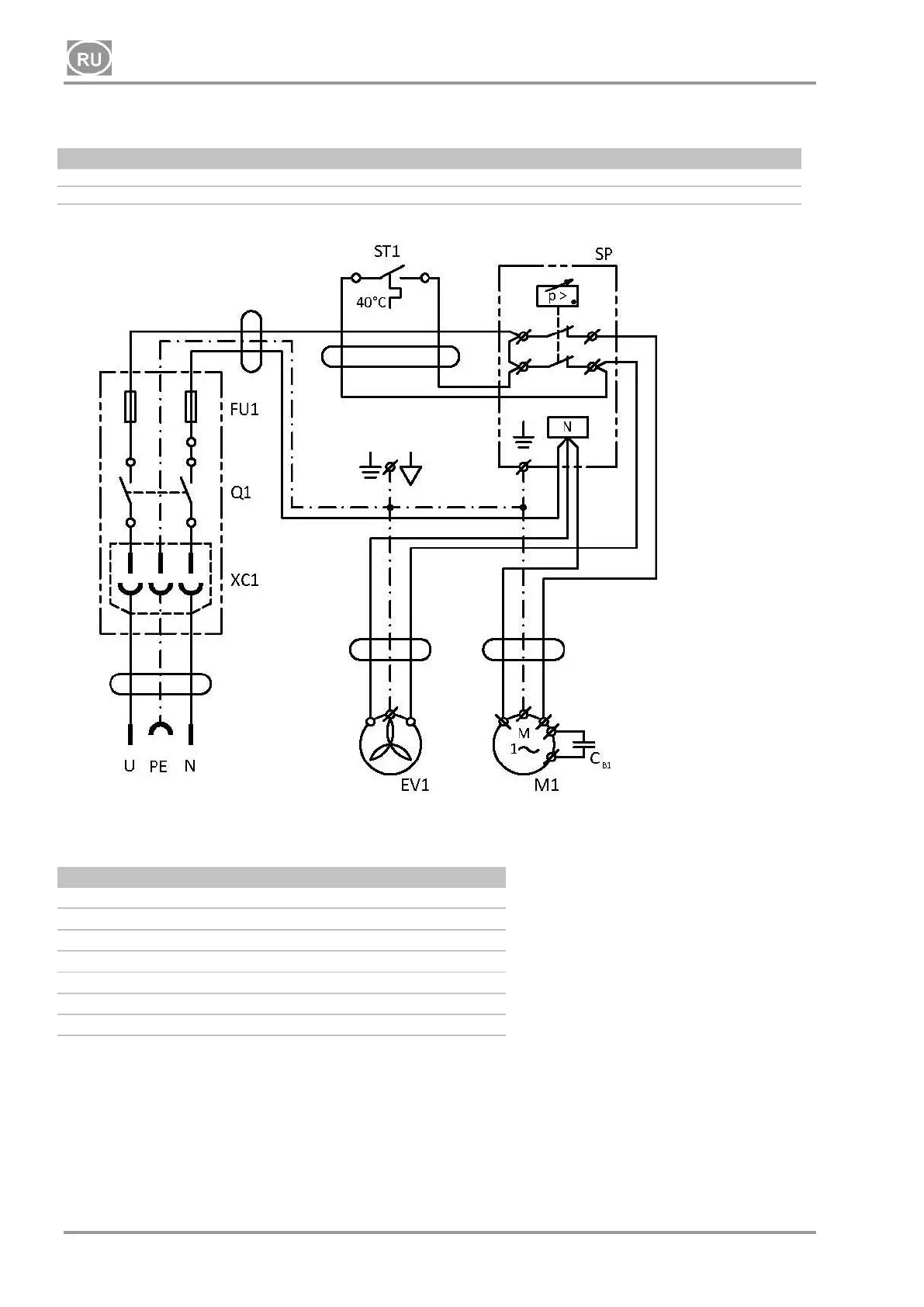

15. ANSCHLUSSDIAGRAMM
DK50
1/N/PE 230 V, 50 Hz
ELEKTRISCHES OBJEKT 1. KAT.
Legende für Elektroschaltplan
M1
Motor des Kompressors
E1
Ventilator des Kompressors
ST 1
Wärmeschalter
CB1
Kondensator
SP
Druckschalter
FU
Sicherungen
Q1
Hauptschalter
XC1
Anschluss
