13. PNEUMATIC CONNECTIONS
13.1. Connecting to the compressed air outlet
Dental compressor with
a compressed air outlet, OUT (9),
located in the front of the box.
Connect pressure hose for
connection to the relevant dental
device to coupling (9) –
pressurized air output.

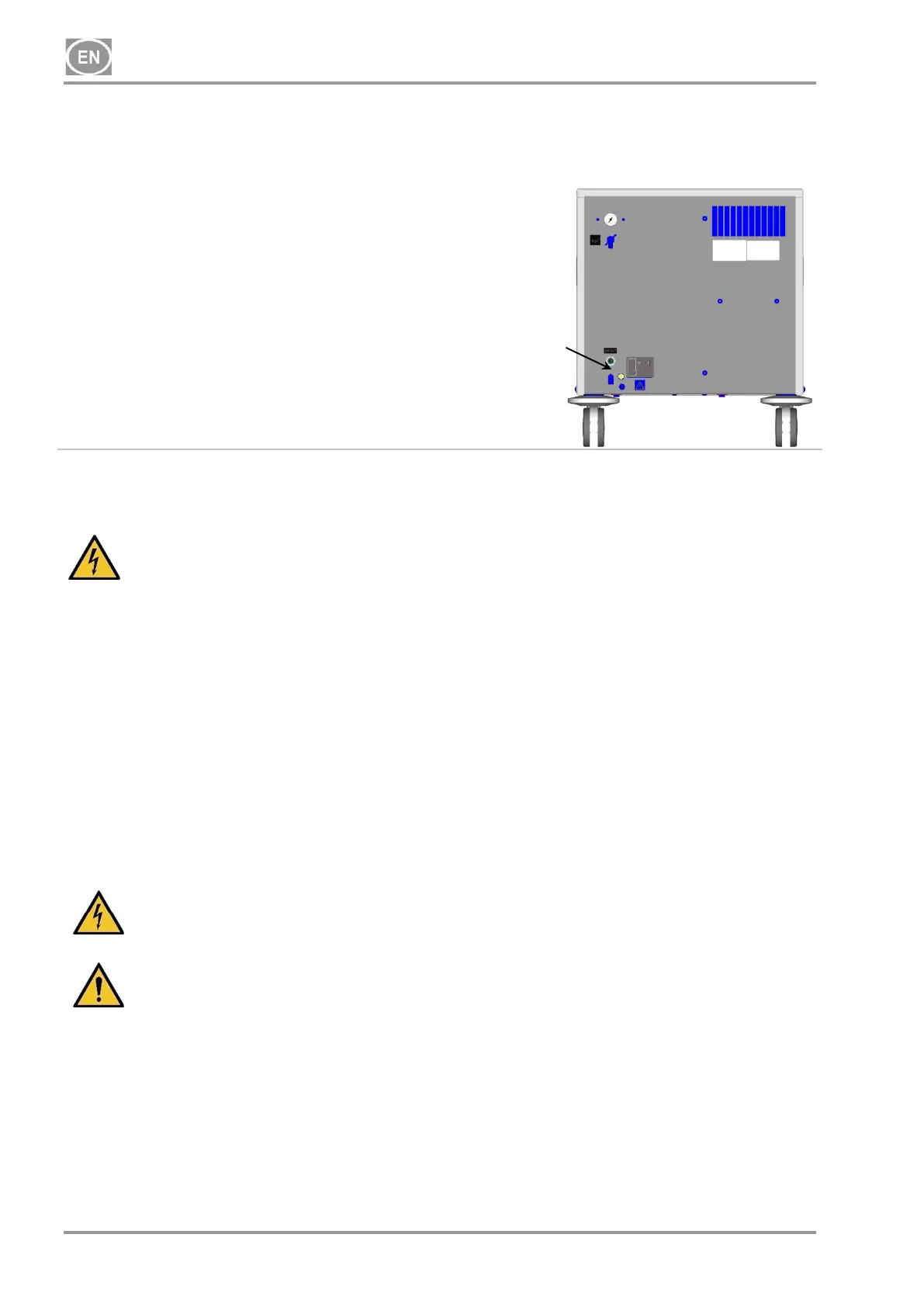

Fig.5
14. ELECTRICAL CONNECTION
(Fig.1)
 Keep the socket easily accessible to ensure that in an emergency the appliance can be safely
disconnected from the mains.
 Connection to the power distribution box shall be protected with a locking element.
 Connection of the ground connection (15) to other appliances must adhere to local electrical
regulations.
 Fasten down the electrical cord through the holder (14).
 The device is protected by fuses located in the fuse housing (17) beneath the cover of the main
switch.
Electrical cord may not contact the hot parts of a compressor. Insulation could be
damaged!
If any electrical cord or air hose is damaged it must be replaced immediately.
Plug the electrical cord into the mains.
The device is equipped with a grounded plug.
Make sure this connection complies with local electrical codes.
The mains voltage and frequency must comply with the data stated on the device
label.
Ensure the electrical cable does not touch hot compressor components. Risk of
electric shock!
