Multi-Speaker Applications
The D400 is specifically designed for multi-speak-
er applications. This amplifier is two Ohm stable
and provides three sets of speaker terminals for
easy connection of multiple speakers. With cool-
running Class-T Digital Technology, Buffered Loop
Outputs, and advanced Trigger options, the D400
can provide ample power for even the most power
hungry applications.
Multiple Stereo Speakers in a Zone
The D400 is set up to easily power three stereo
pairs of eight Ohm speakers (or any other combi-
nation that adds up to more than a two Ohm load).
This makes it ideal for powering large areas with
multiple speakers that will all play the same audio
signal. Examples include large outdoor areas,
ballroom/party rooms, gymnasiums, hallways, or
any other area with multiple speakers.
2. Connections & Applications
WIRING CONSIDERATIONS
Speaker Wires
14-18 AWG Speaker Wire
Audio Cables RCA Type Patch Cables
Triggers 2 Conductor Wire
w/ Mono Mini-Plug

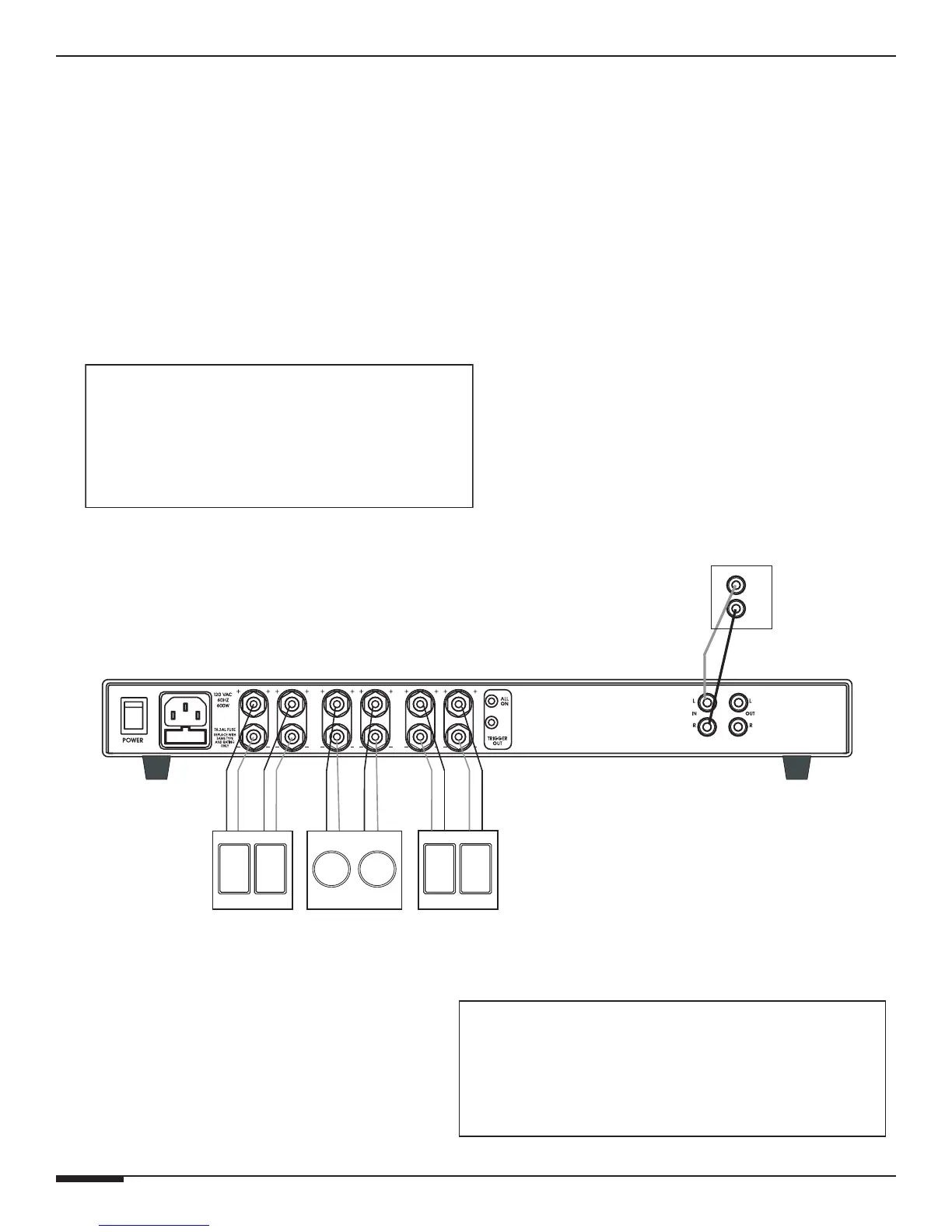

Multiple-Speaker Stereo Zone
• Audio Source to Line Inputs
• All Speakers Ramp Volume Up/Down
Simultaneously
