D400/D401 INSTALLATION MANUAL

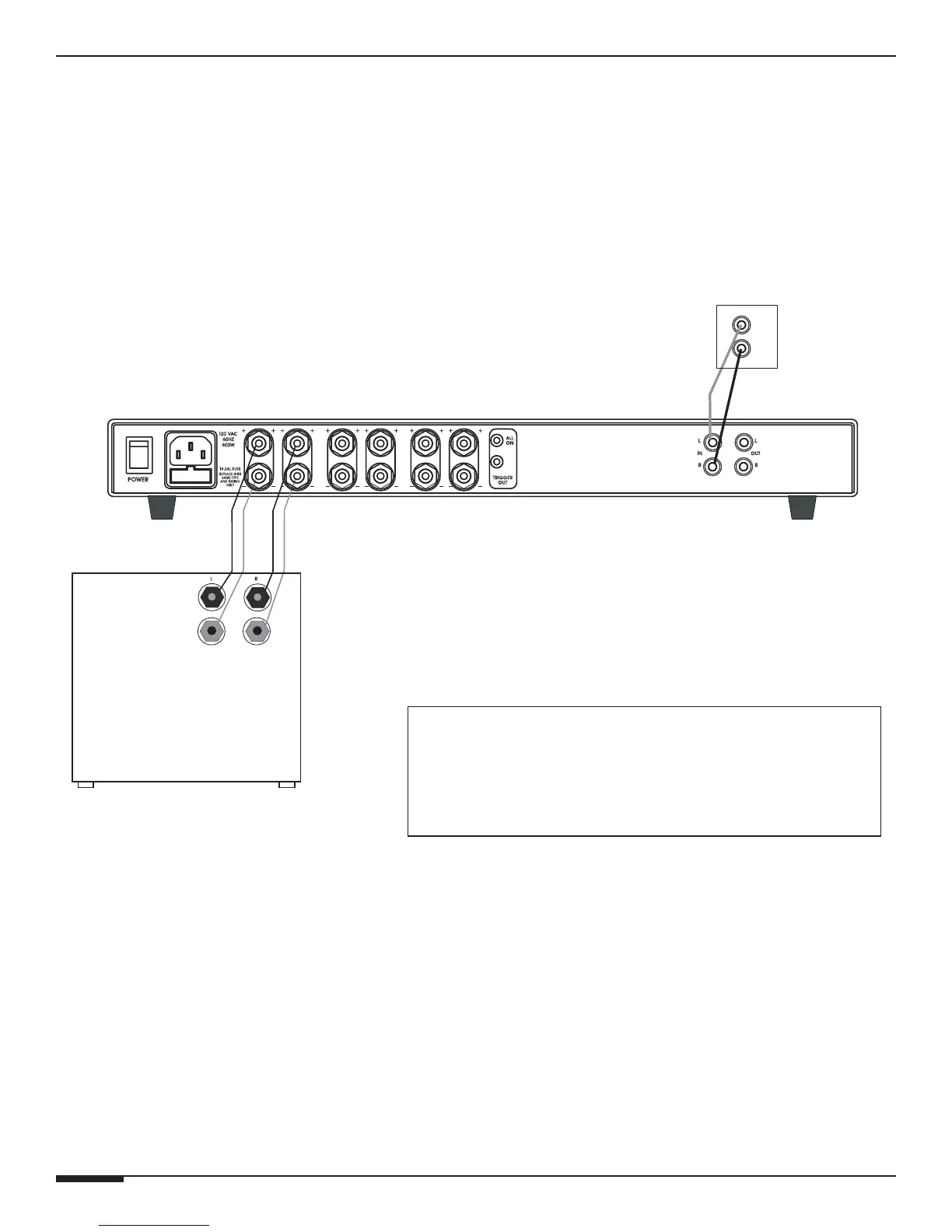

Powering a Passive Subwoofer
Connect one pair of the D400's Speaker Outputs to the speaker Input terminals
of a passive subwoofer as shown below.
Audio
Source
L
R
RCA Patch
Cables
D400 Rear
Subwoofer
HI LEVEL INPUT
Subwoofer
• Audio Source to Line Inputs
• Speaker Outputs 1 & 2 to Subwoofer Hi-Level Inputs
Subwoofer Volume Increases/Decreases w/ Audio Source
