D400/D401 INSTALLATION MANUAL
System Expansion-Stereo
ELAN Engineers had flexibility and system expansion in mind when they
designed the D400. To add additional stereo rooms or zones to a basic sys-
tem, simply add an another D400. To expand zones or subzones to include
additional channels of amplification, use the Loop Outputs to send audio to
additional D400s or other amplifiers.

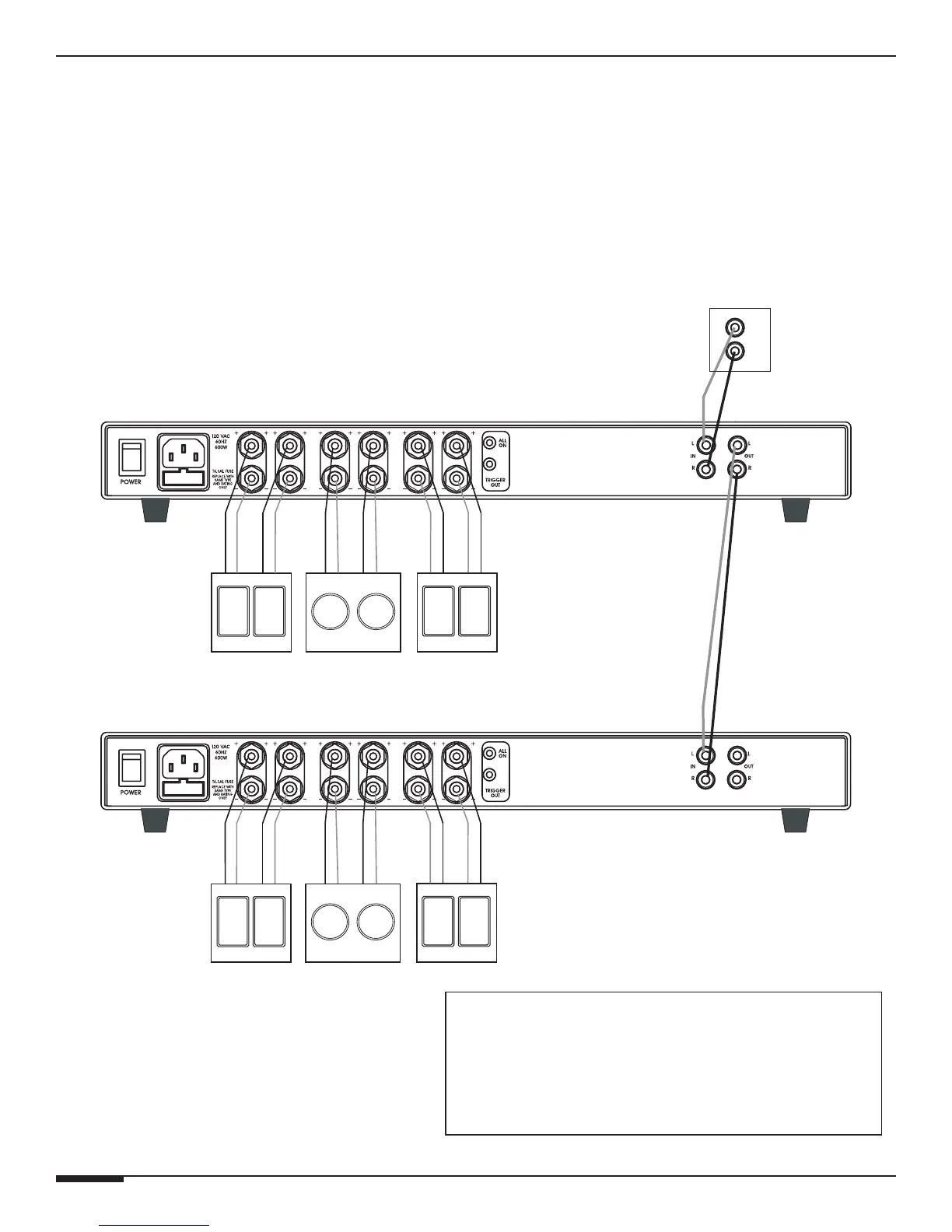

Audio
Source
L
R
RCA Patch
Cables
D400 Rear
RCA Patch
Cables
D400 Rear
System Expansion-Stereo
• Audio Source to Line Inputs of D400 #1
• Line Outputs to Line Inputs of D400 #2
All Speakers Connected to Both Amps Volume
Ramps Up/Down Together
