D400/D401 INSTALLATION MANUAL
Multiple Mono Speakers in a Zone

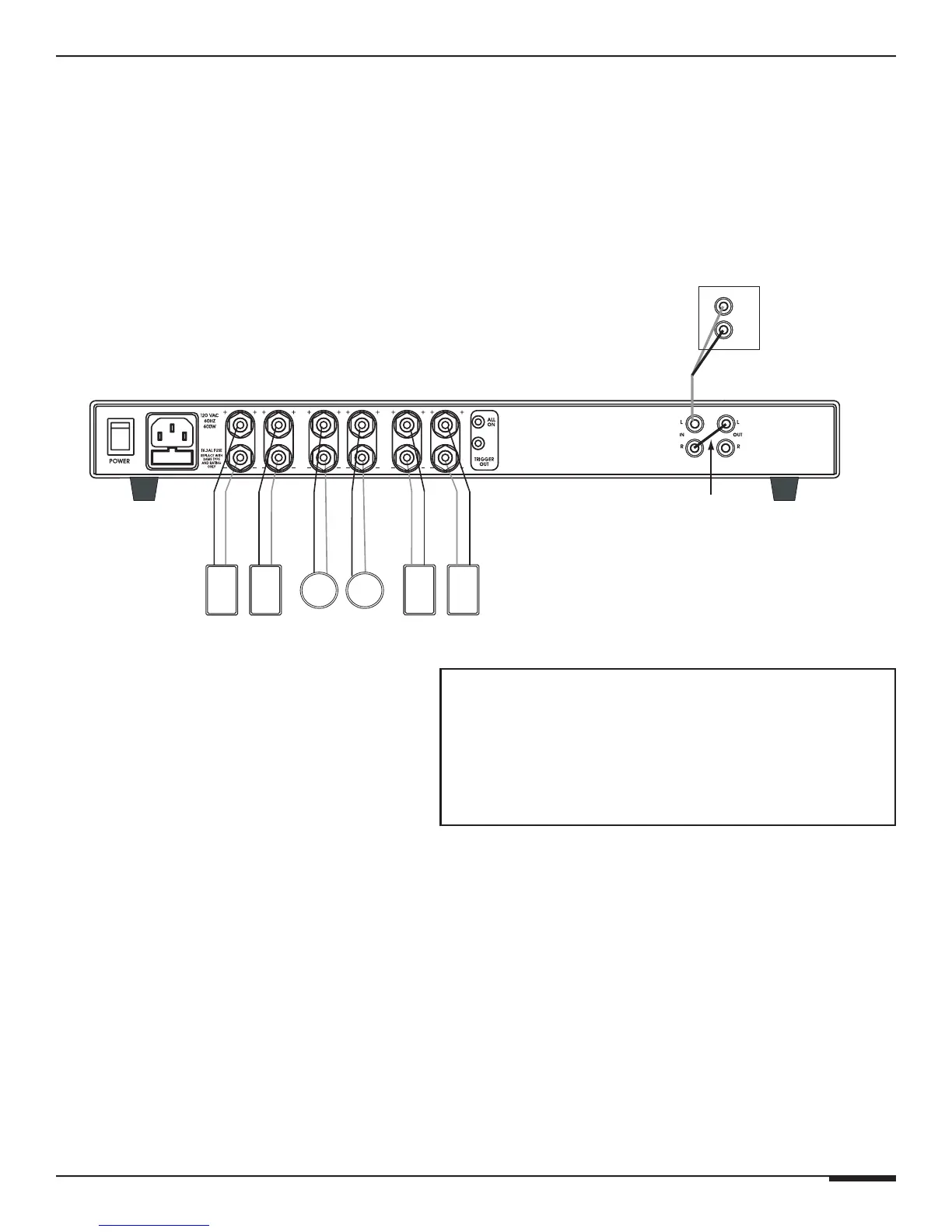

Use RCA Y Cables to connect the D400's Input and Buffered Loop Output as
shown below to create 6 mono channels. This is particulary useful for large
areas where stereo imaging is not possible.
Audio
Source
L
R
RCA “Y”
Cable
D400 Rear
RCA Mono
Cable
Multiple Mono Speakers
• Use RCA “Y” Cable to Combine L & R Audio
• Audio Source to Line Input 1
• Line Output 1 to Line Input 2
All Speakers Volume Ramps Up/Down Together
