D400/D401 INSTALLATION MANUAL

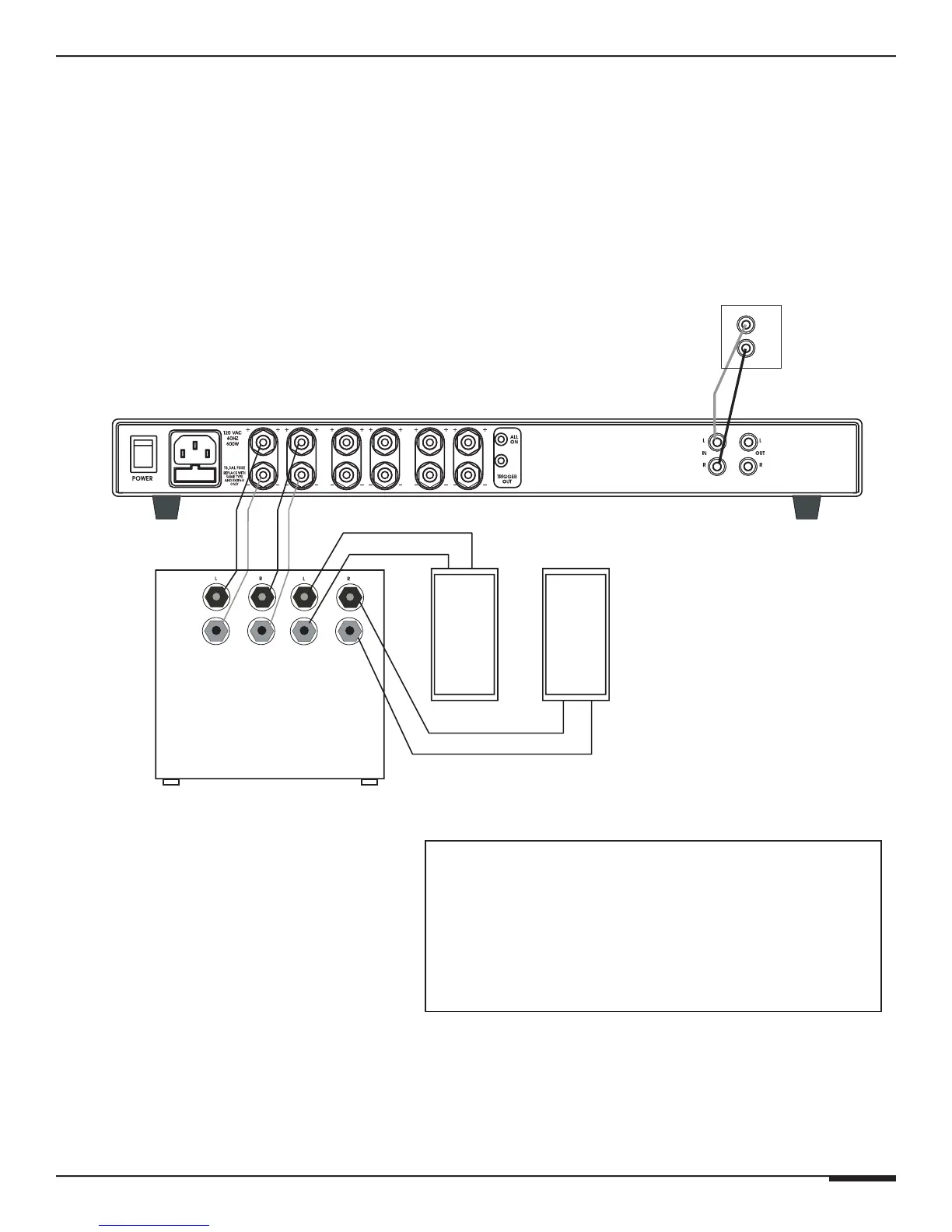

Powering a Passive Subwoofer w/ Satellite Speakers
The high power capabilities of the D400 make it an excellent chice for subwoofer/
satellite (sub/sat) applications. Run a pair of speaker outputs from the D400 to
the subwoofer speaker inputs. Run speaker wire from the subwoofers line-level
Outputs to the satellite speakers as shown below..
Audio
Source
L
R
RCA Patch
Cables
D400 Rear
Subwoofer
HI LEVEL OUTPUT
HI LEVEL INPUT
Subwoofer/Satellite
• Audio Source to Line Inputs
• Speaker Outputs 1 & 2 to Subwoofer Hi-Level Inputs
• Subwoofer Hi-Level Outputs to Satellite Speakers
Subwoofer/Satellite Volume Increases/Decreases
w/ Audio Source
