D400/D401 INSTALLATION MANUAL
Specifications
Audio Section
Power Rating - RMS
Output Power . . . . . . 2 x 80W RMS @ 8 Ohms (Both Channels Driven)
Output Power . . . . . 2 x 135W RMS @ 4 Ohms (Both Channels Driven)
Output Power . . . . . 2 x 200W RMS @ 2 Ohms (Both Channels Driven)
Frequency Response . . 20Hz to 20kHz, +/-.5dB into 8 Ohms
Full Power Bandwidth . . . . . . . . . . . . . . . . . . 10Hz to 50kHz
Signal-To-Noise . . . . . . . . . . . . . . . . . . > 102dB (A-weighted)
Channel Separation . . . >-70dB (channel to channel @1kHz)
Total Harmonic Distortion . . . . . . . . . . . . . . . < .01% @ 1kHz
< 0.04% @ 10kHz
Intermodulation Distortion . . . . . . . . . . . . . . . . . . . . .< 0.1%
Voltage Gain (AV) . . . . . . . . Continuously Variable from 0 - 27
Slew Rate . . . . . . . . . . . . . . . . . . . . . . . . > 20V/microsecond
Input Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . 49k Ohms
Input Sensitivity . . . . . . 0.9V RMS (150W @ 4 Ohms-Vol Max)
Connectors
Input/Loop Outputs . . . . . . . . . . . . . . . . . . .Gold RCA Phono
Speaker Output . . . . . . . . . . . . . . . . .Five-Way Binding Posts
Power
AC Power Requirements . . . . . . . . . . . . 120 VAC, 750 Watts
Power Supply . . . . Ultra-High Efficiency Toroidal Transformer
Triggers
Remote Trigger Inputs . . . . . . . . . . . . . . . . . 5 to 24 Volts DC
Trigger Loop Output . . . . . . . . . . . . . . . . . . . . +12VDC @0.1A
Dimensions/Weight
Dimensions. . . . . . . . 17 x 1¾ x 15 (in)/43.18 x 4.46 x 38.10 (cm)
Rack Face . . . . . . . . . . . . . . . . . 19 X 1¾ (in)/48.26 x 4.46(cm)
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 lbs/10 kg
Power
Switch
AC Power
Plug
Speaker
Outputs
Line Inputs/
Loop Outputs
Trigger
Out
ALL ON
Trigger
Blue Signal
Presence
LEDs
Channel
Select
Display
Channel Select
Down/Up
Buttons
Volume
Down/Up
Buttons
Volume
Level
Display
Red Channel
Clipping
LEDs
D400 Front
D400 Rear
Power
LED
L
L
L
R
RR
CH 2
VOL 54

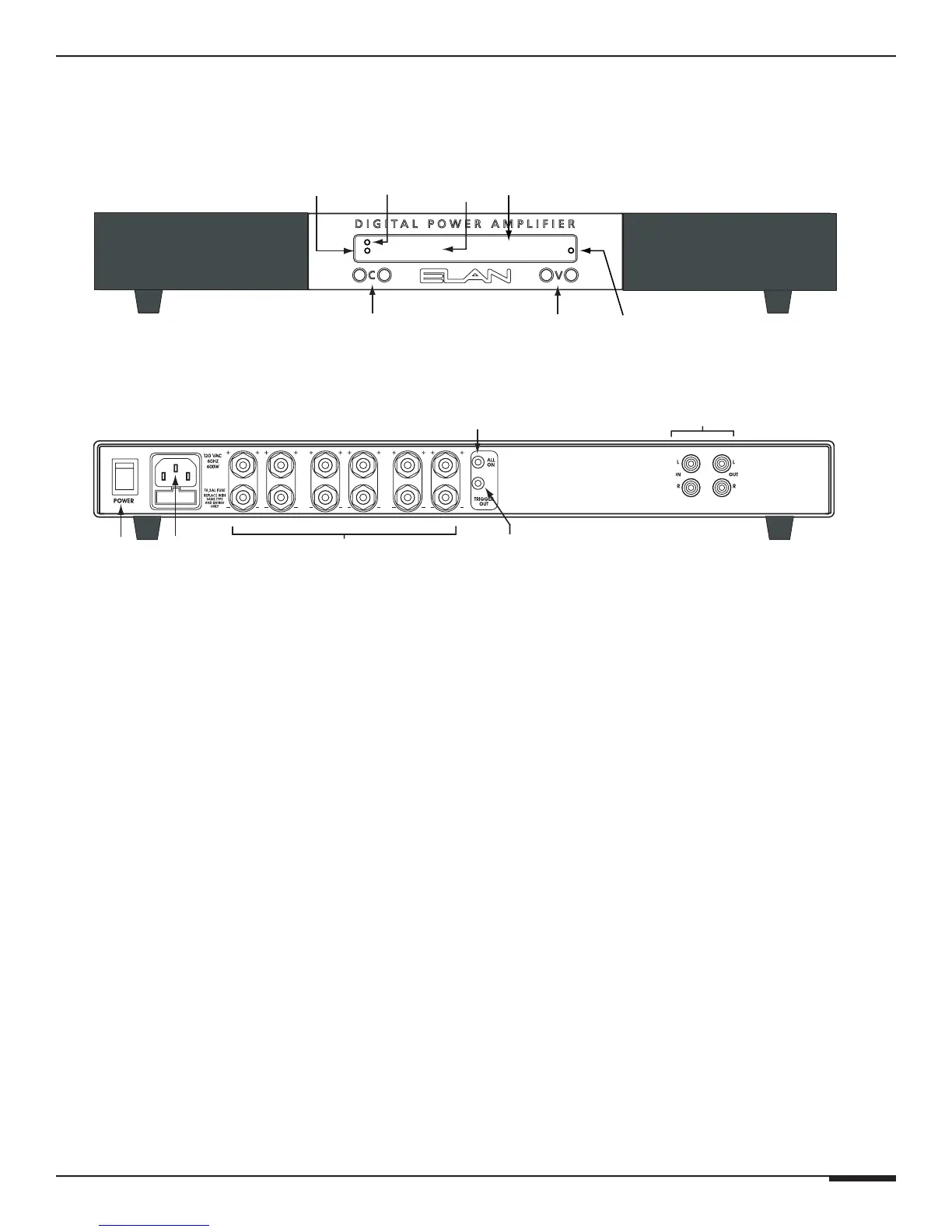

D400 Front/Rear
