Media (Continued)
Source Samples
The following images are to provide examples only of control pages for various sources.
Your actual source controls may look different.
This example is a cable box with DVR capabilities. Note the “MAIN” and “DVR” tabs,
indicating two pages of controls for the source.

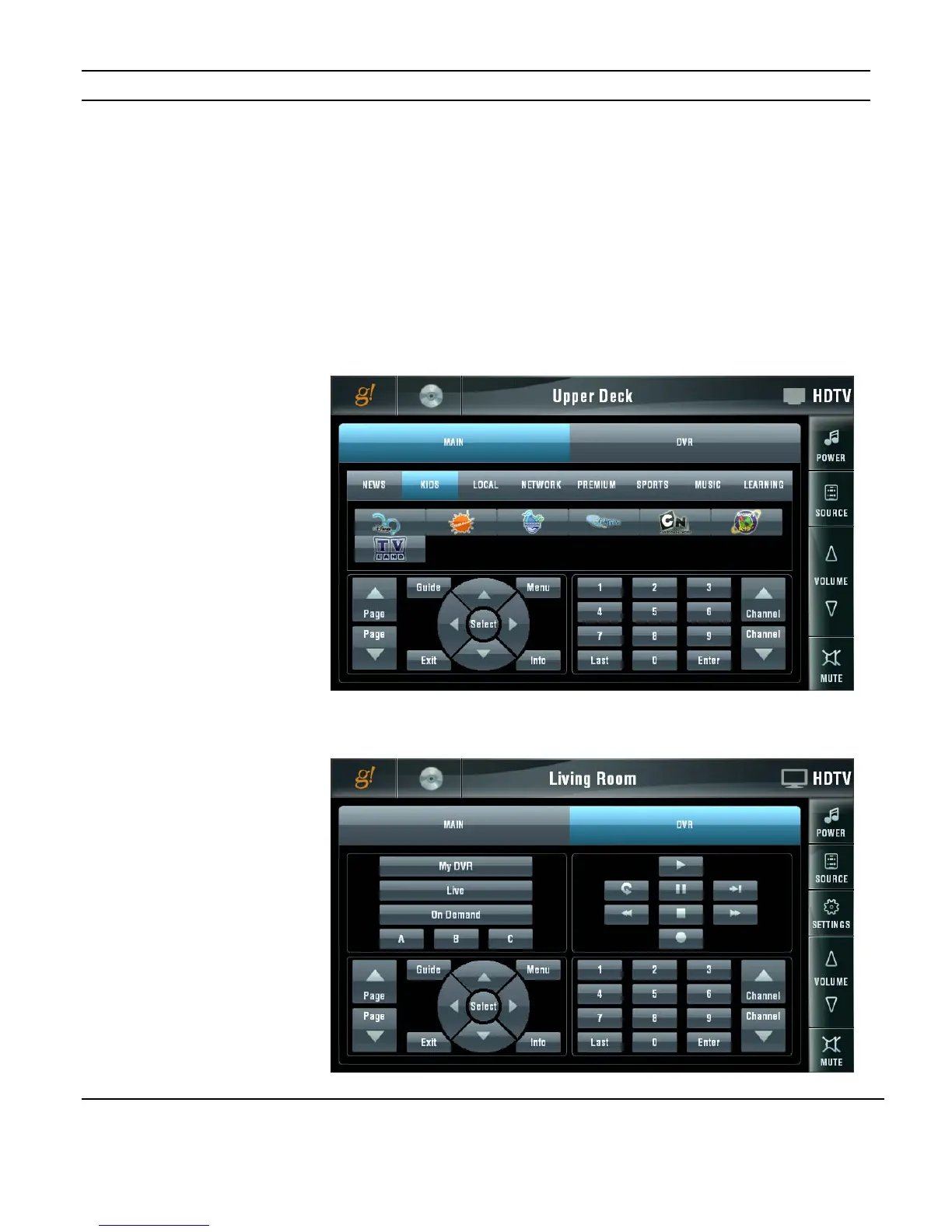

Figure 3-70:
Media Page
Example: Cable Box
Main Page
Figure 3-71:
Media Page
Example: Cable Box
DVR Page
