Chapter 2: TS7 Controls and Display

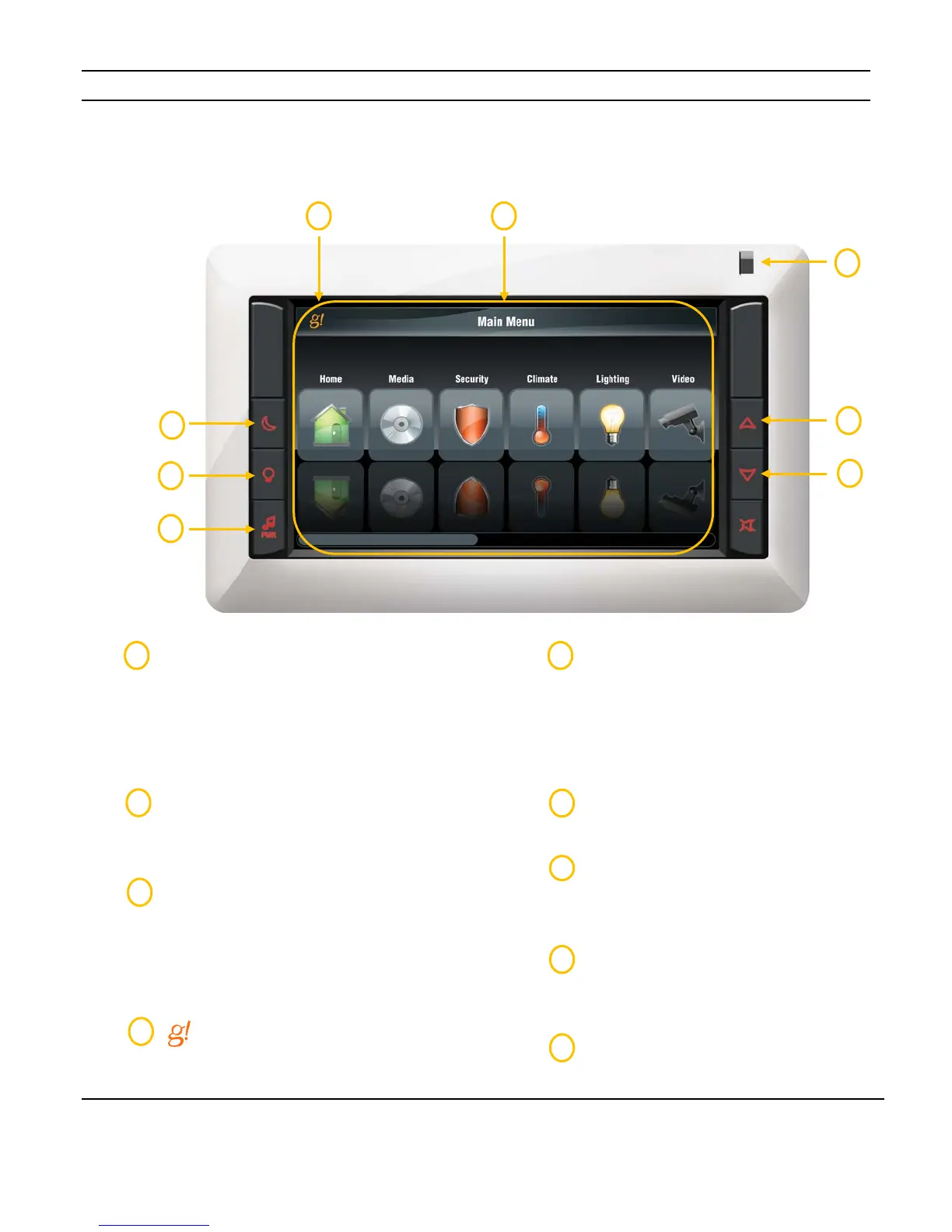

Figure 2-1: TS7 Front Panel
Controls and Display
Mute Button
Press to mute or un-mute the audio in the zone.
9
Light Function
Press to access lighting controls.
Sleep Mode
Press to put the TS7 into Sleep Mode, press and
hold to power the TS7 off.
When the TS7 is off, pressing will turn the panel
on.
Zone Power Toggle / System Off
Press to turn off or on the zone the panel is
in.
Press and hold to turn the system off.
Volume Up
Press to increase the volume in the zone.
Volume Down
Press to decrease the volume in the zone.
System Information
This area displays system information, i.e. zone
selected, source selection, volume settings, etc.
Information and controls for sub-systems like
HVAC and Security are also displayed here.
Press to access the Main Menu Functions
5
4
3
6
7
1
2
3
4
5
6
7
8
8
2
1
Stylus

Elan TS7 Specifications
