ELAN HOME SYSTEMS TS7 User’s Guide
© ELAN Home Systems 2010 | All rights reserved.
Page 60
Schedule Tab (Continued)
Programming
First, select the IRRIGATION GROUP to which the schedule will apply. Each irrigation zone
in the group will be displayed. Select the schedule PERIOD, and then select a ZONE.
Adjust the BASE TIME as desired using the UP and DOWN arrows. APPLICATION TIME is
discussed on page 61.
Select which days to water for the IRRIGATION GROUP. You may select from EVEN DAYS
of the month (shown above,) ODD DAYS of the month, specific DAYS OF THE WEEK
(shown below,) EVERY DAY, or SKIP certain DAYS.

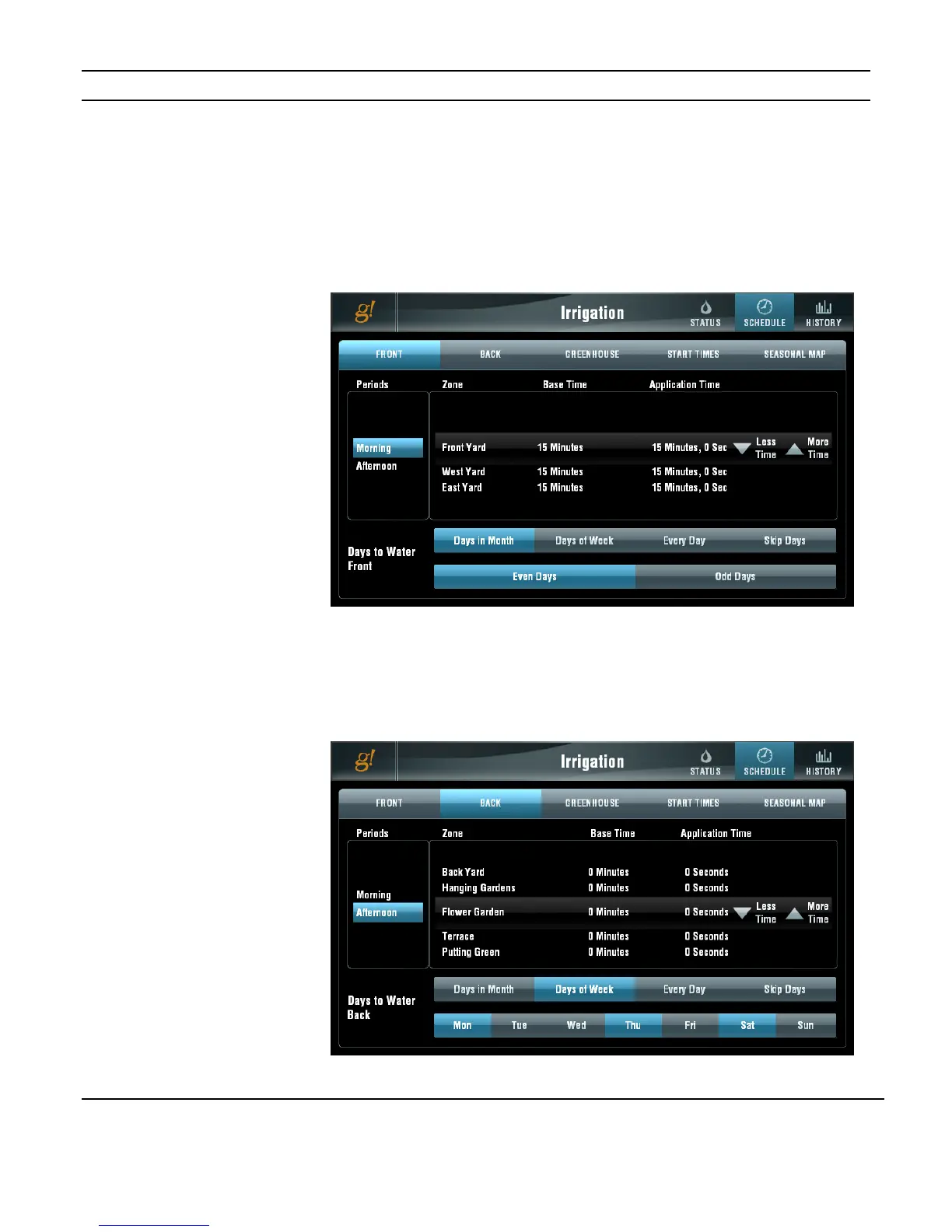

Figure 3-91:
Irrigation Page
Programming Even
Days
Figure 3-92:
Irrigation Page
Programming Days
of the Week
