6. MAIN FUNCTIONS DESCRIPTION ELBO CONTROLLI srl
Preset E346+/V+
18
6.4.2 ACUTE MOVEMENT
After having approached or framed the tool profile with
the rapid movement, to manoeuvre an axis with
precision rotate the respective blocking wheel handles
until the black bullet marker is positioned on the front
part of the machine.
Rotate the acute movement handle of the axis to the area
of interest on the screen to carry out the measurement.

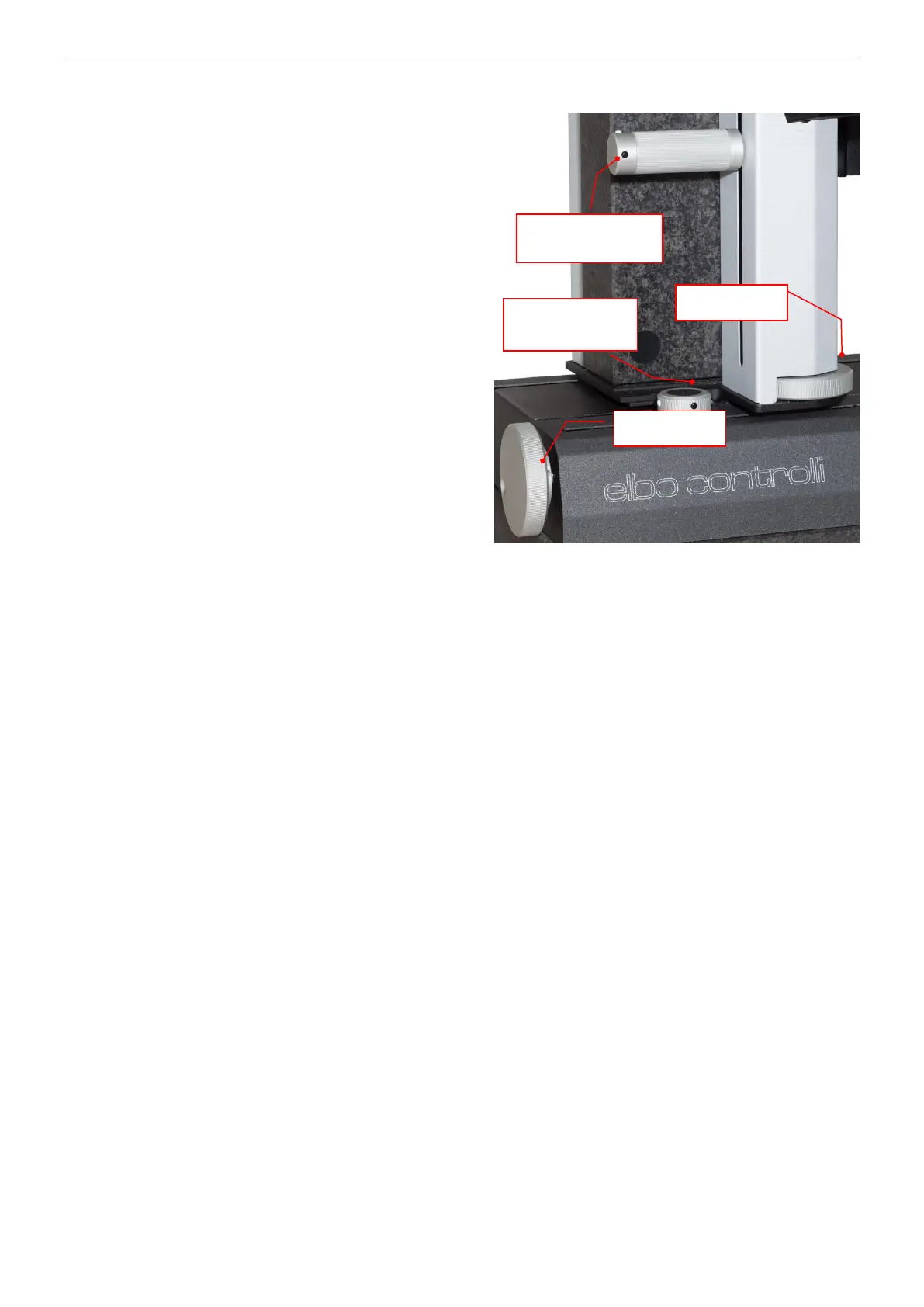

Acute movement
handle axis X
Acute movement
handle axis Z
Handle to block/unblock
axis X and indicates when
axis X is blocked
Handle to block/unblock axis Z
and indicates when axis Z is
blocked
