USER MANUAL TOP7
SW: EFPLCAC0
Date:
15/02/2016

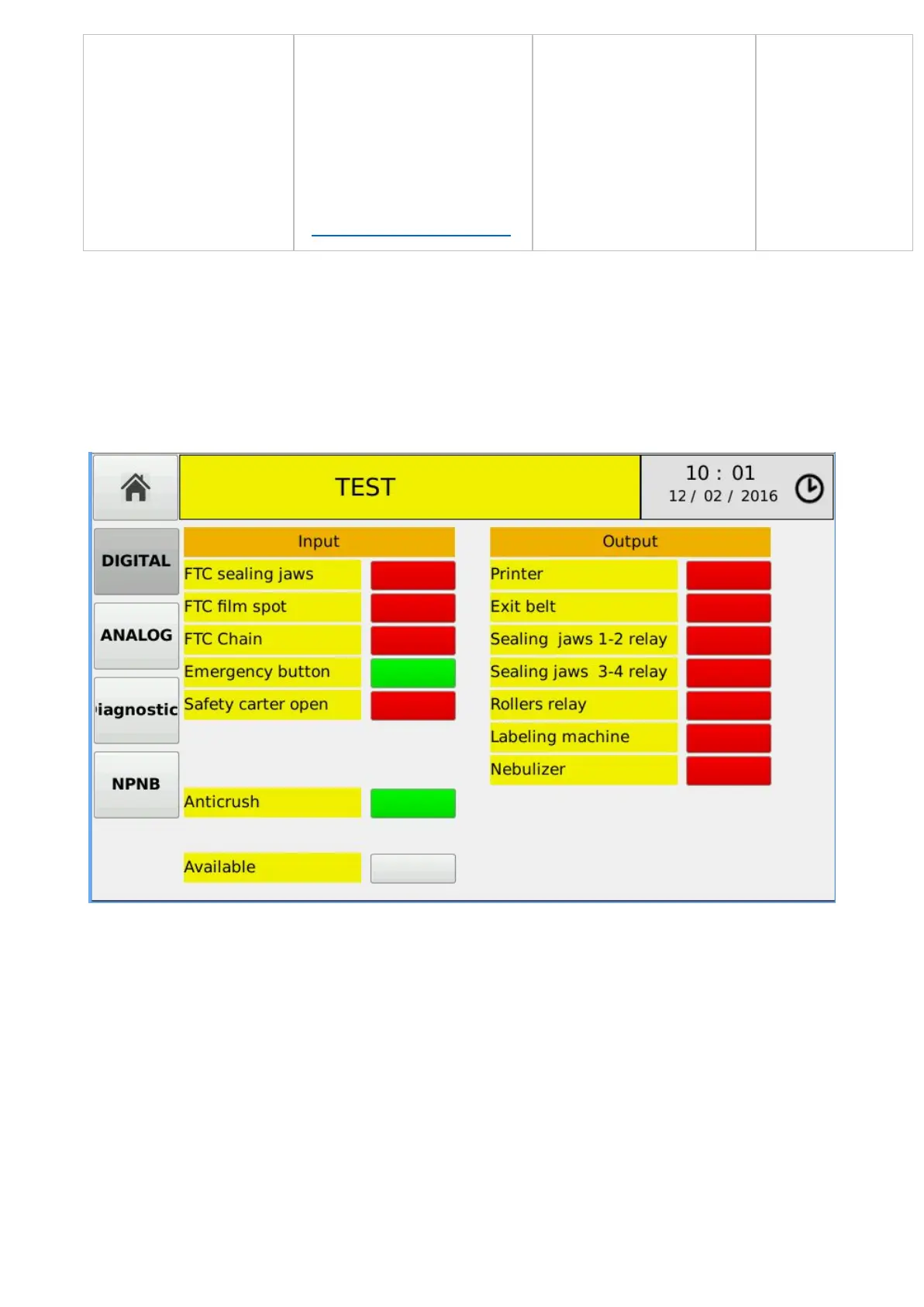

3.7 – DIGITAL I/O TEST
In this environment , is possible to test the digital resources
The "Input" column displays the digital inputs of the system , with a side panel that shows
the current status. RED means inactive, GREEN means active input. The current status of
the inputs is always managed, and then can be monitored also in a cycle in progress.
WARNING: the FTC correspond to inputs which are activated ia “pulse mode” ; is possible
that at higher speeds, their transition , may not be visible
The "Output" column ,shows the digital outputs of the system, with a side panel that allows
the change the output state . RED means inactive, GREEN means active . WARNING: for
safety reasons the manual activation of the digital outputs is only possible when the
machine stopped .
22
