The left side of the screen contains buttons to access other areas of the software. From
top to bottom these buttons allow access to:
● main menù
● digital I/O test (current environment)
● analog inputs test
● diagnostics

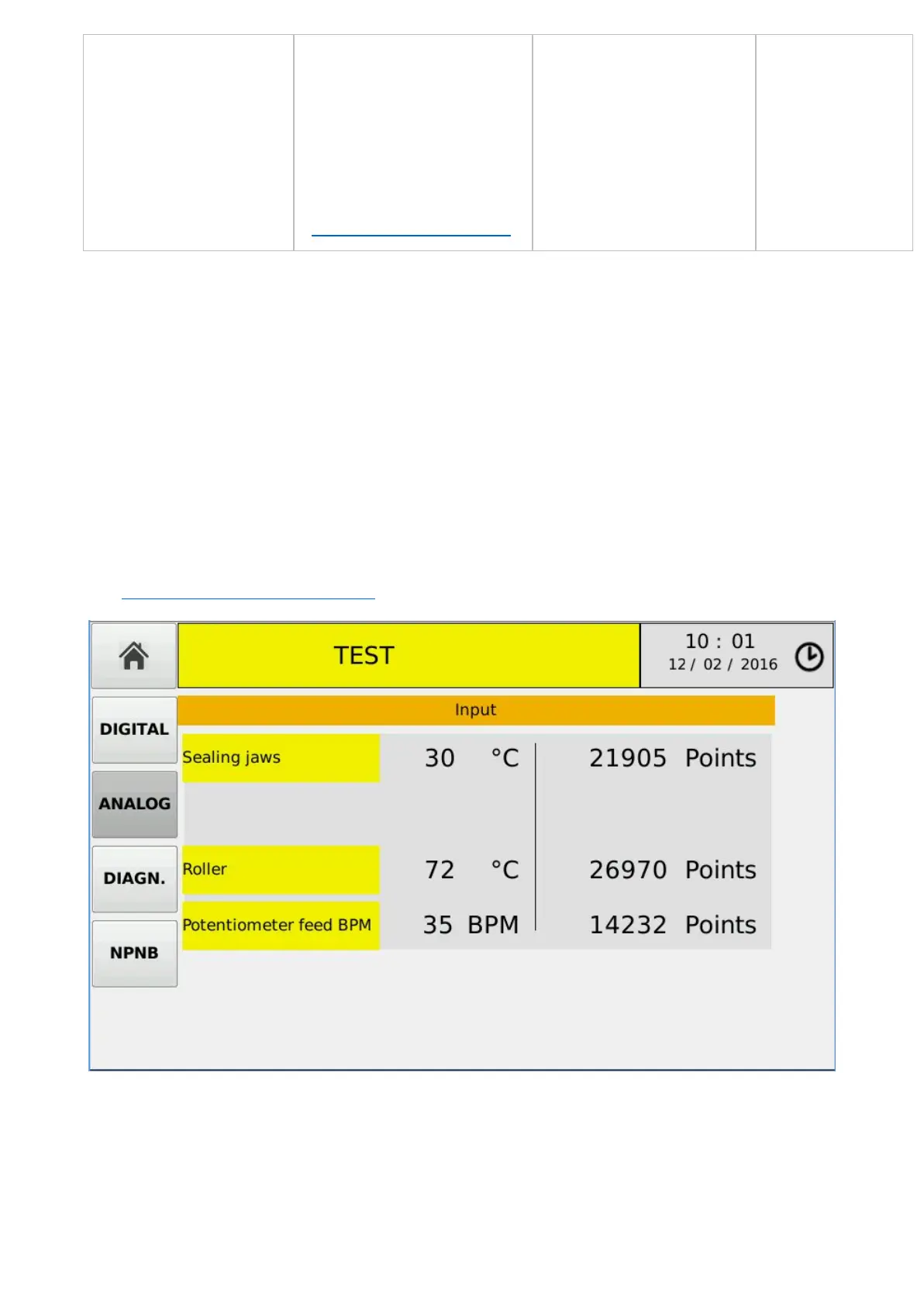

3.8 – ANALOG INPUTS TEST
In this environment you can view the current status of the analog inputs of the system.
For each of the four channels managed by the software , is present in the first column the
"analog" value of the corresponding input (degrees for the temperature sensors, BPM for
