41
With all the TMP cables attached, lower the KRX3A module into the K3 so that the connectors on the
KRX3A mate with the connectors on the SUBIN and SUBOUT interface boards (see Figure 49). The knurled
nuts are provided as handles to make holding the assembly easier. You may need to adjust the cables near the
SUBOUT board so they don’t interfere with mating the connectors. If the connection between J92 and the
KAT3 is used, form the excess cable into a loop in front of the KIO3 board.

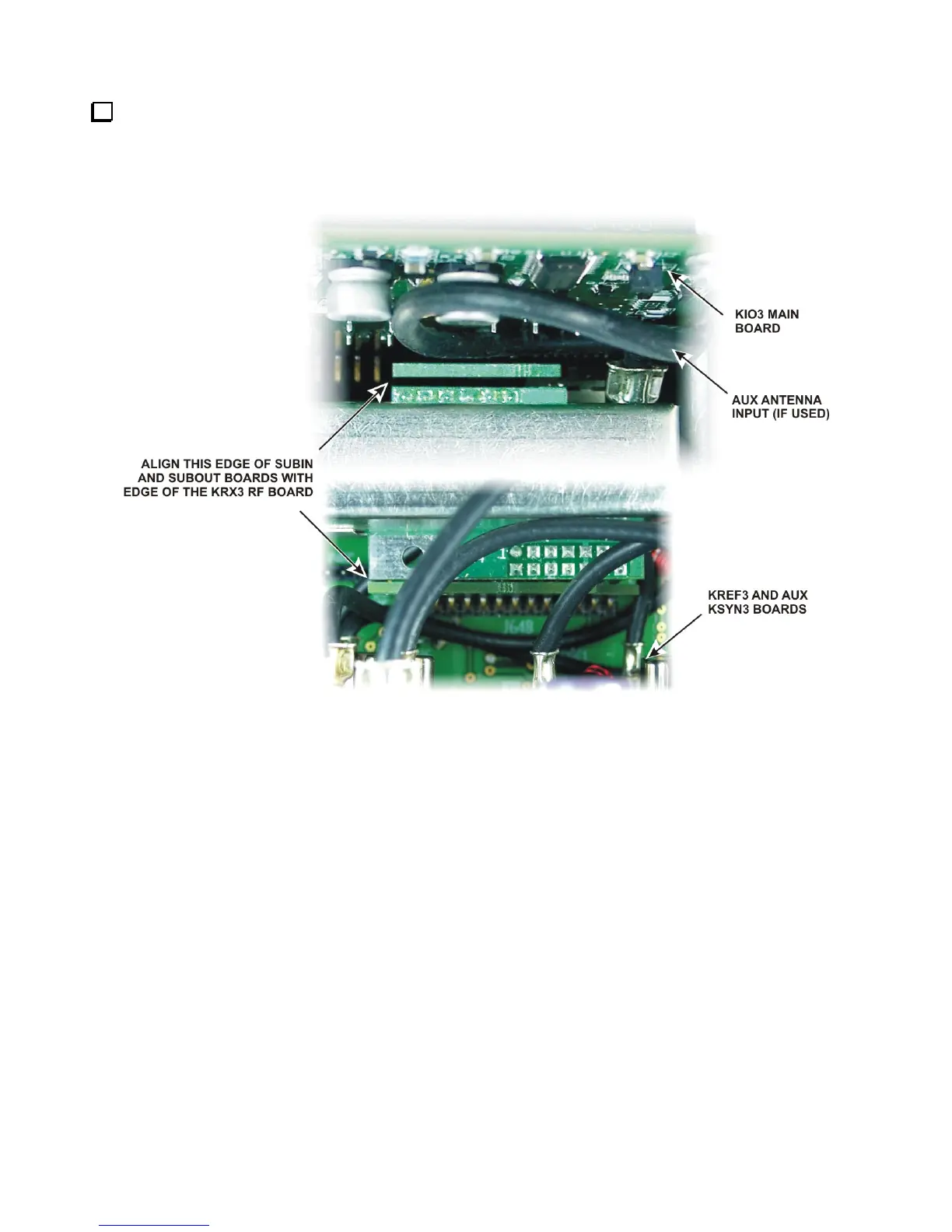

Figure 49. Aligning the SUBIN and SUBOUT Connectors.
