8 184946

5 WASHER - SHAFT SEAL Holds the

cup portion of the shaft seal to the

beater shaft. Must be lubricated.

6 SEAL - BEATER SHAFT Seals the

opening between the freezing

cylinder and the beater shaft. Do

not lubricate.

7 BUSHING - SHAFT Holds breaker

bar in beater shaft.

8 QUAD RING Separates beater

shaft and washer shaft seal.

4 Part Names and Functions (continued)

The following numbered paragraphs (1 through 8) refer to figure 4-2, above.

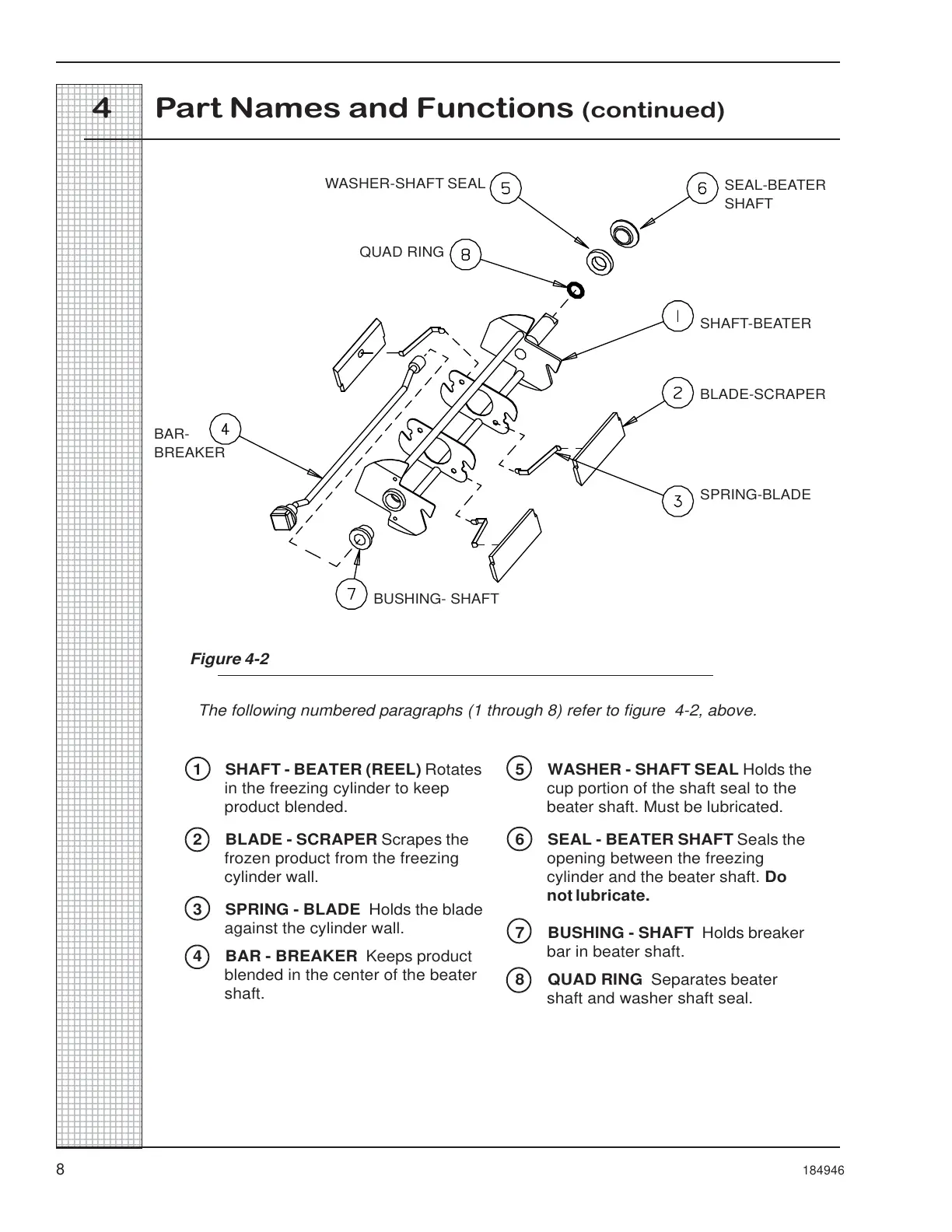

1 SHAFT - BEATER (REEL) Rotates

in the freezing cylinder to keep

product blended.

2 BLADE - SCRAPER Scrapes the

frozen product from the freezing

cylinder wall.

3 SPRING - BLADE Holds the blade

against the cylinder wall.

4 BAR - BREAKER Keeps product

blended in the center of the beater

shaft.

Figure 4-2

SEAL-BEATER

SHAFT

SHAFT-BEATER

BLADE-SCRAPER

SPRING-BLADE

WASHER-SHAFT SEAL

QUAD RING

BAR-

BREAKER

BUSHING- SHAFT
