ELECTRO FREEZE Cocktail/Slush Freezer Model 812

184946-01 3

Use only original or authorized replacement parts with this freezer.

Use of unapproved parts will void warranty.

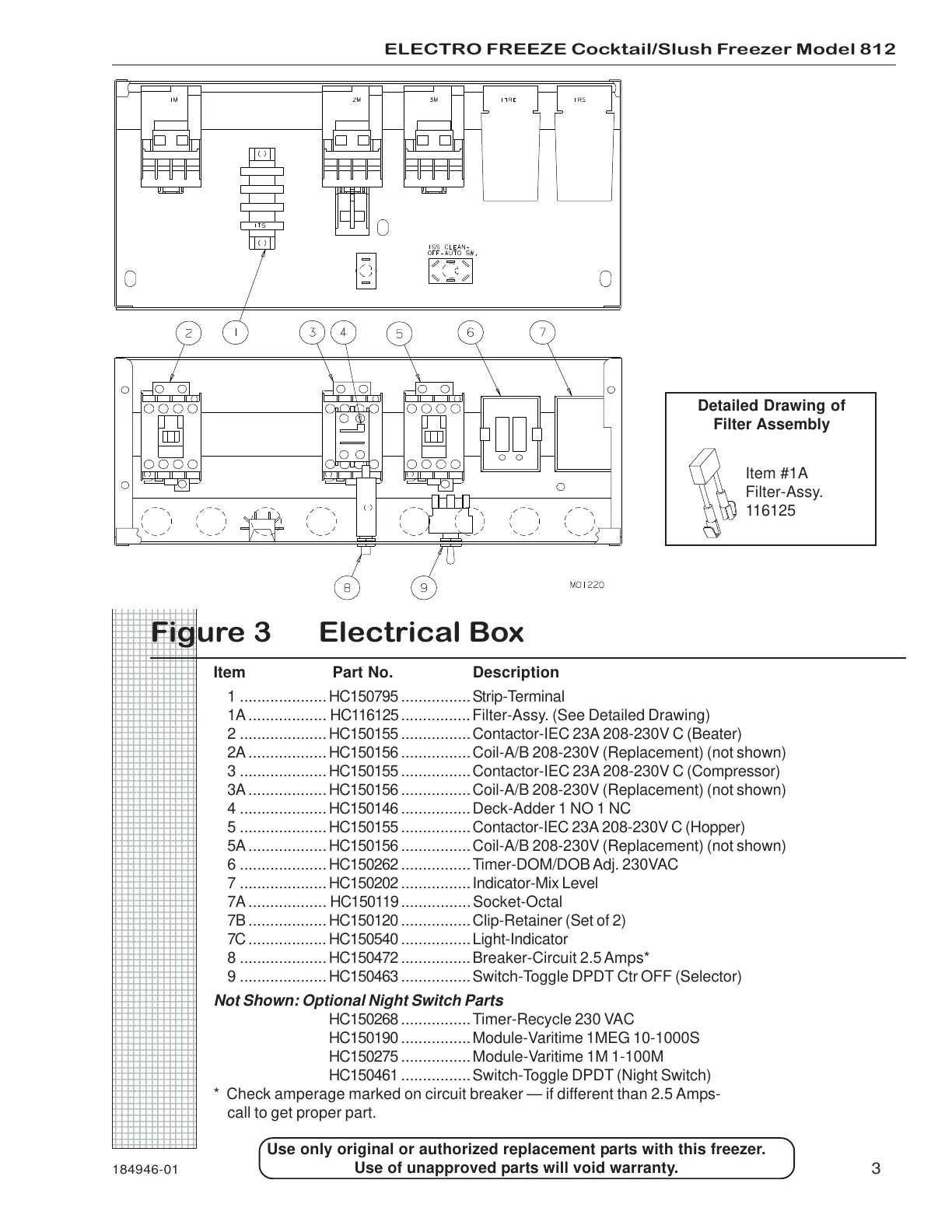

Figure 3 Electrical Box

Item Part No. Description

1 ....................HC150795 ................Strip-Terminal

1A.................. HC116125 ................Filter-Assy. (See Detailed Drawing)

2 ....................HC150155 ................Contactor-IEC 23A 208-230V C (Beater)

2A..................HC150156 ................Coil-A/B 208-230V (Replacement) (not shown)

3 ....................HC150155 ................Contactor-IEC 23A 208-230V C (Compressor)

3A..................HC150156 ................Coil-A/B 208-230V (Replacement) (not shown)

4 ....................HC150146 ................Deck-Adder 1 NO 1 NC

5 ....................HC150155 ................Contactor-IEC 23A 208-230V C (Hopper)

5A..................HC150156 ................Coil-A/B 208-230V (Replacement) (not shown)

6 ....................HC150262 ................Timer-DOM/DOB Adj. 230VAC

7 ....................HC150202 ................Indicator-Mix Level

7A.................. HC150119 ................Socket-Octal

7B..................HC150120 ................Clip-Retainer (Set of 2)

7C..................HC150540 ................Light-Indicator

8 ....................HC150472 ................Breaker-Circuit 2.5 Amps*

9 ....................HC150463 ................Switch-Toggle DPDT Ctr OFF (Selector)

Not Shown: Optional Night Switch Parts

HC150268 ................Timer-Recycle 230 VAC

HC150190 ................Module-Varitime 1MEG 10-1000S

HC150275 ................Module-Varitime 1M 1-100M

HC150461 ................Switch-Toggle DPDT (Night Switch)

* Check amperage marked on circuit breaker — if different than 2.5 Amps-

call to get proper part.

Detailed Drawing of

Filter Assembly

Item #1A

Filter-Assy.

116125
