ELECTRO FREEZE Cocktail/Slush Freezer Model 812

184946-01 5

Use only original or authorized replacement parts with this freezer.

Use of unapproved parts will void warranty.

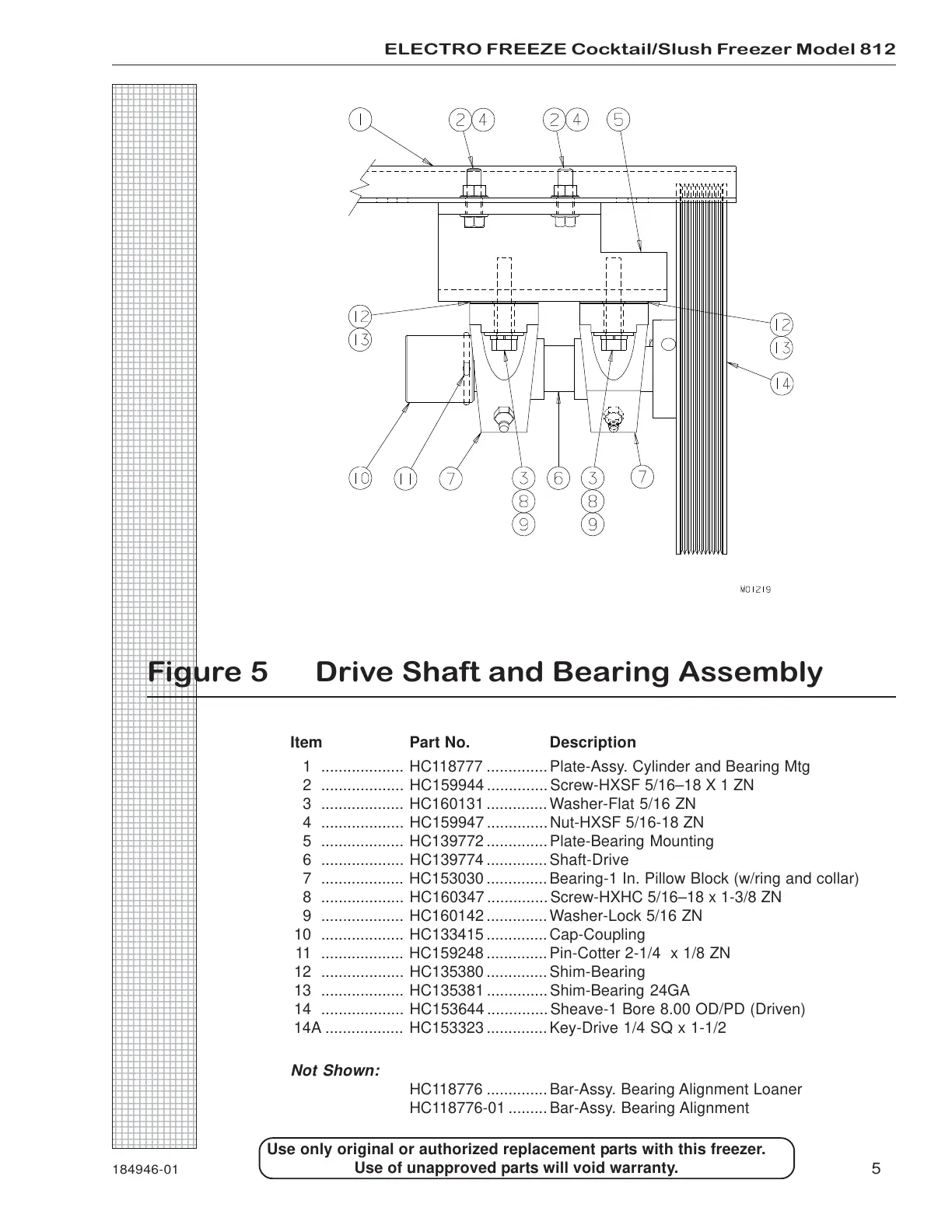

Figure 5 Drive Shaft and Bearing Assembly

Item Part No. Description

1 ................... HC118777 ..............Plate-Assy. Cylinder and Bearing Mtg

2 ................... HC159944 ..............Screw-HXSF 5/16–18 X 1 ZN

3 ................... HC160131 ..............Washer-Flat 5/16 ZN

4 ................... HC159947 ..............Nut-HXSF 5/16-18 ZN

5 ................... HC139772 ..............Plate-Bearing Mounting

6 ................... HC139774..............Shaft-Drive

7 ................... HC153030 ..............Bearing-1 In. Pillow Block (w/ring and collar)

8 ................... HC160347 ..............Screw-HXHC 5/16–18 x 1-3/8 ZN

9 ................... HC160142 ..............Washer-Lock 5/16 ZN

10 ................... HC133415 ..............Cap-Coupling

11 ................... HC159248..............Pin-Cotter 2-1/4 x 1/8 ZN

12 ................... HC135380..............Shim-Bearing

13 ................... HC135381 ..............Shim-Bearing 24GA

14 ................... HC153644 ..............Sheave-1 Bore 8.00 OD/PD (Driven)

14A .................. HC153323 ..............Key-Drive 1/4 SQ x 1-1/2

Not Shown:

HC118776 ..............Bar-Assy. Bearing Alignment Loaner

HC118776-01 .........Bar-Assy. Bearing Alignment
