ELECTRO FREEZE Cocktail/Slush Freezer Model 812

2

184946-01

Use only original or authorized replacement parts with this freezer.

Use of unapproved parts will void warranty.

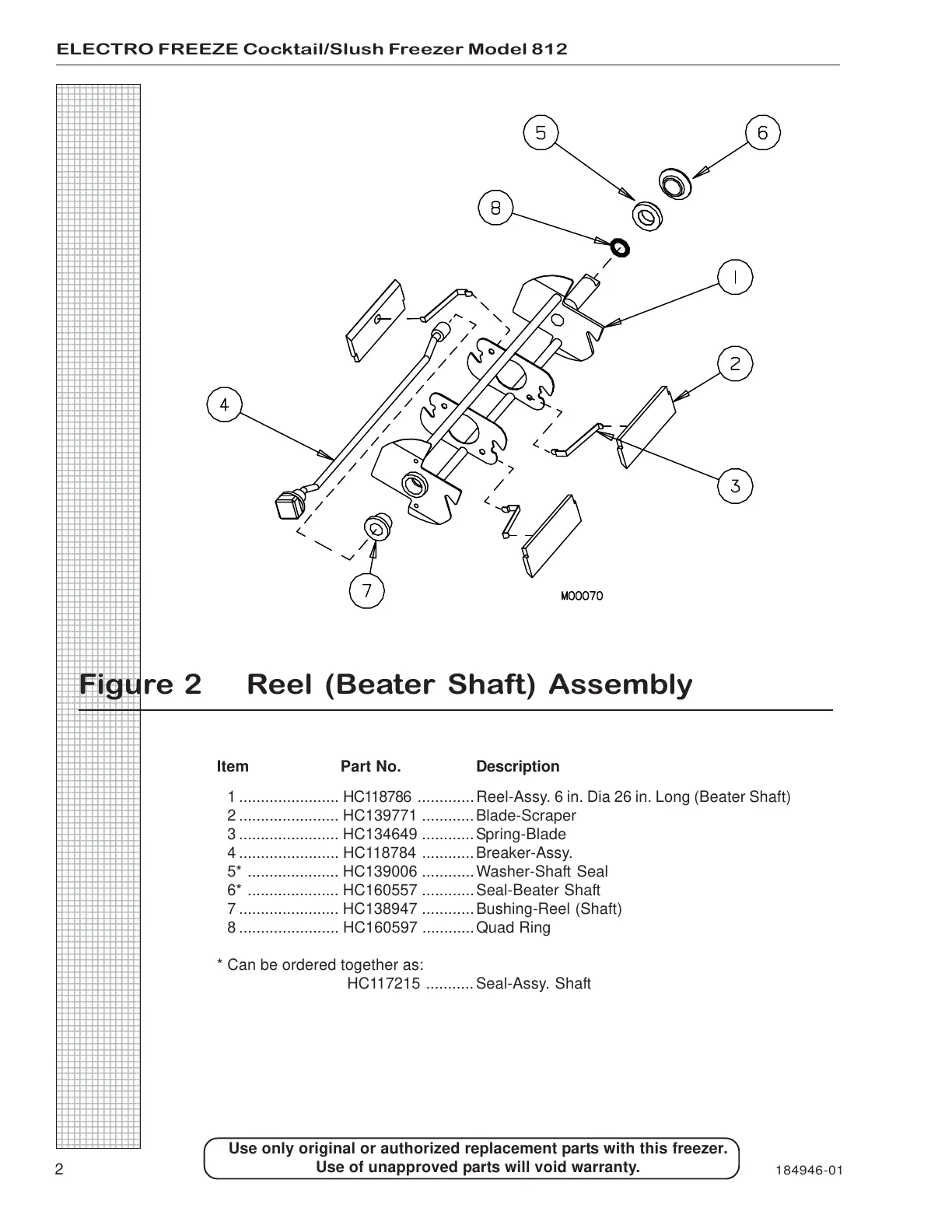

Figure 2 Reel (Beater Shaft) Assembly

Item Part No. Description

1 ....................... HC118786 .............Reel-Assy. 6 in. Dia 26 in. Long (Beater Shaft)

2 ....................... HC139771 ............Blade-Scraper

3 ....................... HC134649 ............Spring-Blade

4 ....................... HC118784 ............Breaker-Assy.

5* ..................... HC139006 ............Washer-Shaft Seal

6* ..................... HC160557 ............Seal-Beater Shaft

7 ....................... HC138947 ............Bushing-Reel (Shaft)

8 ....................... HC160597 ............Quad Ring

* Can be ordered together as:

HC117215 ...........Seal-Assy. Shaft
