ELECTRO FREEZE Cocktail/Slush Freezer Model 812

4

184946-01

Use only original or authorized replacement parts with this freezer.

Use of unapproved parts will void warranty.

Item Part No. Description

1 .................. HC116968................Band-Assy. Motor

2 ..................HC160092................Nut-Cap #10-32 Nylon

3 ..................HC139544................Stud-Adjusting

4 ..................HC134661................Bracket-Spring Torque Control

4A................HC160138................Washer-Flat #10 ZN (Adjusting Screw)

5 ..................HC160344................Nut-Hex #10-32 ZN

6 ..................HC162338................Spring-Extension Torque

7 ..................HC162346................Spring-Adjusting Screw/Stud

8 ..................HC160138................Washer-Flat #10 ZN

9 ..................HC136388................Switch-Torque

10 ..................HC134632................Bracket-Switch Mounting

11 ..................HC136959................Cover-Adjustment Hole (Access)

12 ..................HC160076................Screw-TRPM #10-24 x 1/2 SST (Cover Access)

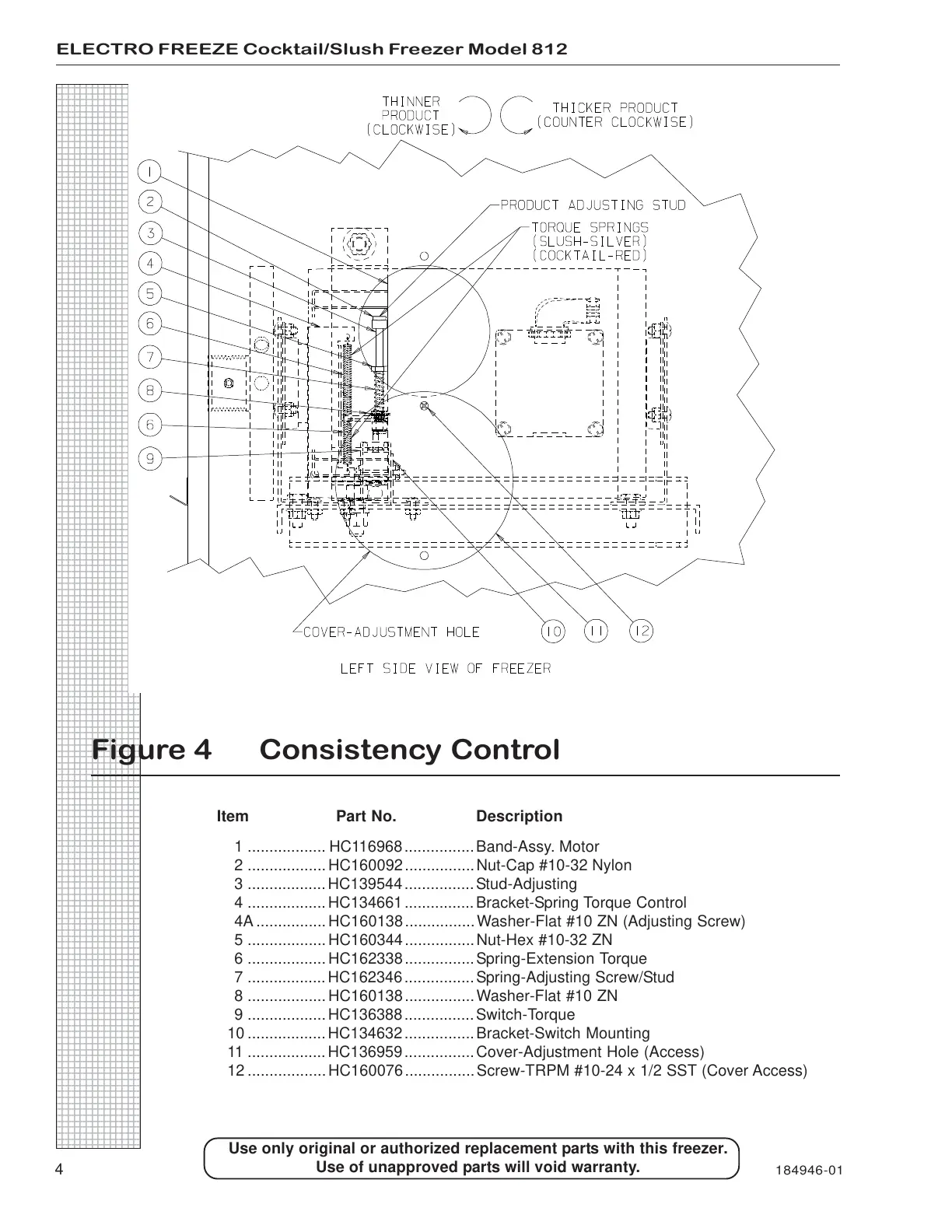

Figure 4 Consistency Control
